Z5045/1 Vertical Drilling Machine With CE Standard

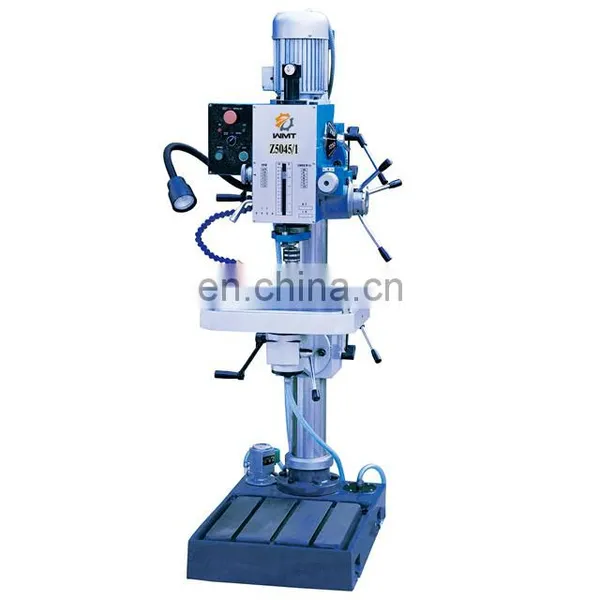

Z5045/1 Vertical Drilling Machine With CE Standard photo-1

Z5045/1 Vertical Drilling Machine With CE Standard photo-2

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Features: 1.Drilling,milling and tapping 2.Headstock and worktable up and down perpendicularly 3.Head swivels 360° horizontally 4.Gear driven,lower noise 5.Positive spindle lock

Specification	Z5045/1
Max.drilling capacity	Φ45mm
Spindle taper	MT3/MT4/R8
Spindle travel	Φ130mm
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250rpm
60Hz	95-1500rpm
Step of spindle auto-feeding	6 steps
Range of spindle auto-feeding amount	0.06-0.30rpm
Min.distance from spindle axis to column	290mm
Max.distance from spindle nose to worktable	725mm
Max.distance from spindle nose to stand table	1125mm
Max.travel of headstock	Φ250mm
Swivel angle of headstock(horizontal/vertical)	360°
Max.travel of worktable bracket	Φ600mm
Worktable size of avaliablity	380×300mm
Swivel angle of table horizontally	360°
Table leaned	±45°
Size of stand worktable of avaliability	417×416mm
Motor Power	0.75kw/1.1kw/1.5kw
Speed of motor	1400rpm
N.W/G.W	440/490kgs
Packing size	1850×750×1000mm
Loading amount/20" container	18pcs

Standrad accessories:

1. Drill chuck 1-13mm/B16; 2. Draw bar; 3. Allen wrenchs; 4. Wedge; 5.Tie rod

Optional accessories:

1.Steel stand and chip tray ; 2.Coolant system;

3. 58pcs clamping kits; 4. Face milling cutter diameter 63mm; 5.Milling chuck(8pcs/set); 6.DRO(2-axis or 3-axis)(for FG and FG-1 serials) ;

7.H/V precision rotary table HV-150mm

8.Table power feed X axis (Except for belt driven type);
