Top Sale Model Z3050/16 Radial Drilling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Top Sale Price X6333 Cheap Vertical Universal Milling MachineNegotiableMOQ: 1 -
Table Milling Machine Manual Universal Bridgeport Milling Machine ZX6350ZA for Metal Milling FunctionNegotiableMOQ: 1
-
ZX7550CW Universal Milling Machine With China Direct Sale PriceNegotiableMOQ: 1
-
XW6036A XW6036B Knee-type Horizontal Universal Milling Machine for SaleNegotiableMOQ: 1
-
LM1450A Bed Type Knee Type Milling Machine With Good RigidNegotiableMOQ: 1
1. Specifiation for Z3050X16
unit |
Z3050x16/1 |
|
worktable : |
||
Dimensions of Box Table |
mm |
630x500x500 |
T slot of box table |
no |
5/22/150 |
Dimensions of Base |
mm |
2400x1000x200 |
Working Surface of Base Plate |
mm |
830X1660 |
T slot of base |
4/28/180 |
|
Max. load of worktable |
kg |
|
machining range : |
||
spindle axis to column |
mm |
350-1600 |
spindle nose to table surface |
mm |
320-1220 |
spindle head travel(horizontal) |
mm |
1250 |
spindle : |
||
Spindle taper |
MT5 |
|
quill travel |
mm |
315 |
Max.drilling diameter |
mm |
50(steel) |
Max.tapping diameter |
mm |
M16*2(steel) M20*2.5(Cast iron) |
spindle Speed Range /steps |
rpm |
25-2000/16setps |
Max.spindle torque |
Nm |
500 |
spindle feed/steps |
0.04-3.2/16steps |
|
motor |
||
spindle motor power |
kw |
4 |
elevating motor for Arm |
kw |
1.5 |
coolant pump |
kw |
0.09 |
others |
||
clamping type |
Hydraulic clamping for longitudinal |
|
,vertical and radial movement |
||
overall dimension (L*W*H) |
mm |
2480x1040x2750 |
package dimension (L*W*H) |
mm |
2580x1140x2550 |
N/W/GW |
KG |
3500/3700 |

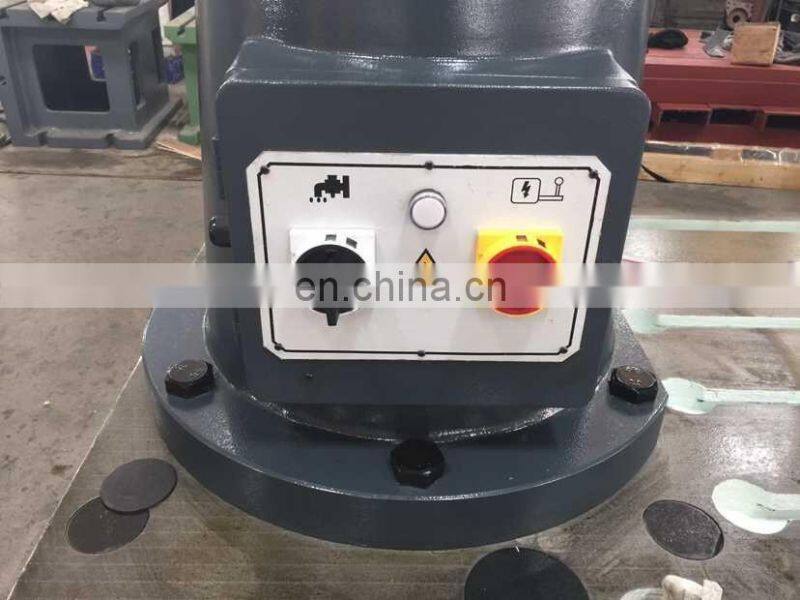

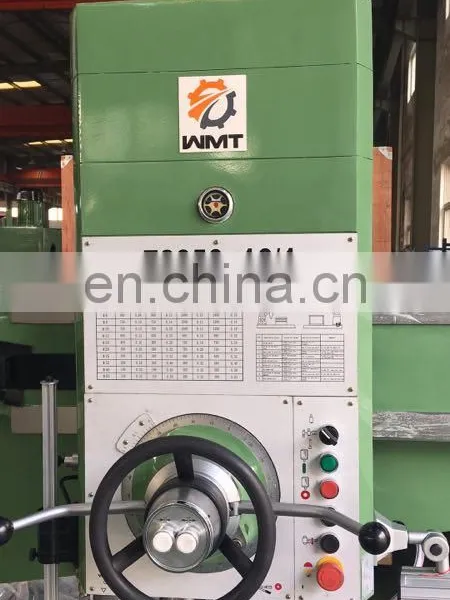

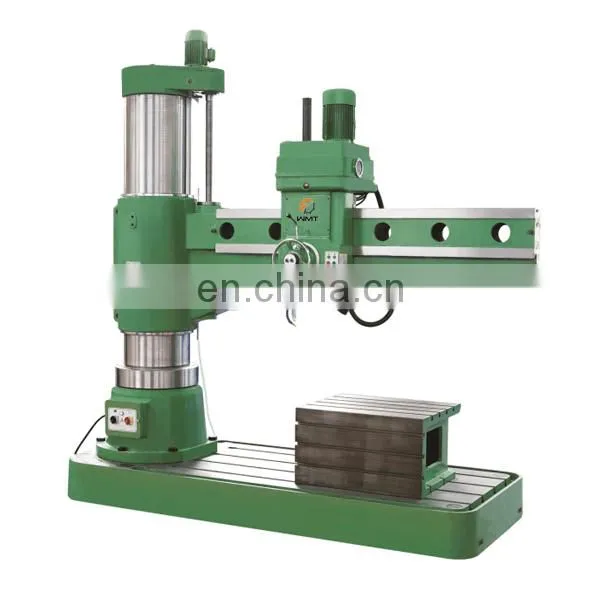

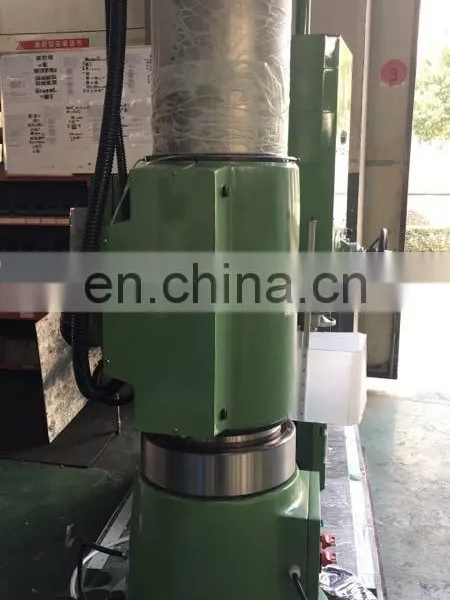

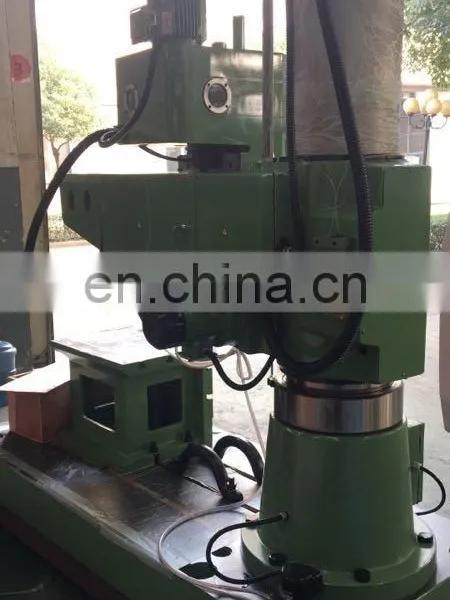

2.Pic. for Z3050X16

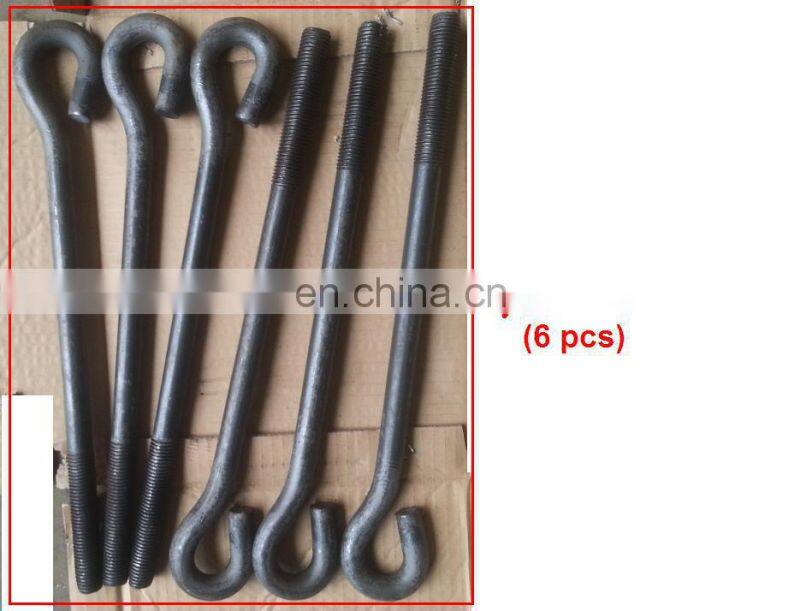

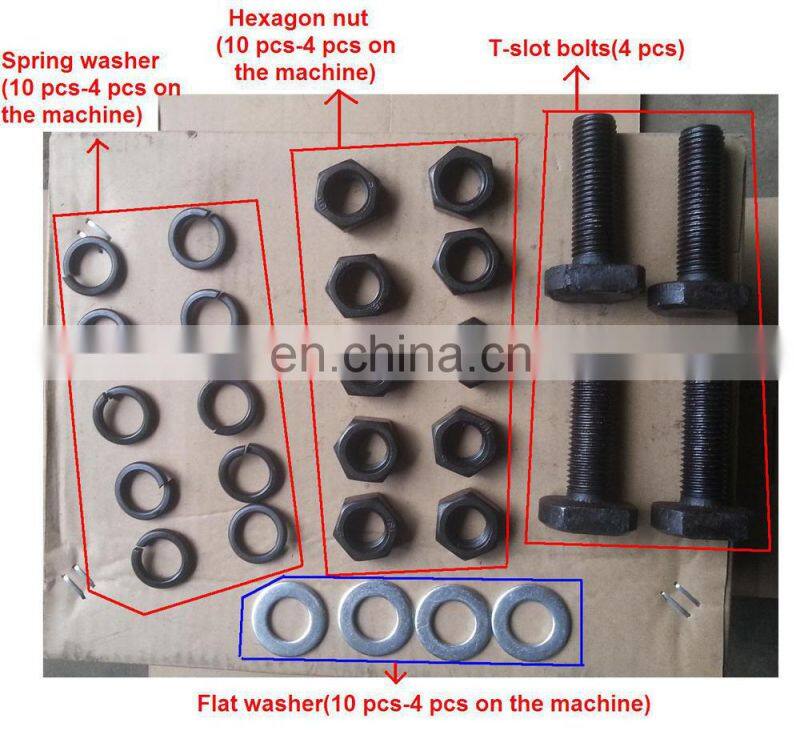

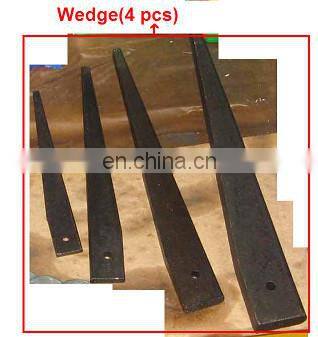

3. You may find the accessories as you like:

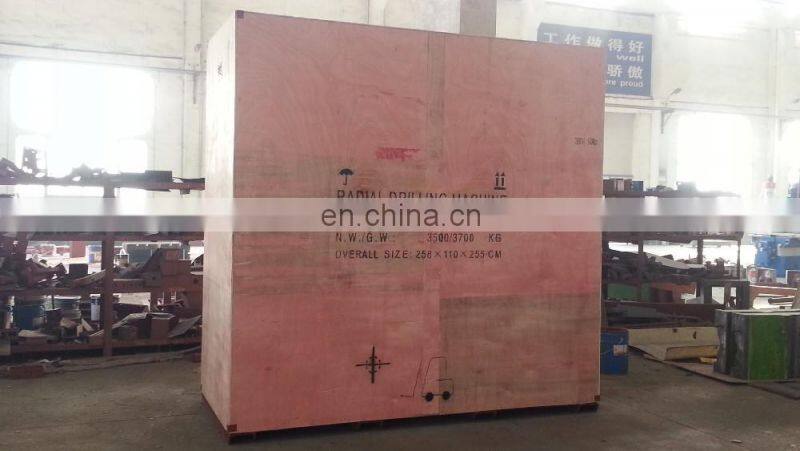

4. Details about package:
