Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > ZAY7020V High Precision Drilling and Milling Machine With Variable Speed

ZAY7020V High Precision Drilling and Milling Machine With Variable Speed

ZAY7020V High Precision Drilling and Milling Machine With Variable Speed thumbnail-3

ZAY7020V High Precision Drilling and Milling Machine With Variable Speed thumbnail-4

ZAY7020V High Precision Drilling and Milling Machine With Variable Speed photo-1

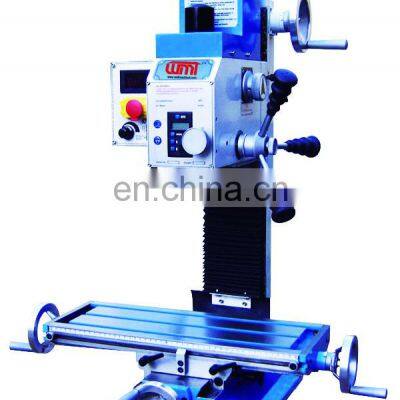

ZAY7020V High Precision Drilling and Milling Machine With Variable Speed photo-2

ZAY7020V High Precision Drilling and Milling Machine With Variable Speed photo-3

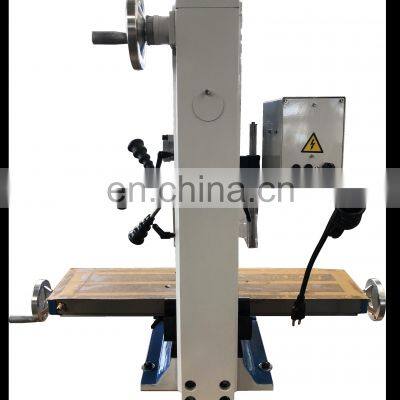

ZAY7020V High Precision Drilling and Milling Machine With Variable Speed photo-4

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Machine Specification

Specification	ZAY7013V	ZAY7020V	ZAY7025V	ZAY7030V
Max. drilling capacity	13mm	20mm	25mm	30mm
Max. face mill capacity	16mm	63mm	80mm	70mm
Max. end mill capacity	30mm	20mm	25mm	30mm
Max. distance spindle to table	300mm	355mm	355mm	370mm
Working table size	460X110mm	500(700) x 180mm	500(700) x 180mm	840X210mm
Swivel angle of headstock	220mm	±45 °	±45 °	±45 °
Spindle taper	300mm	MT2	MT3	MT3
Spindle speed	L: 50-1100rpm H: 120-2500rpm	50-2250rpm	50-3000rpm	100-2500rpm
Sleeve stroke		50mm	50mm	70mm
X-axis travel	300mm	290/490mm	290/490mm	570mm
Y-axis travel	130mm	180mm	180mm	200mm
Z-axis travel	220mm	380mm	360mm	350mm
Motor power	550w/brushless motor	600w	750w	900W
N.W/G.W	65/85kgs	118/138kgs (130/160kgs)	130/158kgs (140/168kgs)	220/260Kgs
Packing size （LxWxH)	620x500x770mm,570x550x850mm	610(810)×560×880 mm	620(770)×720×910mm	870x630x1000mm

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
