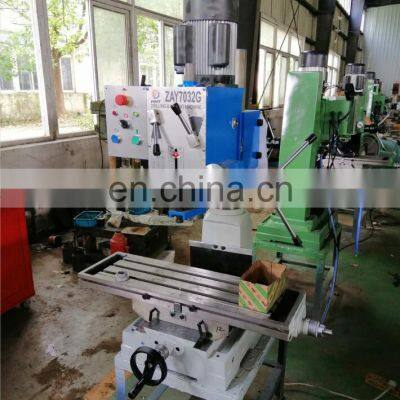

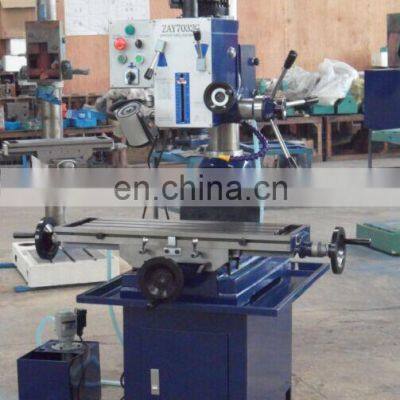

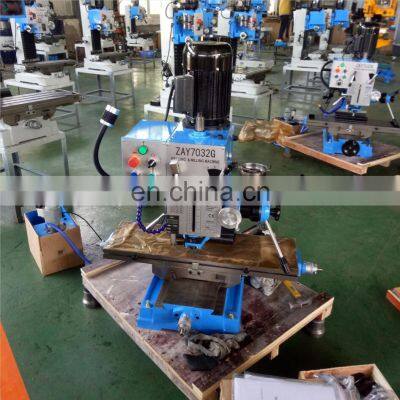

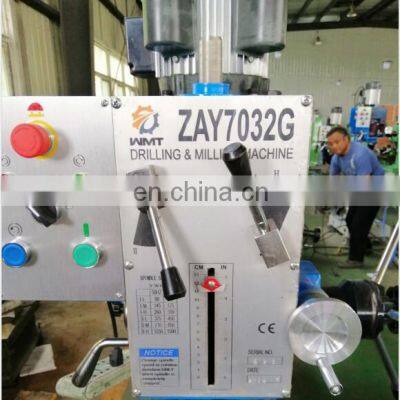

ZAY7032G Gear Head Manual Bench Drilling and Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7045 Belt Head Cheap Drilling and Milling Machine With CENegotiableMOQ: 1 -
2020 Popular Auto Feeding ZAY7045FG/1 Milling and Drilling MachineNegotiableMOQ: 1
-
Hot Sell ZAY7032V 32mm Variable Speed Drilling Milling Machine for MetalNegotiableMOQ: 1
-
ZX45 Square Column Gear-head Mill Machines 45mm Cheap Drilling and Milling MachineNegotiableMOQ: 1
-
ZAY7016V Mini Metal Wood Drilling Milling Machine With CENegotiableMOQ: 1
Drill/Mill Machine ZAY7032G
Milling drilling,tapping boring, reaming.
Head swivels ±90° verticaly.
Spindle micro feed precisely.
Adjustable gibs on table precision.
Accurate position, strong rigidity,powerful cutting.
Gear-driven type and round column.
Head swivels ±90° verticaly.
Spindle micro feed precisely.
Adjustable gibs on table precision.
Accurate position, strong rigidity,powerful cutting.
Gear-driven type and round column.
Specification | ZAY7032G | ZAY7040G | ZAY7045G | ||
Drilling capacity | Φ32mm | Φ40mm | Φ45mm | ||
Face milling capacity | Φ63mm | Φ80mm | Φ80mm | ||
End milling capacity | Φ20mm | Φ32mm | Φ32mm | ||
Distance from spindle nose to table | 440mm(optional 670mm) | ||||
Min.distance from spindle axis to column | 272.5mm | ||||
Spindle travel | 130mm | ||||
Spindle taper | MT3 or R8 | MT4 or R8 | |||
Step of spindle speed | 6 steps | ||||
Range of spindle speed 50Hz | 80-1250 r.p.m | ||||
60Hz | 95-1500 r.p.m | ||||
Swivel angle of headstock (horizontal) | 360° | ||||
(vertical) | ±45° | ||||
Table size | 800×240mm | ||||
Forward and backward travel of table | 175mm | ||||
Left and right travel of table | 500mm | ||||
Motor Power | 1.5kw | 1.1kw | 1.5kw | ||
N.W/G.W | 315/365kgs | 318/368kgs | |||
Packing size | 770×880×1160mm | ||||
Loading amount/20" container | 36pcs | ||||
