Product Description

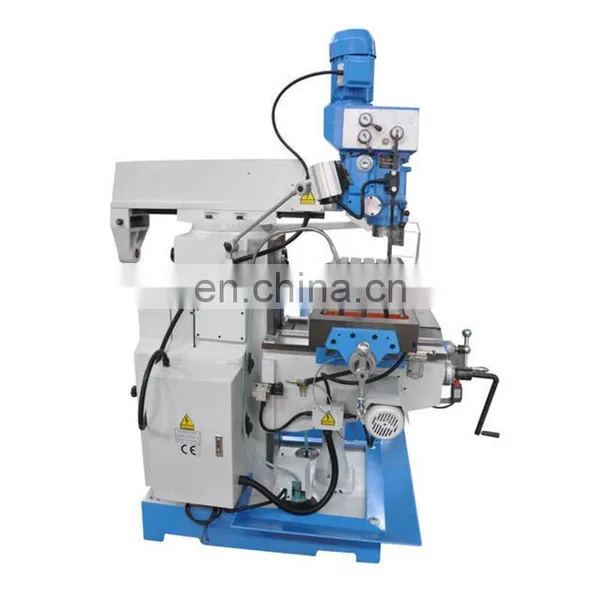

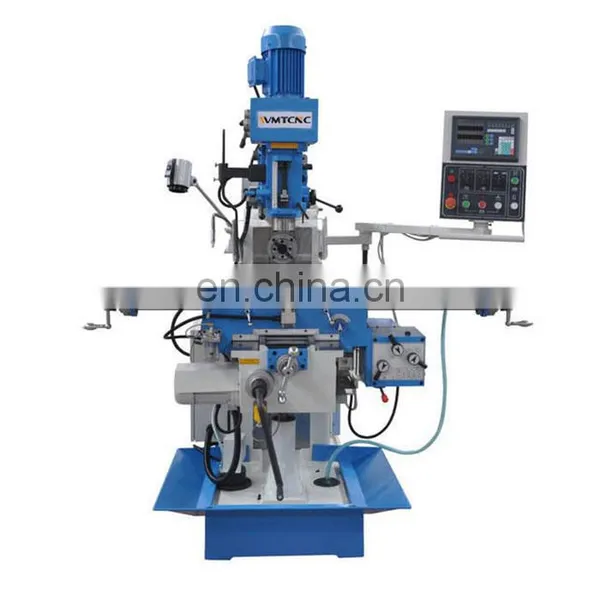

Universal Milling Machine ZX6350ZA Main Features:

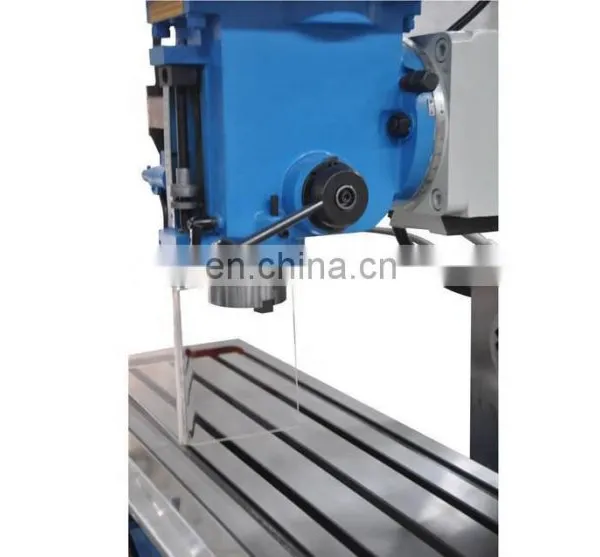

Headstock swivels ±45º;
Hardened bed way.
Difference between ZX6350C, ZX6350Z, ZX6350ZA:
ZX6350C: Spindle manual feeding, X/Y/Z manual feeding;
ZX6350Z: Spindle auto feeding, X/Y/Z manual feeding;
ZX6350ZA: Spindle auto feeding, X/Y/Z auto feeding.
Model |
Unit |
ZX6350ZA |
Spindle taper |
MT4/ISO40 |
|
Distance vertical spindle to table |
mm |
100-500 |
Distance horizontal spindle to table |
mm |
0~400 |
Distance spindle to column |
mm |
240~710 |
Spindle seeds range |
r/min |
(8 steps)90-2000(vertical) |
(12 steps)40-1300(horizontal) |
||
Automatic Feed Series sleeve |
mm |
120(vertical) |
Table size |
mm |
1370×320 |
Table travel |
mm |
800/320/400 |
Distance horizontal spindle to arm |
mm |
175 |
Table feeds range(x/y) |
mm/min |
40-605(8 steps)(max.810) |
T of table (no./width/distance) |
mm |
3/14/70 |
Main motor |
kw |
2.2 |
Motor of table power feed |
w |
1000 |
Coolant pump motor |
w |
40 |
N.W/G.W. |
kg |
1550/1700 |
Overall dimension |
mm |
1700×1480×2150 |

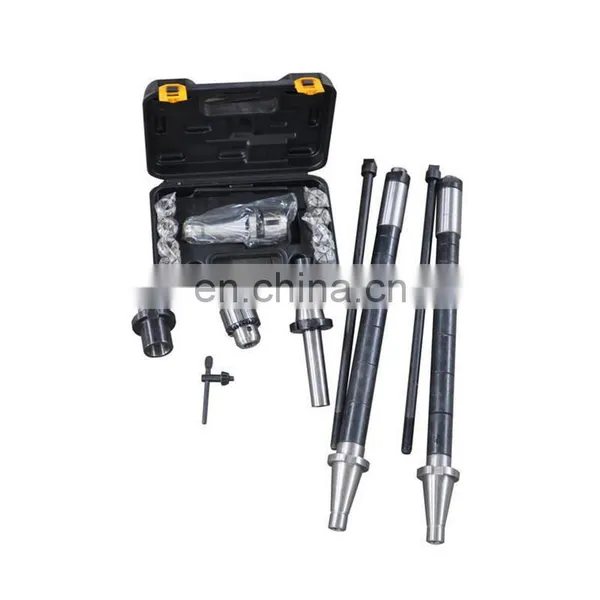

Standard Accessories:
coolant system
milling chuck
working lamp
parallel vise QH160mm
oil tray, wrench, reduction sleeve
horizontal milling bar
drill chuck, draw bar
Optional Accessories

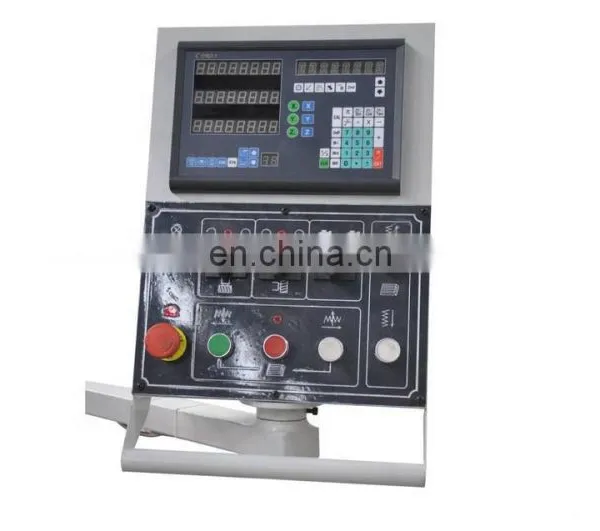

3-axis DRO
58 pcs clamping kit
Dividing head
Rotary table
Spindle protection
