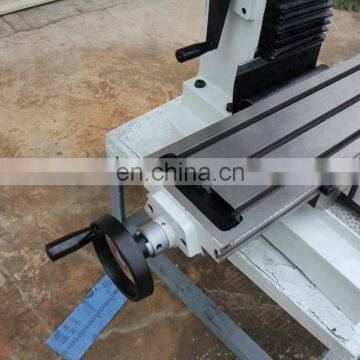

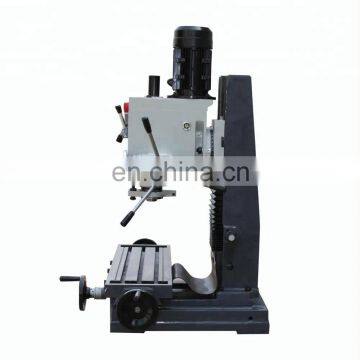

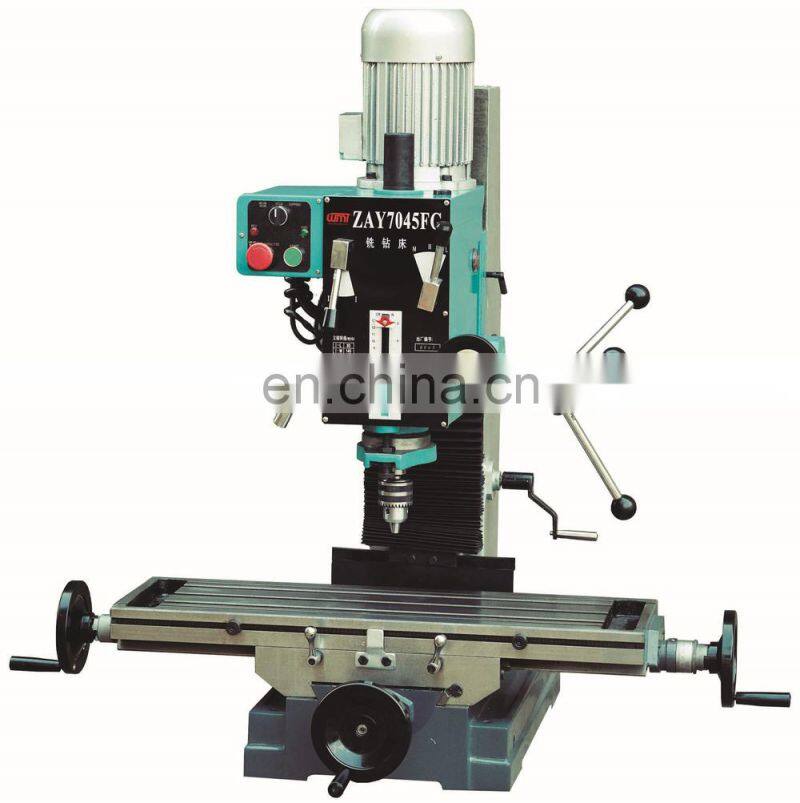

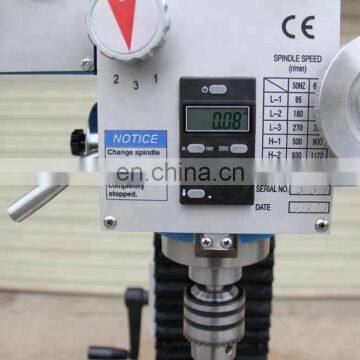

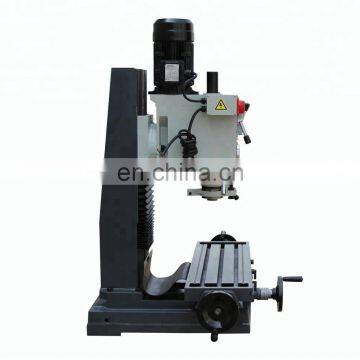

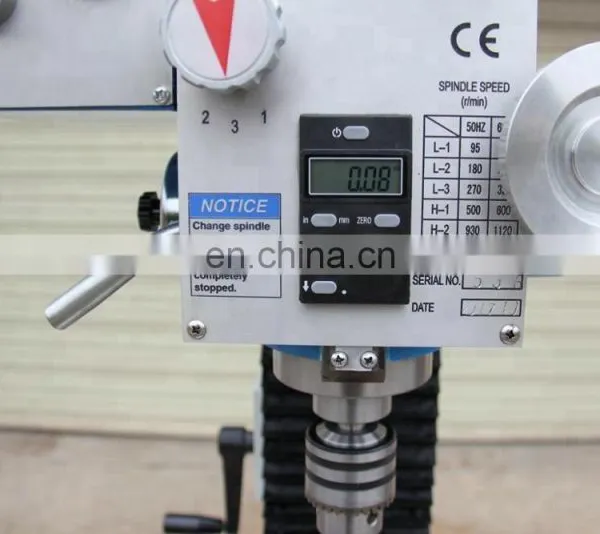

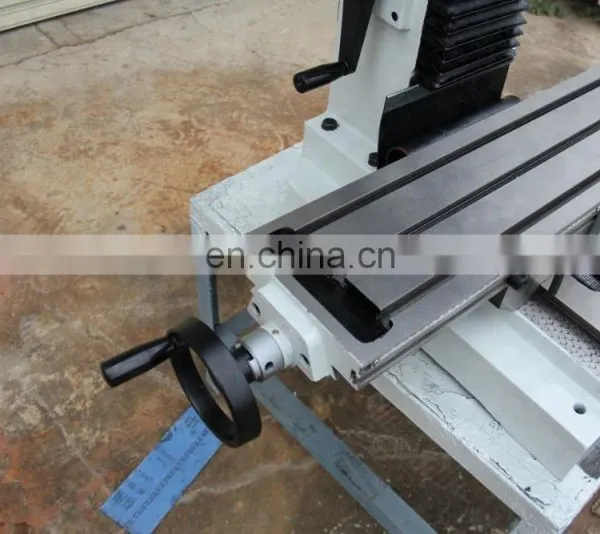

ZX45 Square Column Gear-head Mill Machines 45mm Cheap Drilling and Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7016V Mini Metal Wood Drilling Milling Machine With CENegotiableMOQ: 1 -
Factory Direct Sale Price ZX50C Cheap Drill Mill Machinery Drilling and Milling MachineNegotiableMOQ: 1
-
ZAY7025G Factory Promotion Sale Small Size Home Use Bench Type Drilling and Milling Machine With CENegotiableMOQ: 1
-
Z5040C/1 Spindle Auto-feeding Vertical Drilling Machine With Cross TableNegotiableMOQ: 1
-
Top Sale Model Z3050/16 Radial Drilling MachineNegotiableMOQ: 1
Features:
Milling drilling,tapping boring, reaming
Head swivels ±90° verticaly
Spindle micro feed precisely
Adjustable gibs on table precision.
Accurate position, strong rigidity,powerful cutting
Model |
ZAY7032FG |
ZAY7045FG |
ZAY7045M |
||
Max Face mill capacity |
Φ32mm(1-1/4") |
Φ45mm(1-3/4") |
|||
Max End mill capacity |
Φ63mm(2-1/2") |
Φ80mm(3-1/8") |
|||
End milling capacity |
Φ20mm(3/4") |
Φ32mm(1-1/4") |
|||
Max.distance from spindle nose to table |
450mm(17-3/4") |
450mm(17-3/4") |
420mm(17-3/4") |
||
Min.distance from spindle axis to column |
260mm(10-1/4") |
||||
Spindle travel |
130mm(5-1/8") |
||||
Spindle taper |
MT3 or R8 |
MT4 or R8 |
|||
Step of spindle speed |
6 steps |
||||
Range of spindle speed 50Hz |
80-1250 rpm |
||||
60Hz |
95-1500 rpm |
||||
Swivel angleof headstock(perpendicularly) |
±90° |
||||
Table size |
800mm×240mm(31-1/2"×9-1/2" ) |
||||
Forward and backward travel of table |
175mm(6-7/8") |
||||
Left and right travel of table |
500mm(20") |
||||
Motor Power |
1.5KW |
||||
Net weight/gross weight |
320kg/370kg |
323kg/373kg |
325kg/375kg |
||
Packing size |
880×770×1160mm |
||||
Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies.
One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd.
The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
