HQ400V Combined Lathe Machine With Variable Speed Function.
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HQ400-3A Combined Lathe Machine From China in SaleNegotiableMOQ: 1 -
HQ400 3L Mini Lathe and Milling Machine in SaleNegotiableMOQ: 1
-
HQ400-3L Mini Metal Lathe Machine From China.NegotiableMOQ: 1
-
HQ400-3L Small Metal Lathe Machine From China.NegotiableMOQ: 1
-
HQ400-3A Mini Lathe Mill Drill Combo for Sale From China.NegotiableMOQ: 1
Product Description

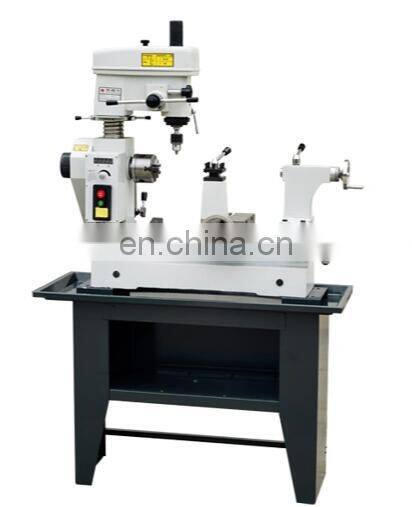

Features of manual lathe machine HQ400V
Metric or Imperial thread cutting
Combination Metal Lathe/Milling/Drilling/Threading
Various functions, small area occupation and economization
A kind of combination machines with turning, milling, drilling and threading
Combination Metal Lathe/Milling/Drilling/Threading
Various functions, small area occupation and economization
A kind of combination machines with turning, milling, drilling and threading
Specifications | HQ400(HQ400/1) | HQ400V(HQ400/1V) | ||
TURNING | Swing over bed | φ420mm | 420mm | |
Distance between centers | 400mm | 400mm | ||
Max. longitudinal travel | 380mm | 380mm | ||
Max. cross travel | 120mm | 120mm | ||
Taper of spindle | M.T.3 | M.T.3 | ||
Spindle hole | φ20mm | φ20mm | ||
Step of spindle speed | 3 | Variable speed | ||
Range of spindle speed | 500,900,1600r.p.m | 0-600 r.p.m,600-1800 r.p.m | ||
Barrel travel | 70mm | 70mm | ||
Taper of center | M.T.3 | M.T.3 | ||
DRILLING & MILLING | Max. drilling capacity | φ15mm | φ15mm | |
Worktable size (L*W) | 200×150mm² | 200×150mm² | ||
Max. end mill capacity | φ20mm | φ20mm | ||
Max. face capacity | φ63mm | φ63mm | ||
Spindle travel | 85mm | 85mm | ||
Headstock travel of up and down | HQ400/1:80mm | HQ400/1V:80mm | ||
Spindle taper | M.T.3 | M.T.3 | ||
Step of spindle speed | 6 | Variable speed | ||
Range of spindle speed | 375-1600r.p.m | 0-660 r.p.m,660-2030 r.p.m | ||
Swivel angle of headstock | ±360° | ±360° | ||
MOTOR | Motor power | 0.55Kw | 1.1Kw | |
SHIPMENT DATA | Packing size | 1030×580×1070mm | 1030×580×1070mm | |
N. weight/G. weight | 155kg/185kg | 155kg/185kg | ||
Loading amount | 44pcs/20’container | 44pcs/20’container | ||
