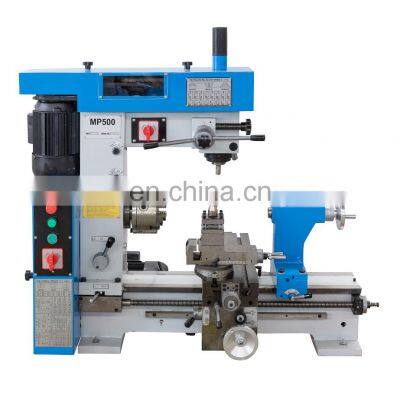

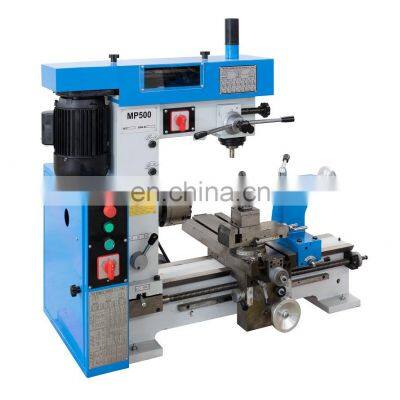

MP500 Combo Lathe Machine With 500 mm Centers Distance for Hobby User
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HQ400V Combined Lathe Machine With Variable Speed Function.NegotiableMOQ: 1 -
HQ400-3A Combined Lathe Machine From China in SaleNegotiableMOQ: 1
-
HQ400 3L Mini Lathe and Milling Machine in SaleNegotiableMOQ: 1
-
HQ400-3L Mini Metal Lathe Machine From China.NegotiableMOQ: 1
-
HQ400-3L Small Metal Lathe Machine From China.NegotiableMOQ: 1
Features:
· Compact, versatile combination machine.
· Adjustable height drill/mill head increase capacity.
· Fine feed handle and clutch for precision milling.
· Headstock provides two step of feeds.
· Spindle is supported by high precision bearing.
· T-slot cross slide.
· Adjustable grids for the slideway.
· Power longitudinal feed allows threading.
· High precision chuck.
Specifications | ||
MODEL | MP500/ MP800(HQ500/HQ800) | |
TURNING | Swing over bed | 420mm(16-5/9") |
Distance between centers | 500mm/ 800mm(20"/31-1/2") | |
Max. longitudinal travel | 440mm/740mm(17-1/3"/29-1/8") | |
Max. cross travel | 200mm(7-7/8") | |
Taper of spindle | MT4 | |
Spindle hole | φ28mm(1-1/9") | |
Step of spindle speed | 7 steps | |
Range of spindle speed | 160-1360rpm | |
Barrel travel | 70mm(2-3/4") | |
Taper of center | MT3 | |
Metric thread range | 0.2-6mm | |
Inch thread range | 4-120T.P.I | |
Longitudinal range of automatic feeding | 0.05-0.35mm/ 0.002-0.014" | |
Cross range of automatic feeding | 0.05-0.35mm/0.002-0.014" | |
DRILLING & MILLING | Max. drilling capacity | φ22mm(7/8") |
Worktable size (L×W) | 475×160mm(18/1-2"×6-2/7) | |
Max. end mill | φ28mm(1-1/9") | |
Max. face mill | φ80mm(3-1/7") | |
Distance between spindle center and column | 285mm(11-2/9") | |
Distance between spindle and worktable | 306mm(12") | |
Headstock travel of up and down | 110mm(4-1/3") | |
Spindle taper | MT3 | |
Step of spindle speed | 16steps | |
Range of spindle speed | 120-3000r.p.m | |
Swivel degree of headstock | ±360° | |
MOTOR | Motor power | 0.55kw |

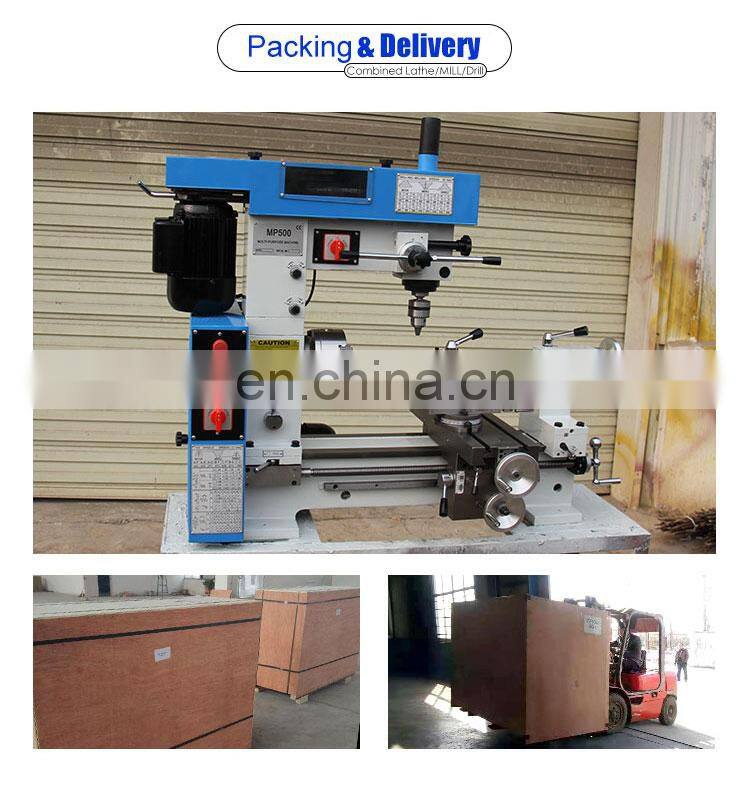

SHIPMENT DATA | Packing size | 1130×580×1100mm |
N. weight/G .weight | 245kg/280kg | |
Loading amount | 40pcs/20’container |
You may like machines as below:

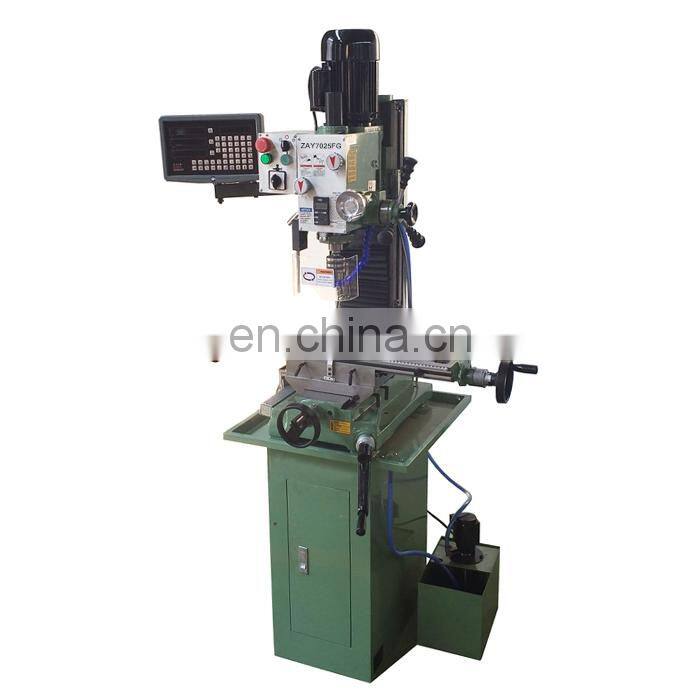

Manual milling machine

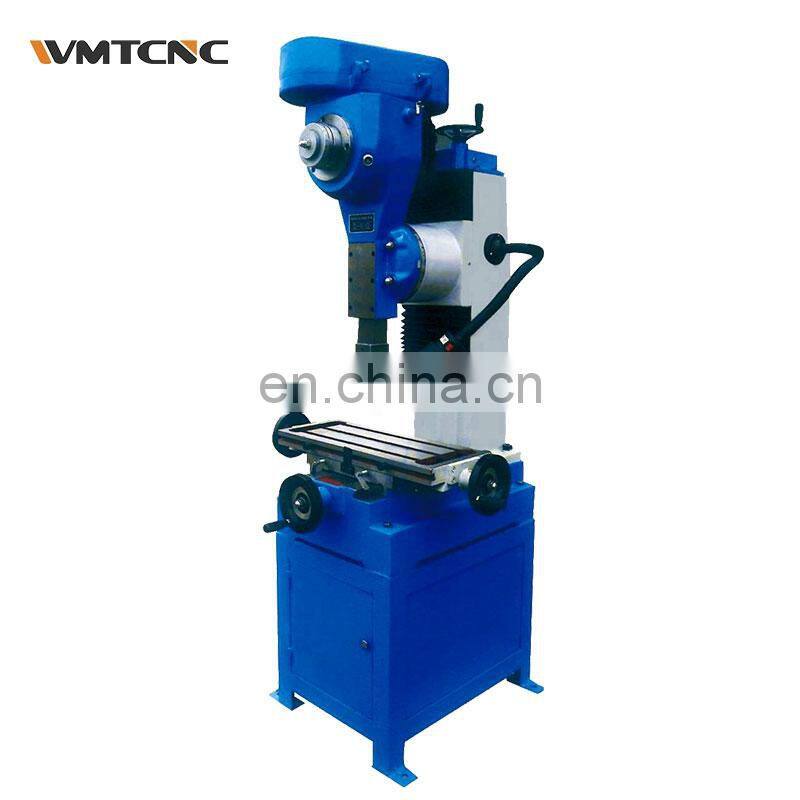

Small slotting machine
