Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > HQ400 3L Mini Lathe and Milling Machine in Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HQ400-3L Mini Metal Lathe Machine From China.NegotiableMOQ: 1 -
HQ400-3L Small Metal Lathe Machine From China.NegotiableMOQ: 1
-
HQ400-3A Mini Lathe Mill Drill Combo for Sale From China.NegotiableMOQ: 1
-
HQ400-3A Metal-working Lathe Mill ComboNegotiableMOQ: 1
-
HQ400-3A Mini Hobby Lathe Machine for Metal CuttingNegotiableMOQ: 1
Product Description

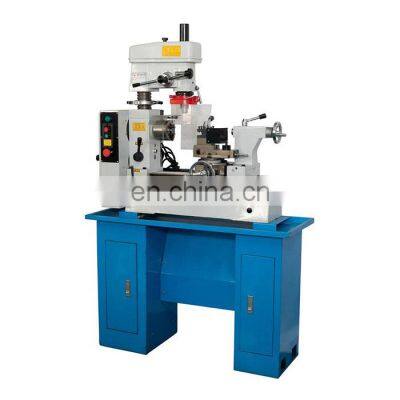

Features of mini lathe and milling machine HQ400-3L
1. A kind of combination machine with turning,milling,drilling and threading.
2. Metric or imperial thread cutting
3. Suitable for processing metal,wood and other material
4. Excellant advantage of various functions,small occupation and economilization
5. Widely used in job-shops,car shops,technical school,factories and family.For machine parts repairing and making,education,training.etc.
2. Metric or imperial thread cutting
3. Suitable for processing metal,wood and other material
4. Excellant advantage of various functions,small occupation and economilization
5. Widely used in job-shops,car shops,technical school,factories and family.For machine parts repairing and making,education,training.etc.
MULTI-PURPOSE MACHINE | HQ400-3A | HQ400-3B | HQ400-3L | |||
LATHE | Swing over bed | 420mm | 420mm | 420mm | ||
Distance between centers | 400mm | 400mm | 500mm | |||
Max. longitudinal travel | 380mm | 380mm | 480mm | |||
Max. cross travel | 120mm | |||||
Taper of spindle | M. T. 3 | |||||
Spindle hole | φ 20mm | |||||
Step of spindle speed | 7 | |||||
Range of spindle speed | 160-1360r. p. m | |||||
Barrel travel | 70mm | |||||
Taper of center | M. T. 3 | |||||
Metric thread range | 0.2-3mm | |||||
Inch thread range | 8-120T. P. I | |||||
Longitudinal range of automatic feeding | 0.05-0.175mm/0.002-0.007 | |||||
DRILLING & MILLING | Max. drilling capacity | φ 15mm | ||||
Worktable size (L*W) | 200× 150mm² | |||||
Max. end mill capacity | φ 20mm | |||||
Max. face capacity | φ 63mm | |||||
Spindle travel | 85mm | |||||
Headstock travel of up and down | 80mm | - | 80mm | |||
Spindle taper | M. T. 3 | |||||
Step of spindle speed | 7 | |||||
Range of spindle speed | 117-1300r. p. m | |||||
Swivel angle of headstock | ± 360° | |||||
MOTOR | Motor power | 0.55Kw | ||||
SHIPMENT DATA | Packing size | 1030× 580× 1070mm | 1132× 580× 1070mm | |||
N. weight/G. weight | 180kg/215kg | 180kg/215kg | 185/226kg | |||
Loading amount | 44pcs/20container | |||||
