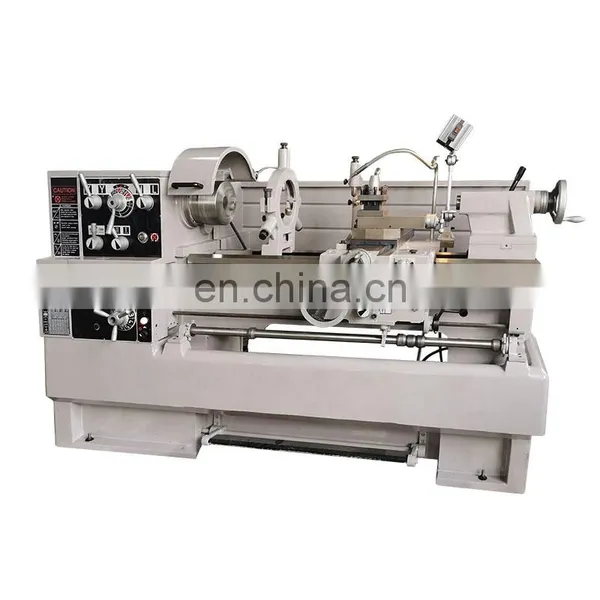

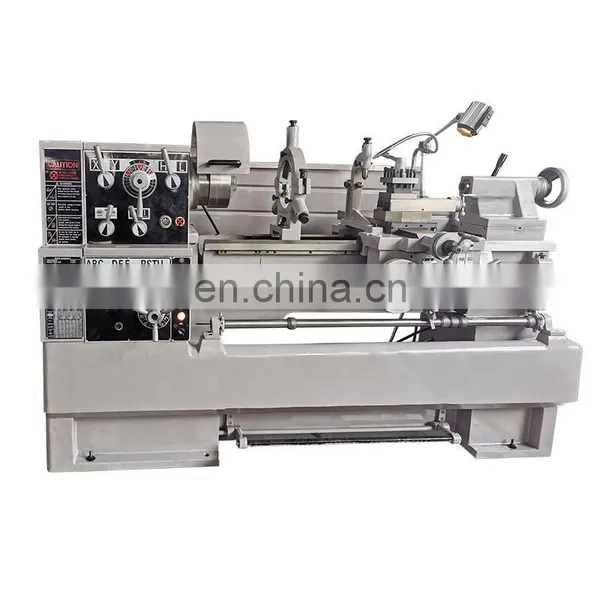

C6246 heavy duty gap bed engine lathe machine for metal working
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Chinese brand WMT bench lathe machine CQ6133 metal lathe with CE and cheap price
-
MP500 combo lathe machine with 500 mm centers distance for hobby user
-
HQ400V combined lathe machine with variable speed function.
-
HQ400-3A combined lathe machine from China in sale
-
HQ400 3L mini lathe and milling machine in sale
-
HQ400-3L mini metal lathe machine from China.
Product Description
C6246 high precision bed horizontal heavy lathe machine with rigid stand
Features:
Lathe machine The spindle system is high in rigidity and accuracy.The design of the main drive is optimized
and the gears in the headstock are precision ground.The noise of the machine is low. There is no need for change gears.
The machine can turn about 200 kinds of metric,Whitworth,module and D.P. threads.
An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece,
which is safe and reliable pedal braking device providing quick and effective stop while operating.
Main Technical Data
Model | C6246 |
Swing over bed | Φ410mm(16") |
Swing over cross slide | Φ220mm(8-13/16") |
Swing in gap | Φ640mm(25-1/8") |
Distance between centers | 1000mm/1500mm/2000mm/3000mm(40"/60"/80"/120") |
Valid length of gap | 165mm(6-1/2") |
Width of bed | 300mm(11-13/16") |
Spindle nose | D1-6 |
Spindle bore | Φ58mm(2-1/4") |
Taper of spindle bore | No.6 Morse |
Range of spindle speed | 12 changes, 25-2000r/min |
Max.travel of top slide | 128mm(5") |
Max.travel of cross slide | 285mm(11-1/4") |
Max.section of tool | 25×25mm(1"×1") |
Pitch thread of leadscrew | 6mm or 4T.P.I. |
Longitudinal feeds range | (42 kinds)0.031-1.7mm/rev(0.0011"-0.0633"/rev) |
Cross feeds range | (42 kinds) 0.014-0.784mm/rev(0.00033"-0.01837"/rev) |
Metric threads range | 41 kinds, 0.1-14mm |
Inch threads range | 60 kinds, 2-112T.P.I. |
Diametrical pitches range | 50 kinds, 4-112DP |
Module pitches range | 34 kinds, 0.1-7MP |
Dia. of tailstock sleeve | Φ60mm(2-5/16") |
Travel of tailstock sleeve | 128mm(5") |
Taper of tailstock sleeve | No.4 Morse |
Power of main motor | 5.5kW(7.5HP) 3PH |
Power of coolant pump | 0.1kW(1/8HP) 3PH |
Overall dimension(L×W×H) cm | 220/275/325×108×137 |
Packing size(L×W×H) cm | 225/280/330×112×162 |
Net weight(kg) | 1670/1920/2070 |
Gross weight(kg) | 1980/2265/2450 |

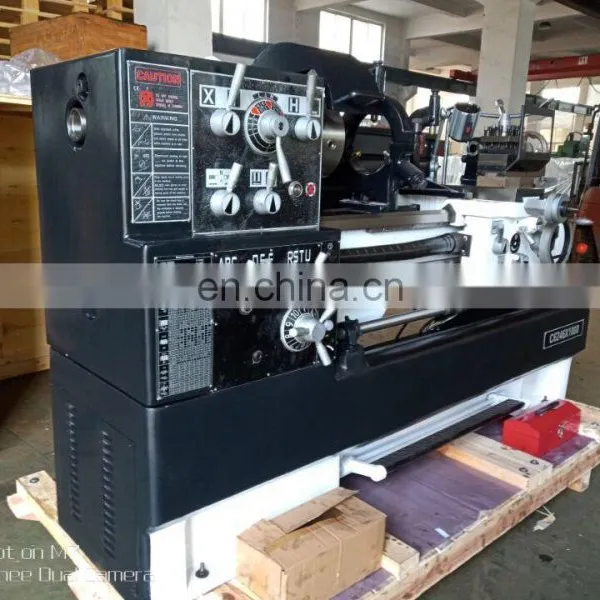

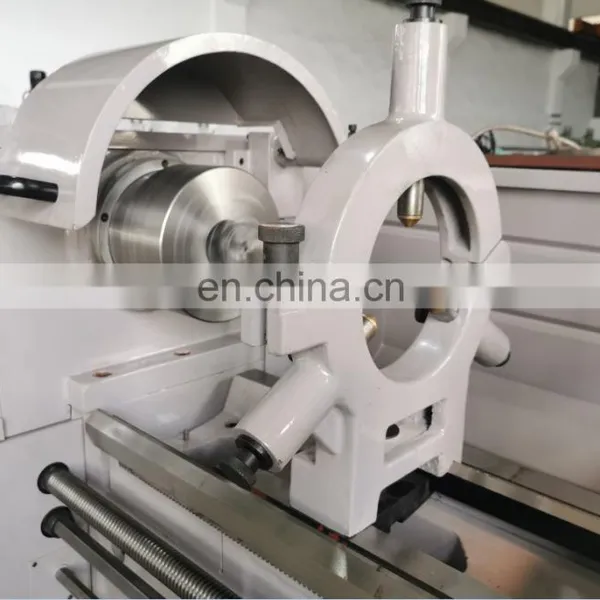

Machine details：
