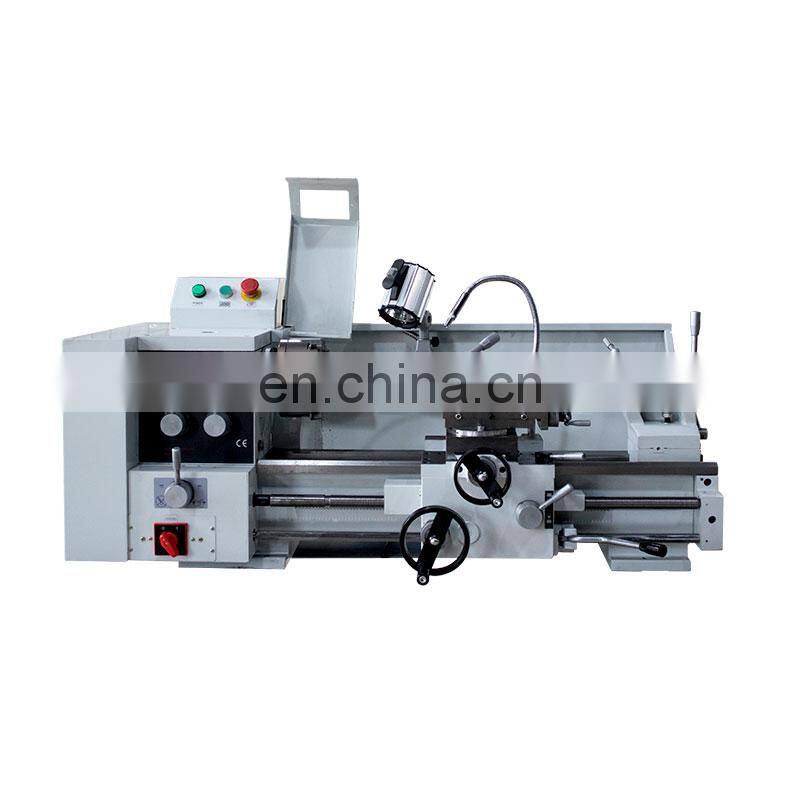

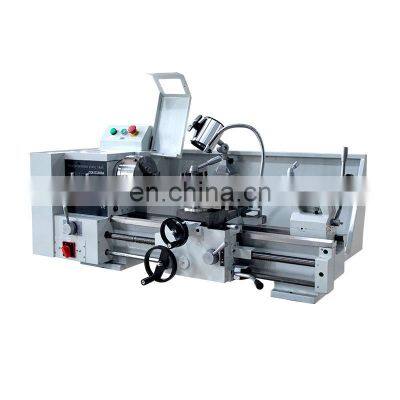

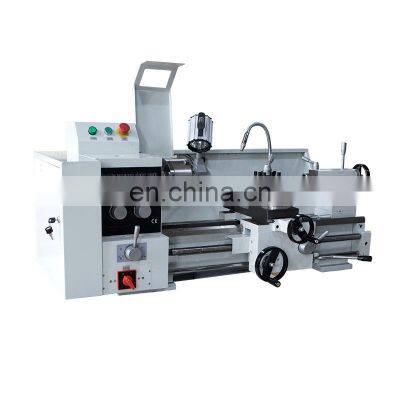

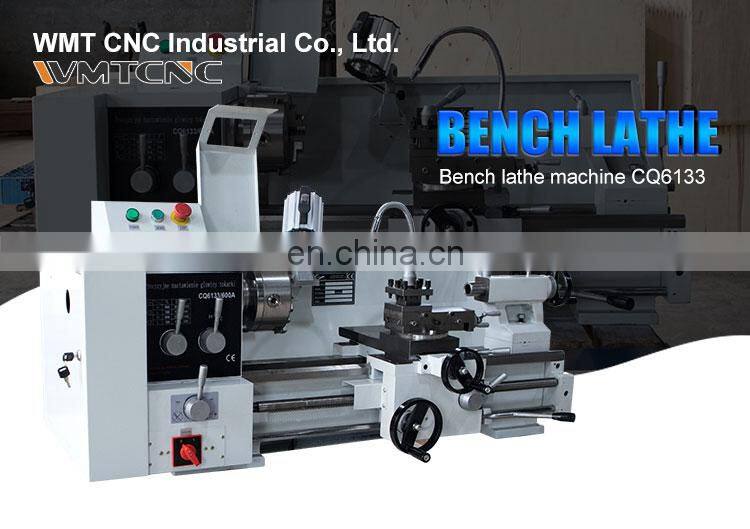

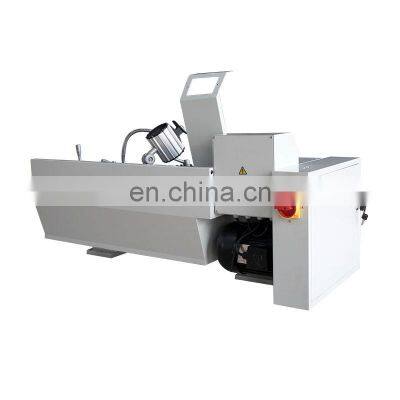

Chinese Brand WMT Bench Lathe Machine CQ6133 Metal Lathe With CE and Cheap Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MP500 Combo Lathe Machine With 500 mm Centers Distance for Hobby UserNegotiableMOQ: 1 -
HQ400V Combined Lathe Machine With Variable Speed Function.NegotiableMOQ: 1
-
HQ400-3A Combined Lathe Machine From China in SaleNegotiableMOQ: 1
-
HQ400 3L Mini Lathe and Milling Machine in SaleNegotiableMOQ: 1
-
HQ400-3L Mini Metal Lathe Machine From China.NegotiableMOQ: 1
Bench Metal Lathe Machine CJM320A For Processing Metal Machinery
Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 60-1600rpm.
6. Two different lengths of bed are available.
7. With or without cabinet according to requirement.
Specification | Model CQ6133 |
Max. swiming over bed | 320mm |
Max. swing over cross slide | 220mm |
Max. length of work piece | 500/750mm |
Spindle Bore | 38mm |
Spindle Taper | MT5 |
Max. lateral stroke over tool post | 160mm |
Metric pitches | 0.5-4 mm |
Inch pitches | 9-40 T.P.I |
Longitudinal-feed range | 0.135-1.8mm/r |
Max. travel of tailstock sleeve | 70mm |
Tailstock sleeve taper | MT3 |
Spindle speeds range | 60-1650r/min(50hz) |
Motor | 1.1Kw |
NW/GW (without stand) | 320/340Kg |
Packing size (without stand) | 1550*760*720 mm |
Packing size | 1550*760*1370 mm |
Standard Accessories:
· 3-jaw chuck,
· Dead center
· Chasing dial indicator
· Change gears set
· Splash guard
· Oil gun
· Tool box and tools
Optional Accessories:
· 4-jaw chuck
· Machine stand
· Face plate
· Steady rest
· Follow rest
· Live center· Toolpost cover
· Chuck guard
· Leadscrew guard

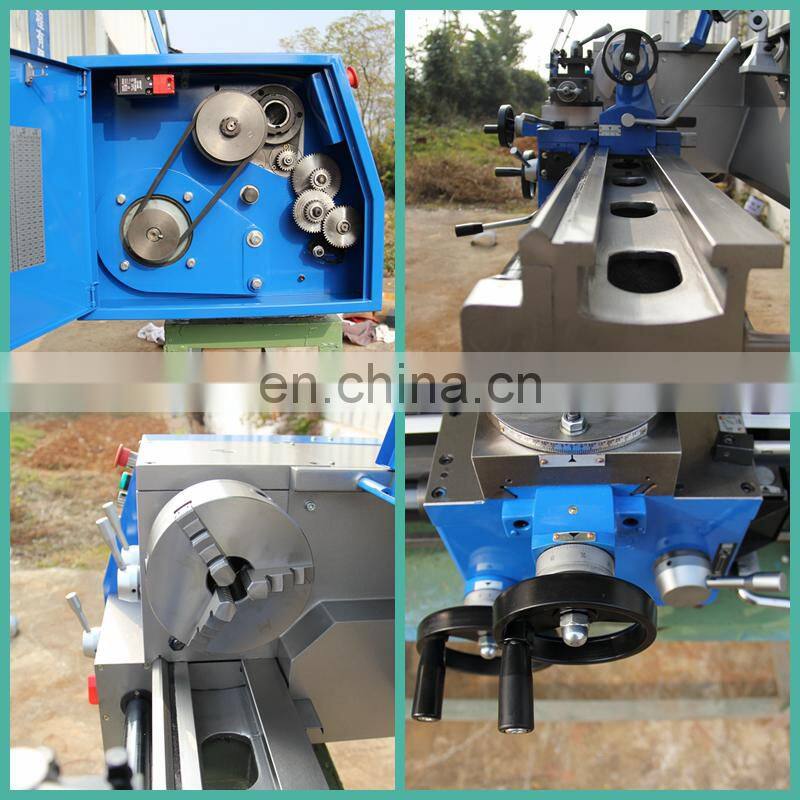

Details:
