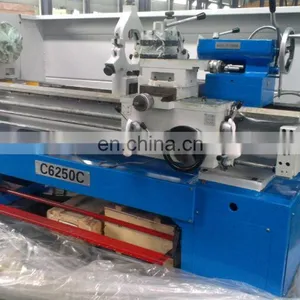

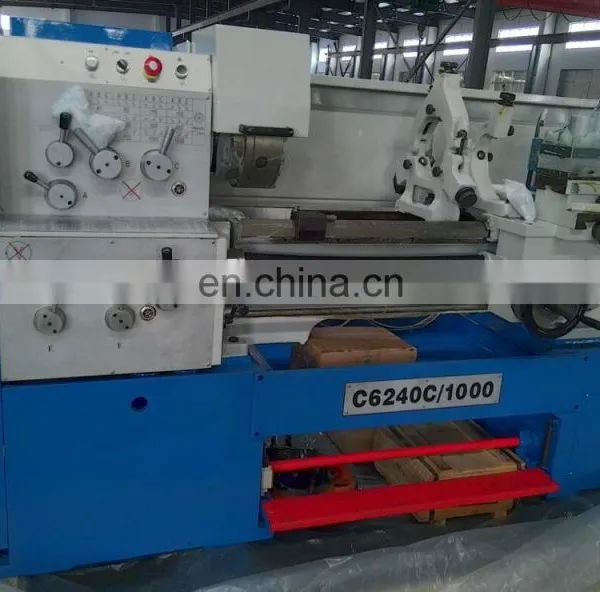

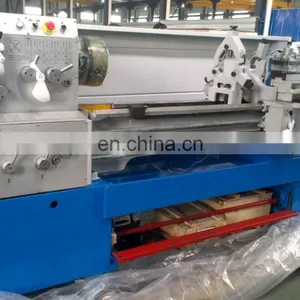

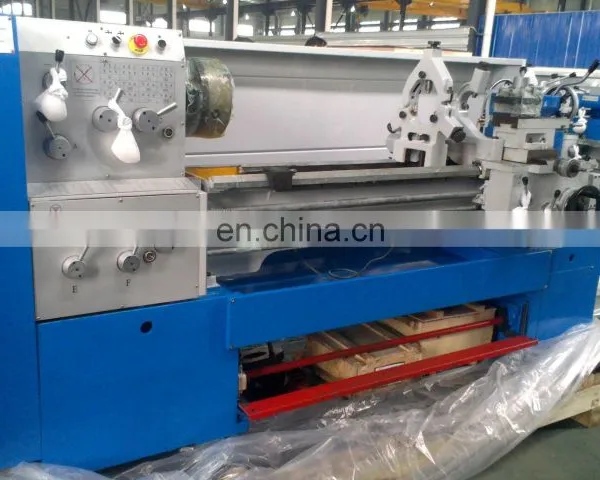

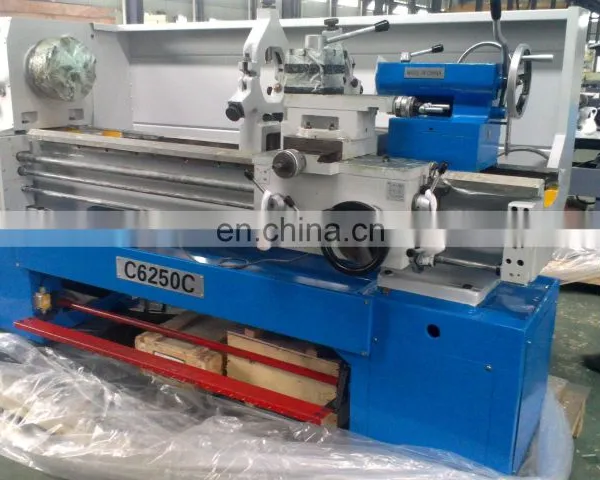

1500mm C6260C Universal Precision Lathe Machine Heavy Duty
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CJM280A 26MM Spindle Bore China Factory Directly Sale Manual Lathe Machine for Metal-cuttingNegotiableMOQ: 1 -
MPV210 3 in 1 Lathe Multi Purpose Lathe Machine for Hobby UsersNegotiableMOQ: 1
-
CW61125Q Heavy Horizontal Lathe Machine for Metal CuttingNegotiableMOQ: 1
-
CW6280B Conventional Horizontal Heavy Gap Lathe Machine With CENegotiableMOQ: 1
-
CW61180 Conventional Horizontal Heavy Metal Lathe Machine With CENegotiableMOQ: 1
Product Description
C6260C Manual lathe machine Features:
Super voice frequency heated bedways
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Main Technical Data
Specifications |
C6260C |
Max.swing over bed |
600mm |
Max.swing over cross slide |
330mm |
Max.swing over gap |
760mm |
Effective length of gap |
200mm |
Center Distance |
750100015002000mm |
Bed Width |
360mm |
Spindle hole |
52mm |
Spindle nose |
ISO-C6 |
Spindle taper |
MT6 |
Spindle speed(Number) |
(9steps)40-1400rpm |
Longitudinal feeds range |
0.0832-4.66mm/r |
Cross feeds range |
0.048-2.69mm/r |
Metric threads range |
19kinds 0.25-14mm |
Inch threads range |
49kinds 2-40inch |
Moudle threads range |
11kinds 0.5-3.5mπ |
Max.travel of top slide |
95mm |
Max.travel of cross slide |
250mm |
Max.size of toolshank |
20*20mm2 |
Dia.of tailstock sleeve |
65mm |
Taper of tailstock sleeve |
MT4 |
Max.travel of tailstock |
140mm |
Main drive motor |
7.5KW |
Coolant pump motor |
125W |
Center Distance(750mm) |
225*115*175cm |
Center Distance(1000mm) |
245*115*175cm |
Center Distance(1500mm) |
295*115*175cm |
Center Distance(2000mm) |
345*115*175cm |
Center Distance(750mm) |
1600/2000kg |
Center Distance(1000mm) |
1700/2100kg |
Center Distance(1500mm) |
1900/2300kg |
Center Distance(2000mm) |
2050/2450kg |
Products Show
Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
