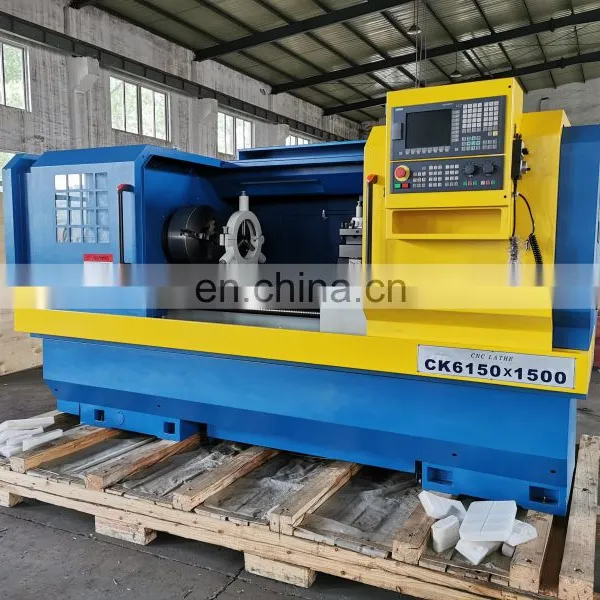

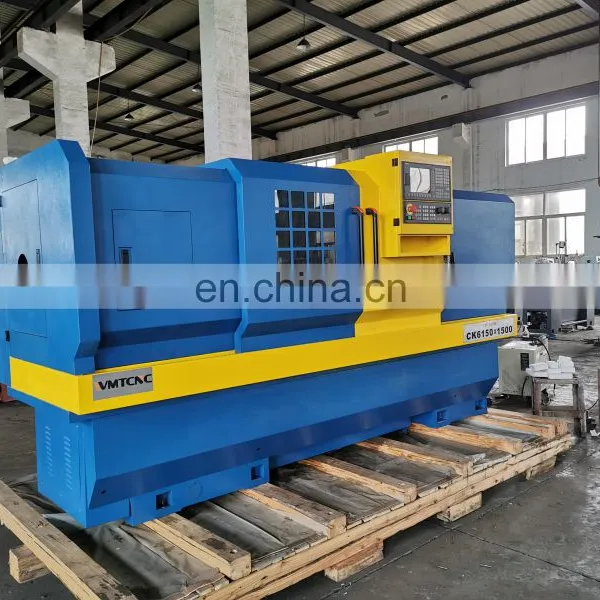

Parallel Lathe CK6150 X750 Length Torno CNC for Threads Making
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Parallel Lathe CK6432 Automatic CNC Lathe Machine With Good Price and CENegotiableMOQ: 1 -
Wmtcnc Mini Cnc Lathe Machine Metal YCK-6150L Lathe Machine for MetalNegotiableMOQ: 1
-
New Pipe Thread Cutting Machine QK1327 Cnc Pipe Threading Lathe Machine With Auto FeedNegotiableMOQ: 1
-
Wmt Cnc Lathe Mini Cnc Metal YCK-6150B Lathe Machine for MetalNegotiableMOQ: 1
-
Wmt Cnc Lathe Mini Cnc Metal YCK-6180 Cnc Lathe Machine AutomaticNegotiableMOQ: 1
Product Description
Main Feature for CK6150 CNC Lathe for threads making:
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.
Specification |
CK6150 |
Max.swing over bed |
Ф500mm |
Max.swing over carriage |
Ф280mm |
Max. cutting length |
750/1000/1500mm |
Rail width |
400mm |
Spindle nose |
A2-8 |
Spindle bore |
Ф82mm or Ф86mm;Optional Ф105mm |
Taper of spindle bore |
MT6 |
Chuck size |
10" |
Range of spindle speed |
150-1600rpm or 3 steps:30-150,,10-500,150-1600rpm |
X-axis travel |
330mm |
Z-axis travel |
750/1100/1500mm |
X/Z rapid speed |
5/8m/min |
X/Z screw |
3206/5010 |
Electronic turret |
4 or 6 or 8 |
Max.section of tool |
25x25mm |
Stroke of tailstock sleeve |
150mm |
Diameter/Hole of tailstock sleeve |
Ф75mm/MT4 |
Main motor power |
7.5kw or 11kw |
Coolant pump power |
180w |
Overall dimensions L x W x H |
2100/2420/2860/3320x1600x1830mm |
Packing size L x W x H |
2300/2620/3060/3520x1800x2030mm |
Net weight |
2700/2750/3100/3350kg |
Gross weight |
2600/3000/3450/3650kg |
Detailed Images
Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor

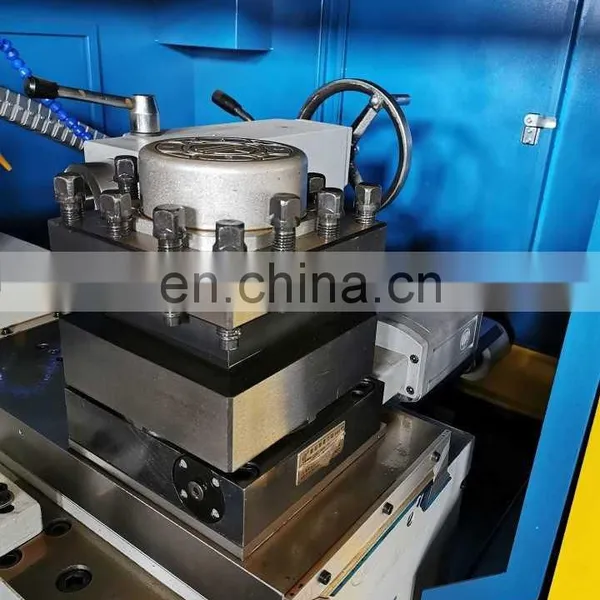

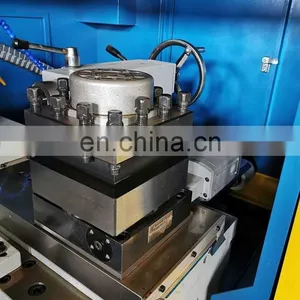

4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck
Optional Accessories:
GSK218M controller
Simens 808D controller
Simens 808D Advance controller
Fanuc Oi TF controller

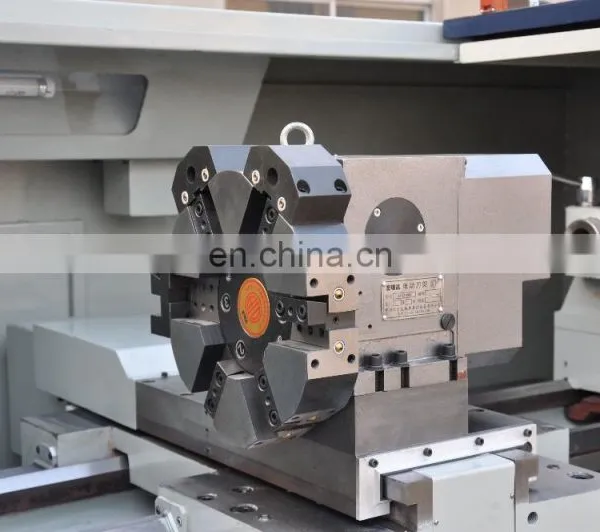

6/8-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)
Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
