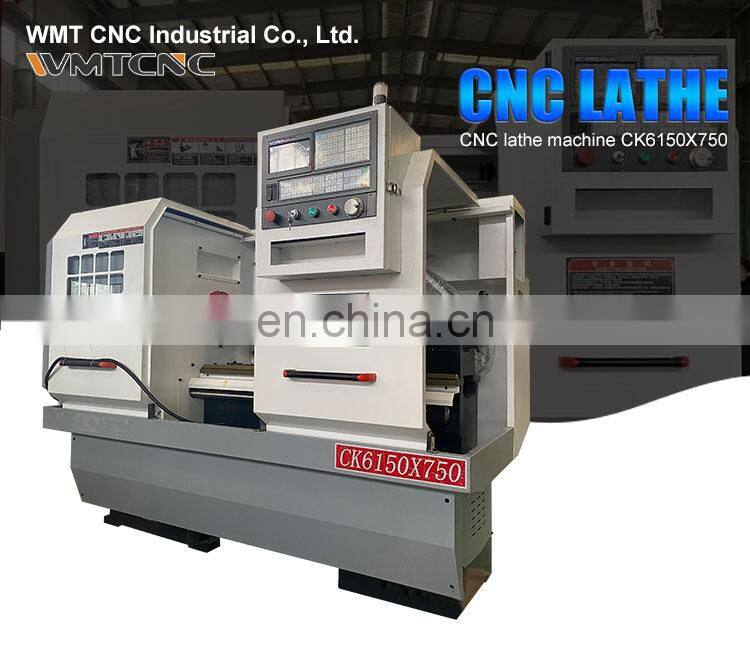

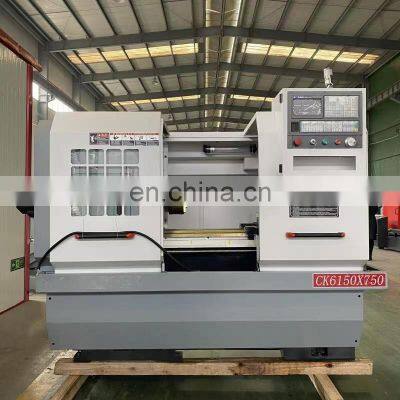

Automatic Flat Bed Metal CNC Lathe CK6150x750 With High Precision
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QK1322 Cnc Pipe Threading Machines for SaleNegotiableMOQ: 1 -
Linear Guideway Type CKL6140 Cnc Flat Bed Lathe Machine With One-piece CastingNegotiableMOQ: 1
-
Multi-function HT36 Flat Bed CNC Lathe Precision Small WorkpieceNegotiableMOQ: 1
-
Vertical Lathe Machine C5120D Heavy Duty Vertical Manual Lathe Machine for Metal ProcessingNegotiableMOQ: 1
-
Vertical Lathe DVT5240 Heavy Duty Vertical Manual Lathe Machine for MetalworkingNegotiableMOQ: 1
Product Description
Features of CNC lathe:
1.Precision ground and hardened bedways.
2.The spindle is supported with precision roller bearings.
3.Head stock gears are made of high quality steel ground and hardened.
metal lathe machine metal lathe horizontal lathe
4.Easy operating speed change levers.
5.Removable gap is provided for larger diameter work.
6.Easy operating gear box has various feeds and thread cutting function.
7.Whole or segregate foot stand for optional.
2.The spindle is supported with precision roller bearings.
3.Head stock gears are made of high quality steel ground and hardened.
metal lathe machine metal lathe horizontal lathe
4.Easy operating speed change levers.
5.Removable gap is provided for larger diameter work.
6.Easy operating gear box has various feeds and thread cutting function.
7.Whole or segregate foot stand for optional.
Specification | CK6150 |
Max.swing over bed | Ф500mm |
Max.swing over carriage | Ф280mm |
Max. cutting length | 750/1100/1500mm |
Rail width | 400mm |
Spindle nose | A2-8 |
Spindle bore | Ф82mm or Ф86mm;Optional Ф105mm |
Taper of spindle bore | MT6 |
Chuck size | 10" |
Range of spindle speed | 150-1600rpm or 3 steps:30-150，,10-500,150-1600rpm |
X-axis travel | 330mm |
Z-axis travel | 750/1100/1500mm |
X/Z rapid speed | 5/8m/min |
X/Z screw | 3206/5010 |
Electronic turret | 4 or 6 or 8 |
Max.section of tool | 25x25mm |
Stroke of tailstock sleeve | 150mm |
Diameter/Hole of tailstock sleeve | Ф75mm/MT4 |
Main motor power | 7.5kw or 11kw |
Coolant pump power | 180w |
Overall dimensions L x W x H | 2100/2420/2860/3320x1600x1830mm |
Packing size L x W x H | 2300/2620/3060/3520x1800x2030mm |
Net weight | 2700/2750/3100/3350kg |
Gross weight | 2600/3000/3450/3650kg |

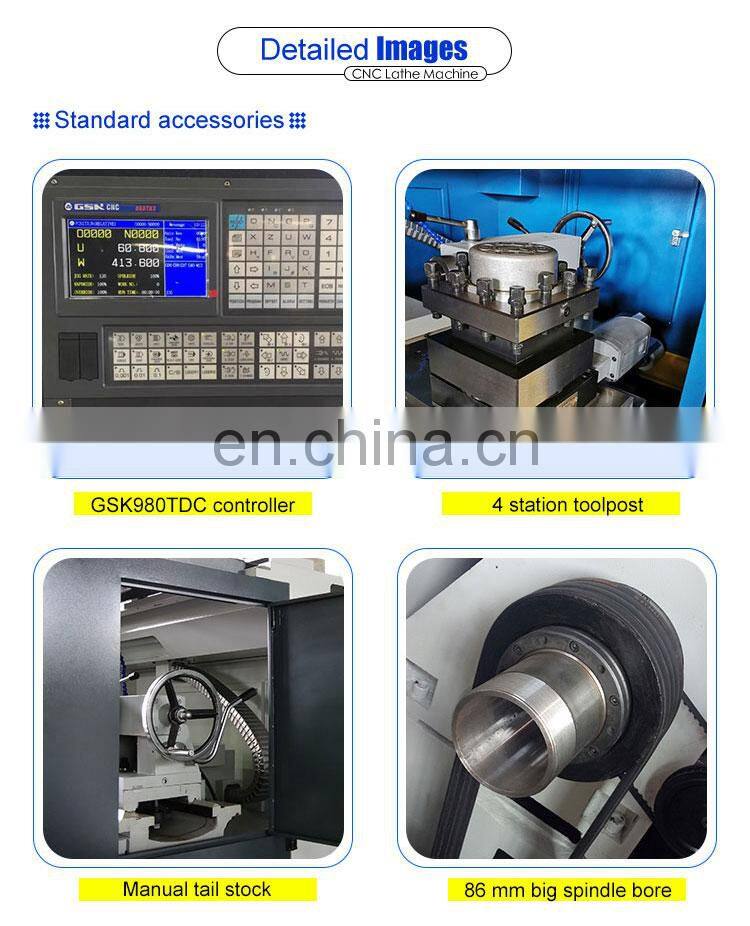

Details Images
Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
Related Products

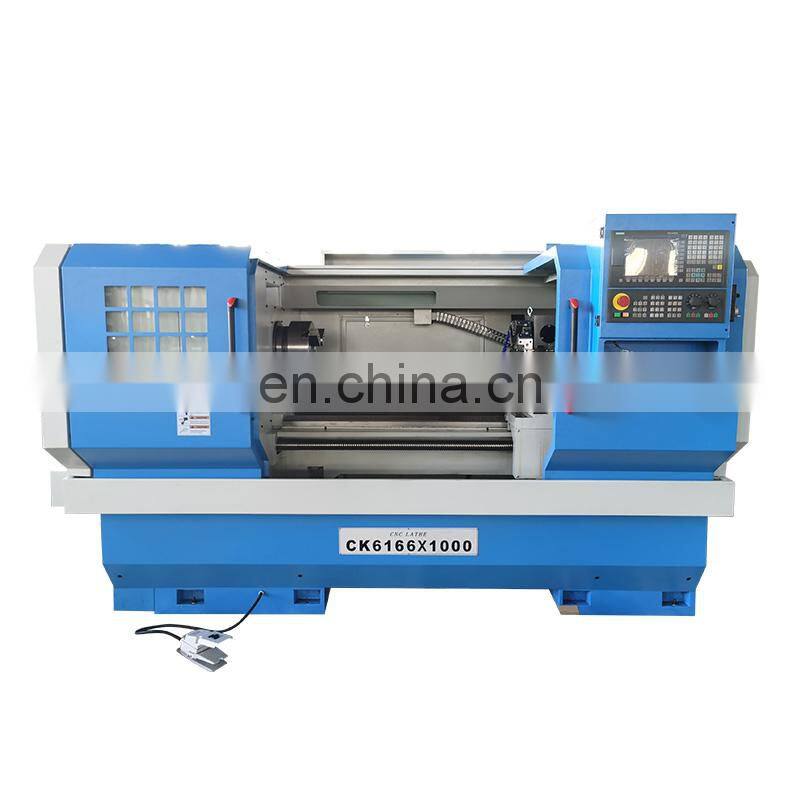

CNC lathe CK6166
