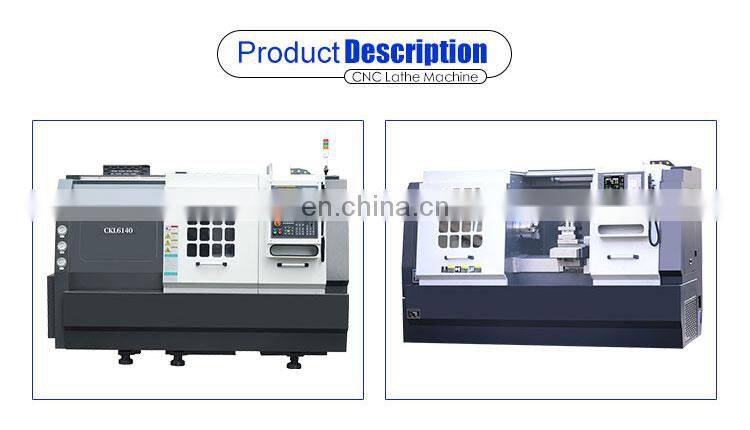

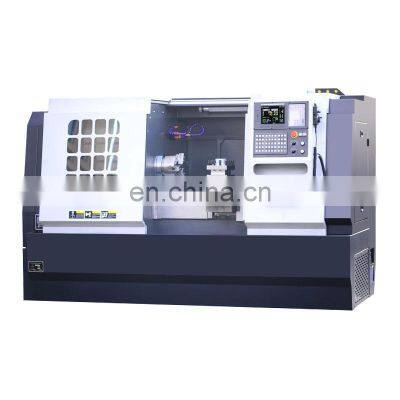

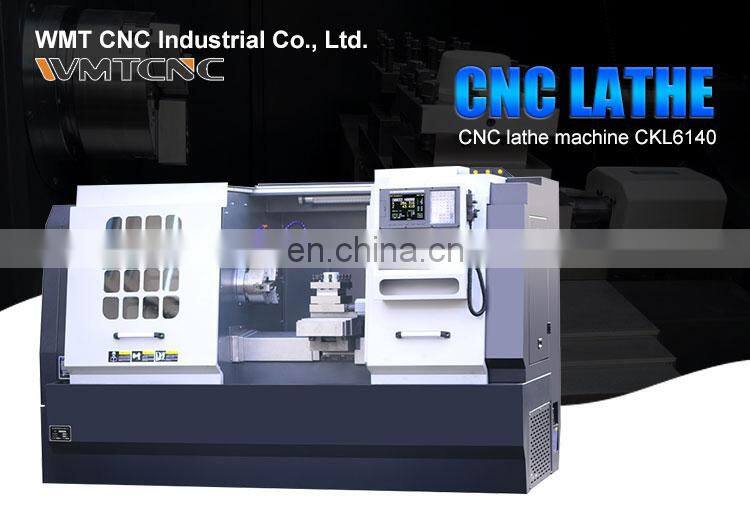

linear guideway type CKL6140 cnc flat bed lathe machine with one-piece casting
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Multi-function HT36 Flat bed CNC lathe precision small workpiece
-
vertical lathe machine C5120D heavy duty vertical manual lathe machine for metal processing
-
vertical lathe DVT5240 heavy duty vertical manual lathe machine for metalworking
-
Siemens 808DA horizontal heavy duty CNC lathe CYK6166x1000 for metal working with CE
-
WMT CNC lathe CK0620A good rigid CNC lathe machine with CE
-
SK50P benchtop cnc lathe machining turning with CE
Product Description
Products Recommend
Product Description
Features:
1. The screw rod is placed in the middle, the machine tool is uniformly stressed, no friction torque, high precision, and long service life.
2. The bed base is cast in one piece, and the bed has a wide span, large carriage and good rigidity.
3. Two-way linear rail, good precision, fast speed and easy maintenance.
4. It can be equipped with 8-station turret and power head, which has a wide range of applications (the turret can be equipped with an optional rear structure, which is convenient to use).
Specification | Unit | CKL6140(*T) | ||||
Capacity | Chuck size | inch | 8" | |||
Max. swing dia. over bed | mm | 400 | ||||
Max. length of workpiece | mm | 650(center) | ||||
500(chuck) | ||||||
450(turret) | ||||||
Max. swing dia. over slide | mm | 220 | ||||
Spindle | Spindle bore | mm | 62 | |||
Max dia. of through hole | mm | 52 | ||||
Spindle nose | A2-6 | |||||
Spindle speed | rpm | 2000 | ||||
*3500 | ||||||
Main motor power | kw | 5.5,*7.5 | ||||
Axis | X/Z travel | mm | 280/650 | |||
X/Z rapid traverse | m/min | 15/15, *20/20 | ||||

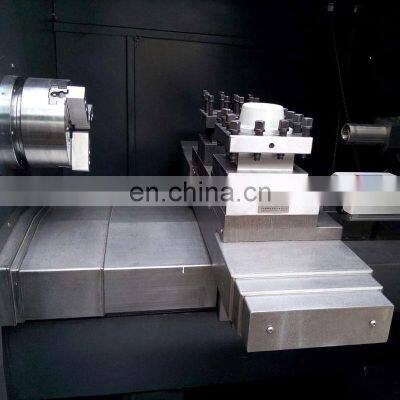

Tool post | Type | 4-station toolpost *8-station turret *gang type tooling | ||||
No. of tool stations | nos | 4+2, *8+2 | ||||
Tailstock | Tailstock type | Manual, *Hydraulic | ||||
Taper of quill | MT | MT4 | ||||
Travel of tailstock quill | mm | 100 | ||||
Structure | Bed type /guideway | mm | Flat/LM | |||
Bed width | 405 | |||||
Others | Power capacity | kVA | 13 | |||
Dimensions (LxWxH) | mm | 2500x1400x1500 | ||||
Weight (about) | kg | 2800 | ||||
Note: "*" means optional, "N/A" means not available, "LM" means linear motion guide way. "*T" means configured with turret and other higher configuration. Dimensions are only list the shortest length model. | ||||||
Details Images

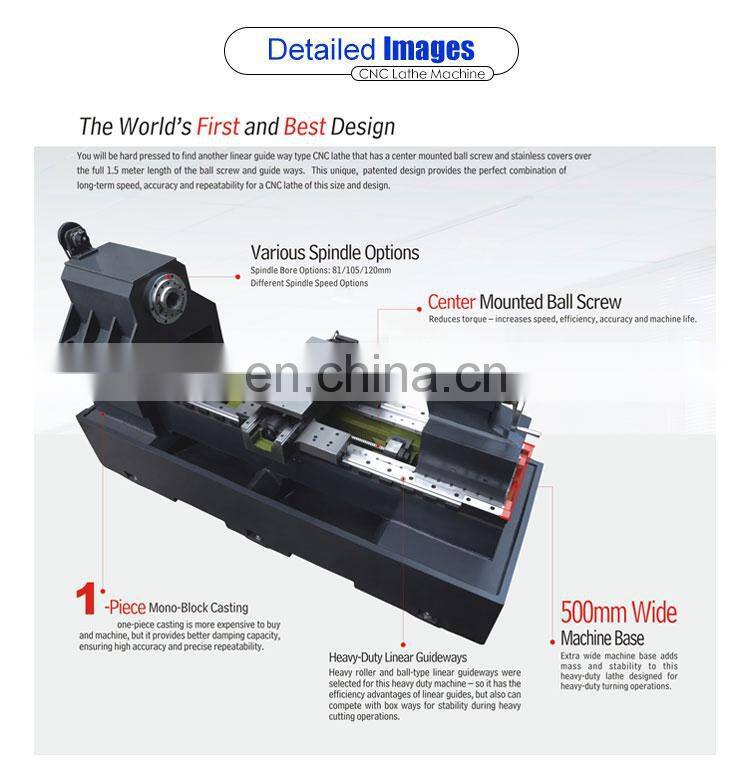

Machine Parts:
1 Various Spindle Options
Spindle Bore Options: 81/105/120mm
Different Spindle Speed Options

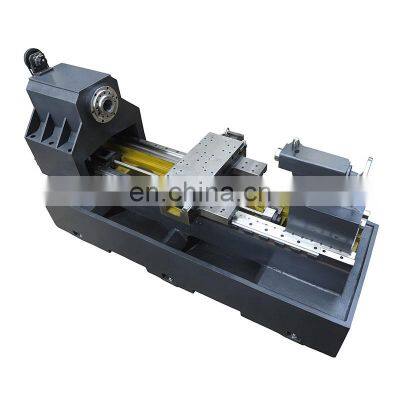

2 Center Mounted Ball Screw
Reduces torque - increases speed, efficiency, accuracy and machine life.
3 Heavy-Duty Linear Guideways
Heavy roller and ball-type linear guideways were selected for this heavy duty machine -so it has the efficiency advantages of linear guides, but also can compete with box ways for stability during heavy cutting operations.
4 500mm Wide Machine Base
Extra wide machine base adds mass and stability to this heavy-duty lathe designed for heavy-duty turning operations.
5 1-piece mono-block casting

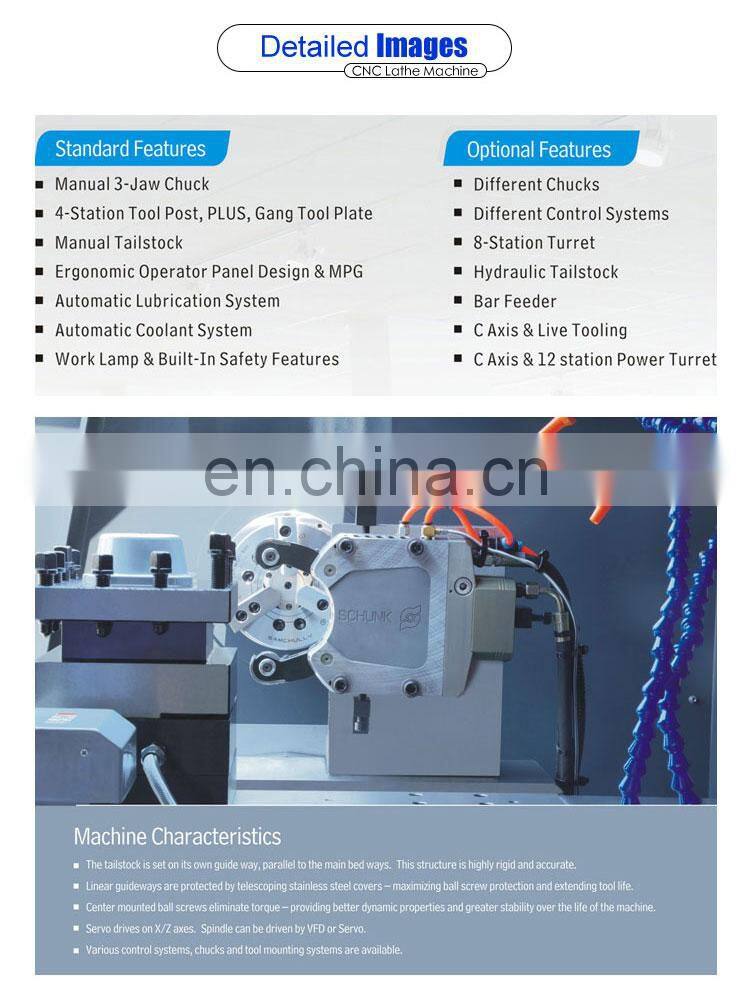

One-piece casting is more expensive to buy and machine, but it provides better damping capacity, ensuring high accuracy and precise repeatability.Standard Accessories | Optional Accessories |
Manual 3-Jaw Chuck | Different Chucks |
4-Station Tool Post, PLUS, Gang Tool Plate | Different Control Systems |
Manual Tailstock | 8-Station Turret |
Ergonomic Operator Panel Design & MPG | Hydraulic Tailstock |
Automatic Lubrication System | Bar Feeder |
Automatic Coolant System | C Axis &Live Tooling |
Work Lamp & Built-In Safety Features | C Axis & 12 station Power Turret |
