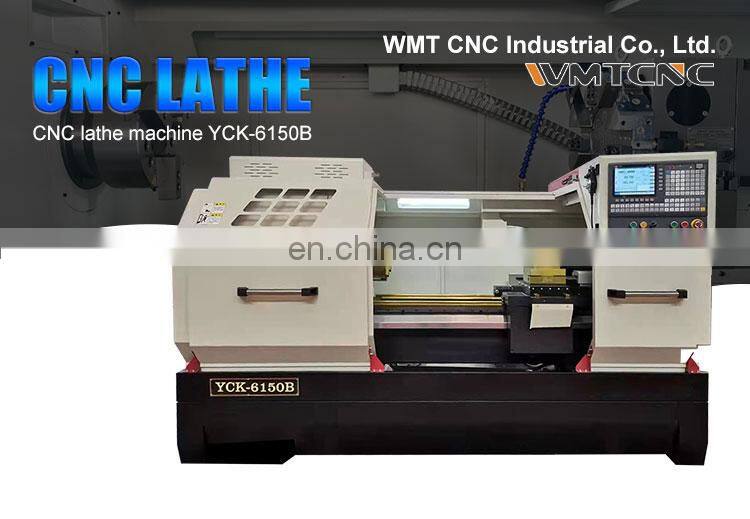

Wmt Cnc Lathe Mini Cnc Metal YCK-6150B Lathe Machine for Metal
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Wmt Cnc Lathe Mini Cnc Metal YCK-6180 Cnc Lathe Machine Automatic
-
Automatic Flat Bed Metal CNC Lathe CK6150x750 With High Precision
-
QK1322 Cnc Pipe Threading Machines for Sale
-
Linear Guideway Type CKL6140 Cnc Flat Bed Lathe Machine With One-piece Casting
-
Multi-function HT36 Flat Bed CNC Lathe Precision Small Workpiece
-
Vertical Lathe Machine C5120D Heavy Duty Vertical Manual Lathe Machine for Metal Processing
Product Description
Product Description
WMT CNC Lathe Main Features:
1. The machine adopts an integrated structure of machine, electricity and hydraulics, with a compact and reasonable layout;
2. All design and manufacturing processes are precision-manufactured according to the specifications of CNC machine tools;
3. The machine has remarkable characteristics such as strong rigidity and high reliability;
4. The machine tool has the characteristics of high speed, high precision and high rigidity, it can realize low-cost and high-efficiency machining parts, which can meet the rough machining, semi-finishing and finishing in machining, and greatly improve the utilization and efficiency of equipment;
5. It is especially suitable for parts with large batches, high processing accuracy, and high dimensional consistency requirements;
6. It is widely suitable for military industry, aerospace, automobile, mold, instrumentation and other mechanical processing industries.
Specification | units | YCK-6150B |
Max. swing over bed | mm | 500 |
Max. swing over slide | mm | 290 |
Max. workpiece length | mm | 500/750/1000/1500/ 2000 |
Max. turning length | mm | 450/670/920/1420/1920 |
Width of bed | mm | 390 |
Guideway type | type | Hardway |
Travel of X axis | mm | 295 |
Travel of Z axis | mm | 500/750/1000/1500/ 2000 |
X axis servo motor torque | Nm | 6 |
Z axis servo motor torque | Nm | 10(500/750/1000/1500)/15(2000) |
Rapid feed for X/Z axis | mm/min | 8/12 |
Spindle type | type | 3 Steps manual inverter-driven motor |
Spindle nose | type | A2-8 |
Spindle bore dia. and inner hole taper | type | 82mm/90-M5(1:20) |
Range of spindle speed | rpm | 5-260,140-800,280-1600 |
Manual jaw chuck and through hole | mm | 250/80 |
Spindle motor power | kw | 7.5/11(2000) |
Electric tool post | type | 4 position |
Tool cross section | mm | 25x25 |

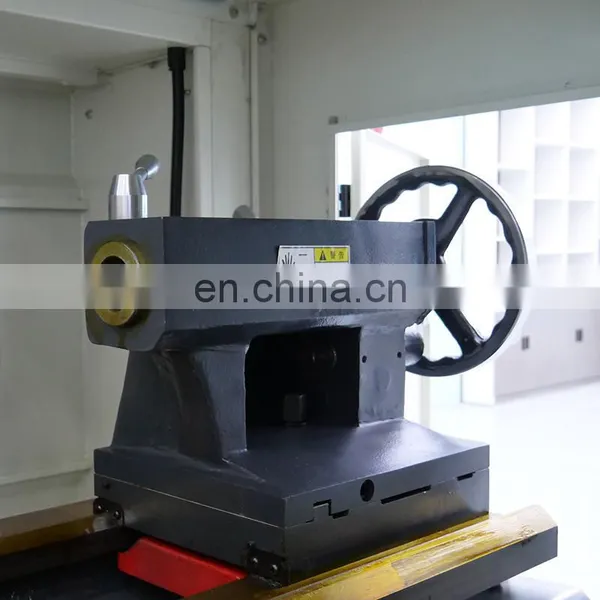

Tailstock quill dia./travel | mm | 75/L-150 |
Tailstock quill taper | type | MT5 |
Machining accuracy | grade | IT6 |
Re-positioning accuracy | mm | X axis 0.012, Z axis 0.016 |
Roughness | pm | Ra<3.2 |
Overall dimension | m | 2.4/2.65/2.9/3.5/3.9 x1.8x2.1 |
G.W | t | 2.2/2.5/3.1 /3.6/4.2 |

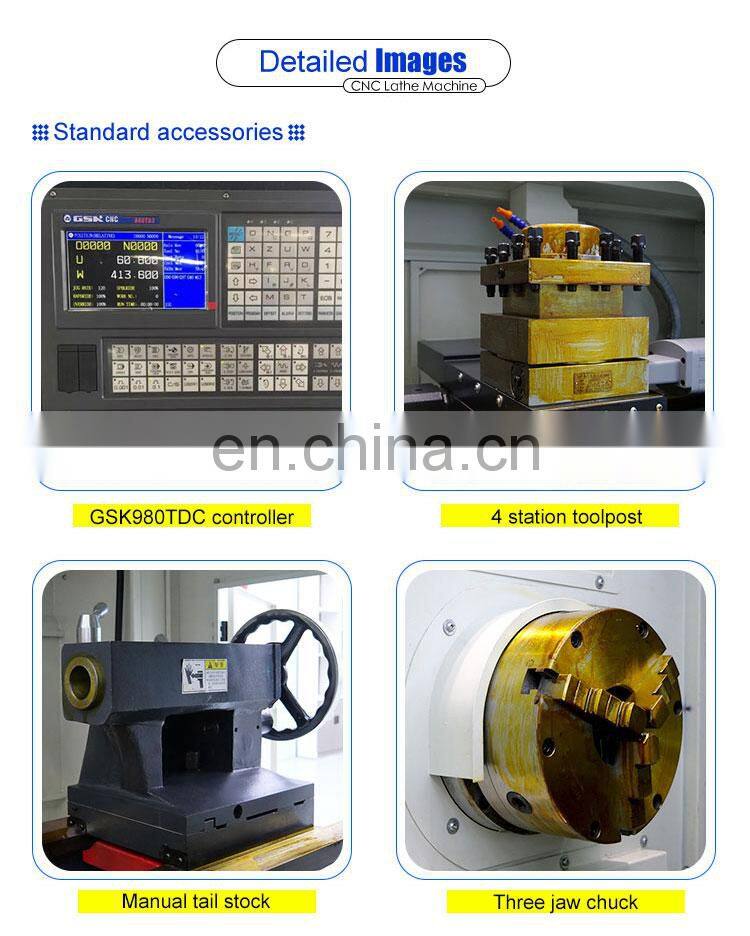

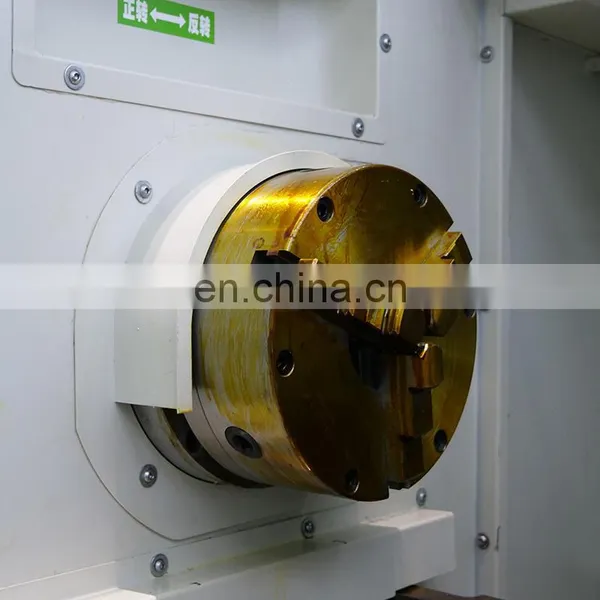

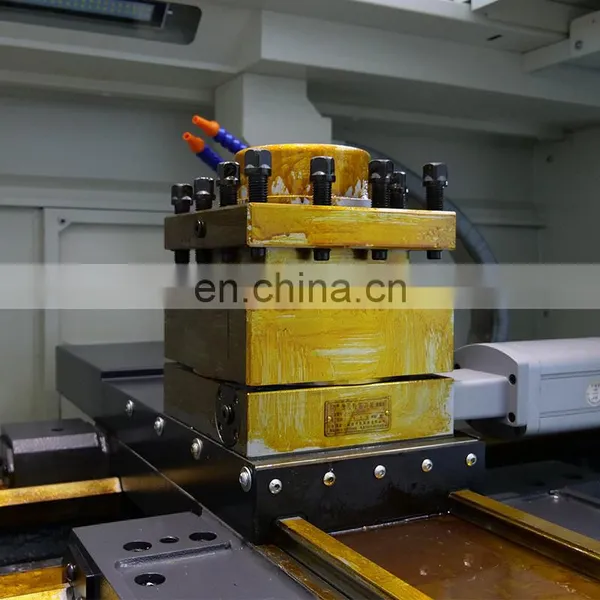

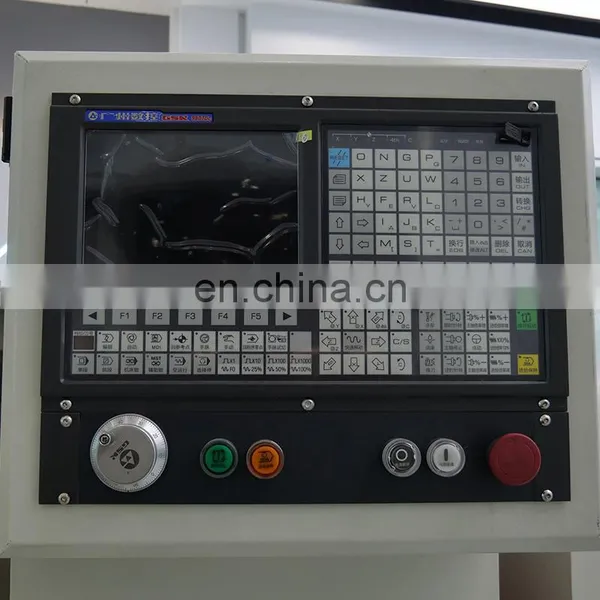

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
