Technology Data
CK 6132 CNC Lathe machine for making threads
Main Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specificaiton | Model CK6132x500/750/1000mm | Model CK6432×500/750mm |
Swing over bed | φ360 mm | φ360 mm |
Swing over carriage | Φ150 mm | Φ150 mm |
Distance between centers | 500/750/1000mm | 500/750mm |
Spindle bore | 40mm | 260mm |
Spindle nose | A2-5 | A2-6 |
Rail width | 206mm | Φ60mm |
Taper of spindle bore | MT5 | MT6 |
chuck | 6" | 8" |
Taper of spindle outside | D4 | D4 |
Range of speed (Variable) | 150-2500 rpm | 150-2500rpm |
X axis travel | 180mm | 350mm |
Z axis travel | 500/750/1000mm | 500/750mm |
X/Z rapid speed | 4/7m per min. | 4/7m/min |
X/Z screw | 2004/4006 | 2004/4006 |
Station of toolpost | 4 or 6 | 4 or 6 |
Max. section of tool | 20*20mm or 16*16mm | 20X20mm |
Stroke of tailstock sleeve | 120mm | 100mm |
Dia./hole of tailstock sleeve | 45mm/MT3 | Φ50mm/MT4 |
Main motor power | 2.2kw or 3.7KW | 3.7kw |
Coolant pump power | 180w | 120w |
Overall dimenstion (L*W*H) | 1780/1920/2170*1220*1800mm | 1740/2000x1210x1650mm |
Packing size (L*W*H) | 1980/2120/2370*1420*2000mm | 1960/2230x1410x1990mm |
NW/GW | 850/900/1050KG;900/1050/1200KG | 1275/1450KG,1450/1600KG |
Detailed Images
Machine Accessories
Standard Accessories
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck
Optional Accessories
GSK218M controller
Simens 808D controller
Simens 808D Advance controller
Fanuc Oi TF controller
6-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)
Machine Detailed Pic
Standard Electrical toolpost:
4-position toolpost
Optional Electrical toolpost:
6-position toolpost

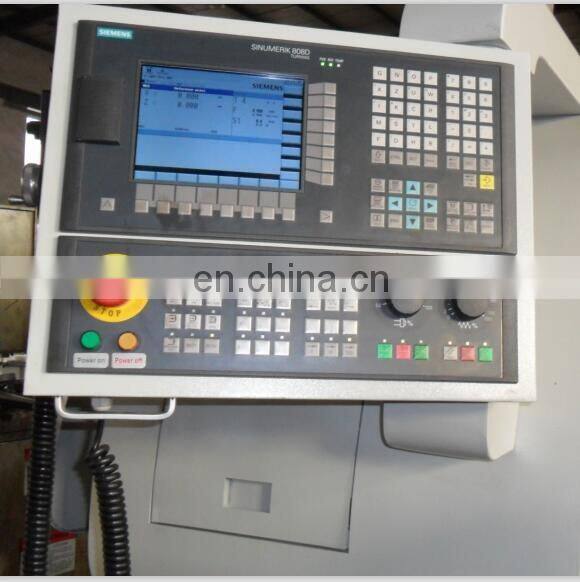

Siemens controller
GSK controller

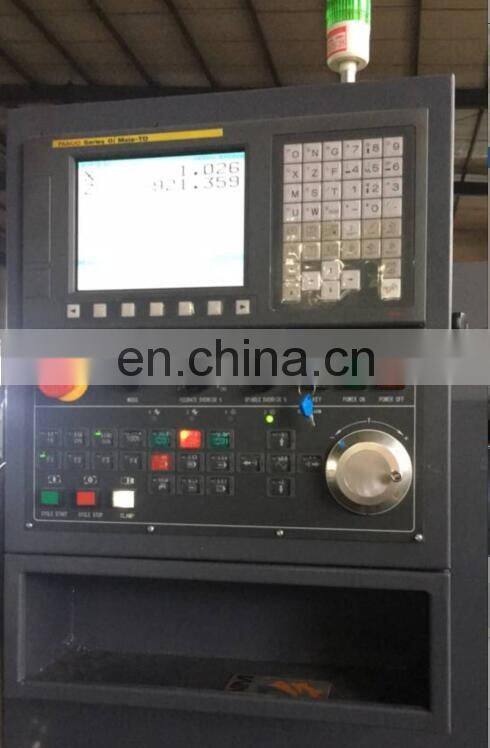

Fanuc controller
