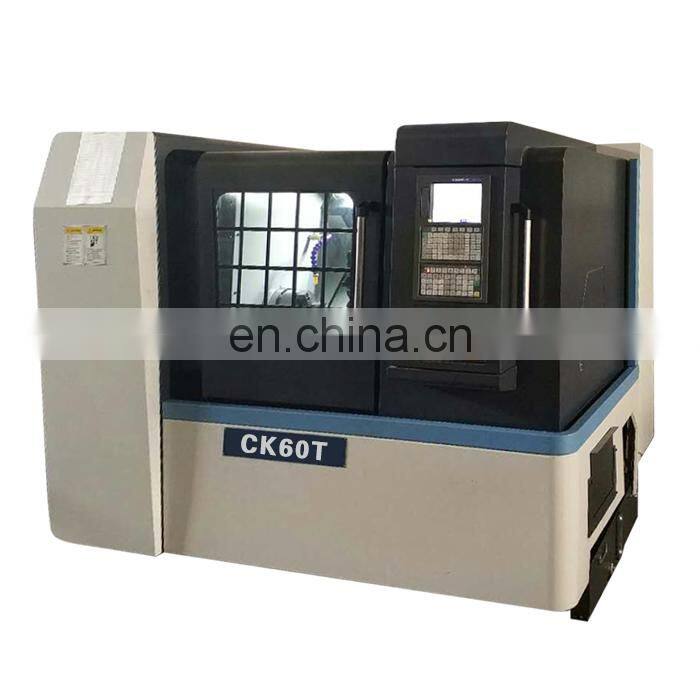

extra large slant bed cnc lathe CK60T slant bed CNC lathe machine heavy duty slant bed cnc lathe

Name: extra large slant bed cnc lathe CK60T slant bed CNC lathe machine heavy duty slant bed cnc lathe
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Slant Bed CNC Lathe Machine Main Features:

1. Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. 2. High speed at 5000r/min. First-class precision spindle bearing. 3. High precision ball screw Rexroth, fast feeding for high working efficiency. 4. All-closed stainless steel protection, strong liquid protection without any water leak. 5. 8-12 position hydraulic turret, easy machining for complex parts.

Specification	CK60T
Specification	CK60T
Max.swing over bed	Φ570mm
Max. processing diameter	Φ500mm
cessing diameter on the tool holder	Φ230mm
cessing length	520/750mm
Spindle nose	A2-6
Hydraulic chuck	8/10 inches
Spindle motor power	11-15KW
Max.spindle speed	4200rpm
Spindle bore diameter	Φ66mm
Bar diameter	Φ52mm
Size of X/Z axis screw	3210mm/4010mm
Max.travel of X axis	270mm
X axis motor torque	11N.M
Size of X/Z Axis linear guideway	45/45
Max.travel of Z axis	610/840mm
Z axis motor torque	11 N.M
center height of 12-station power turret	100mm
center height of 12-station servo hydraulic turret	100mm
Sleeve diameter	80mm
Sleeve travel	80mm
Max. travel of Tailstock	480mm
Tailstock sleeve taper	MT-4
Angle	30°
Dimensions (L×W×H)	1800×1320×1438mm / 2100×1386×1660mm
weight	3400/3700kg

Standard Equipment:

CNC control system: Fanuc or Siemens or Mitsubishi as you select Spindle bearing: Japan NSK or Germany FAG P4 class. Hydraulic chuck: Japan HOWA Hollow Hydraulic cylinder: Japan HOWA Hollow Linear guideway: Japan THK or Germany Rexroth. Leadscrew: Taiwan Yintai precision ball screw Leadscrew bearing: Japan NSK or Germany ESKY Turret: Taiwan Liuxing 8 positions Hydraulic station: Made in Taiwan famous brand Alarm lamp Auto-lubricating system Cooling system

Optional Accessories:

Hydraulic turret: 12-Position Auto chip conveyor Auto bar feeding
