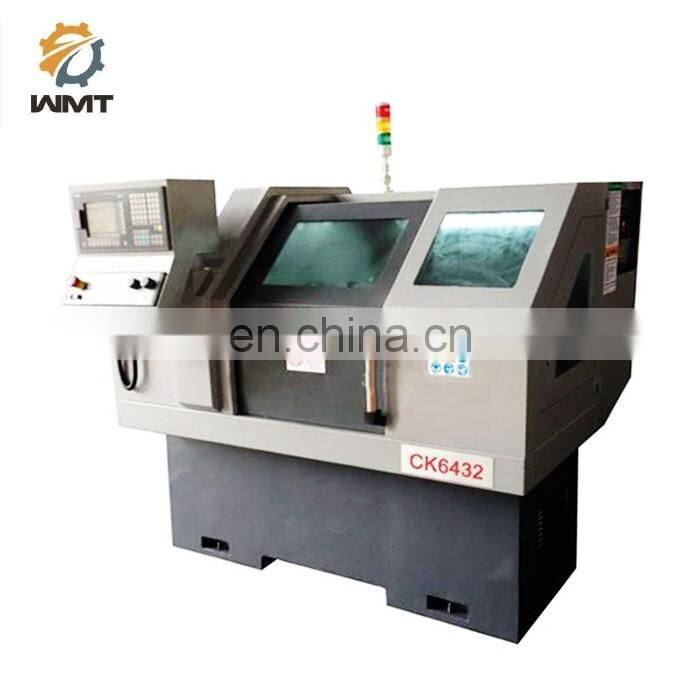

CK6432 750mmcheap Cnc Lathe Machine With CE for Metal Working
- T/T Credit Card
You May Like
Product Description
1.The half and full enclosure, you can select
2.Hardened by induction, the machine bed and carriage has a long durability.

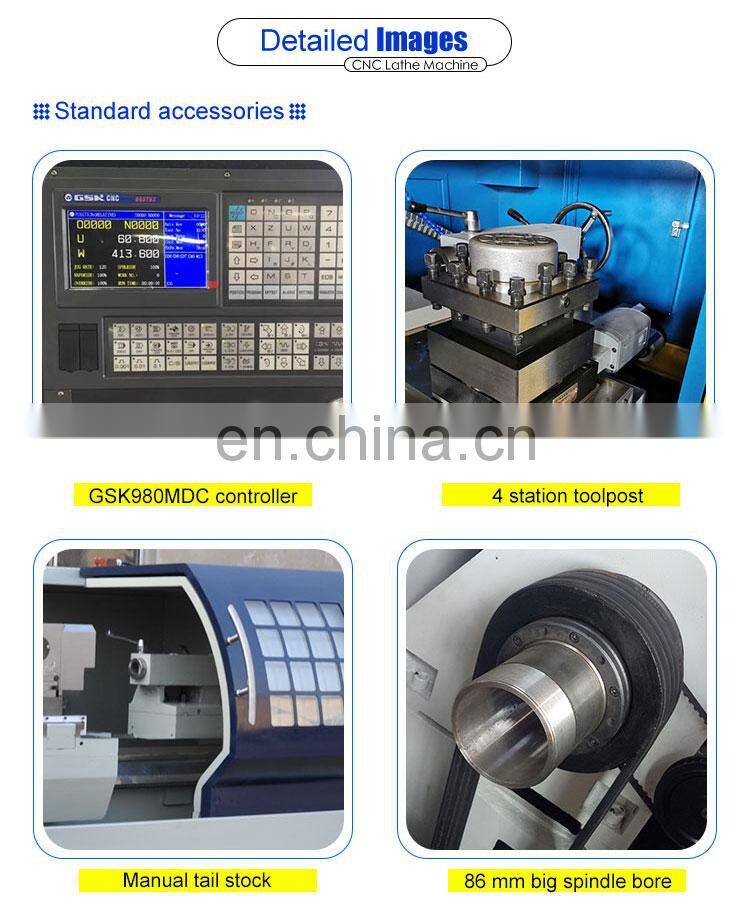

3.Electric turret and gang-tools turret can be both installed.
4.Manual lubrication or auto lubrication is up to you.
5.4-position electrical tool post as standard, 6-position is for optional selection,
6.Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thread of shaft, etc., with high efficiency and accurate processing.
7.The bed way has been finely grinned after ultra-tone quenching.
8.It is applied to various line like automobile, valve, electric tools and hardware,etc.
Specification | CK6432×500/750mm |
Max.swing over bed | Φ360 mm |
Max.swing over carriage | Φ150 mm |
Distance between centers | 500/750mm |
Spindle bore | 60mm |
Spindle nose | A2-6 |
Rail width | 260mm |
Taper of spindle bore | MT6 |
Chuck | 8" |
Range of speed (Variable) | 150-2500 rpm |
X axis travel | 350mm |
Z axis travel | 500/750mm |
X/Z rapid speed | 4/7m/min |
X/Z screw | 2004/4006 |
Station of toolpost | 4 or 6 or 8 |
Max. section of tool | 20x20mm |
Stroke of tailstock sleeve | 100mm |
Dia./hole of tailstock sleeve | 50mm/MT4 |
Main motor power | 3.7kw |
Coolant pump power | 120w |
Overall dimenstion (L*W*H) | 1740/2000x1210x1650mm |
Packing size (L*W*H) | 1960/2230x1410x1990mm |
NW/GW | 1275/1450kg;1450/1600kgs |

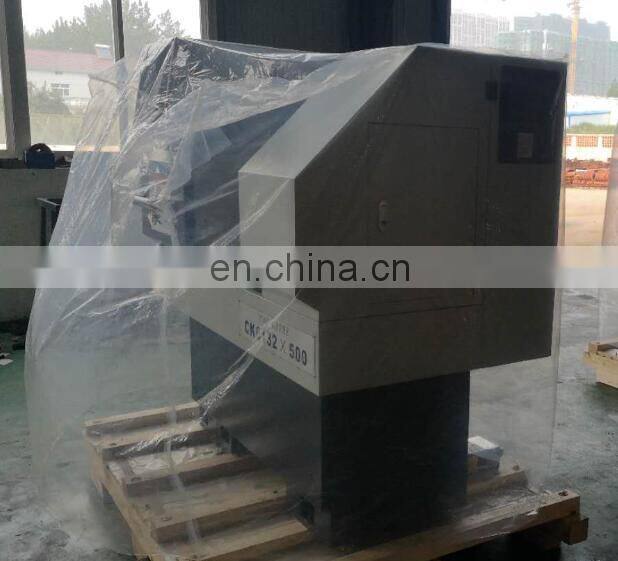

Packing Details :CNC lathe machine packed with export standard
Delivery Details : 35-60 days according to order
