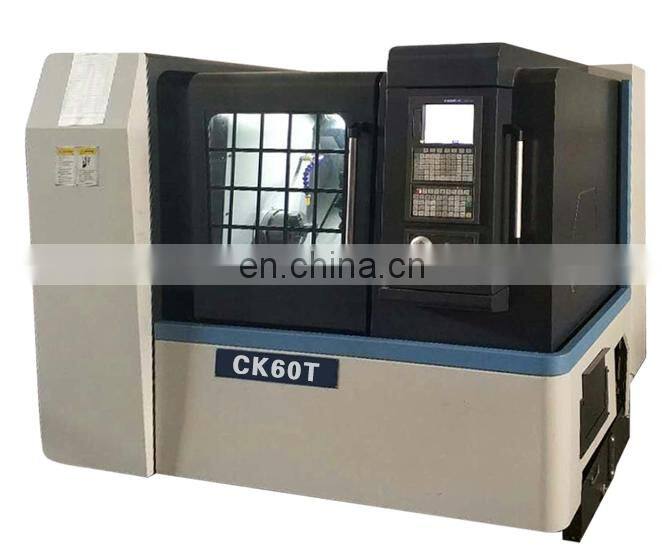

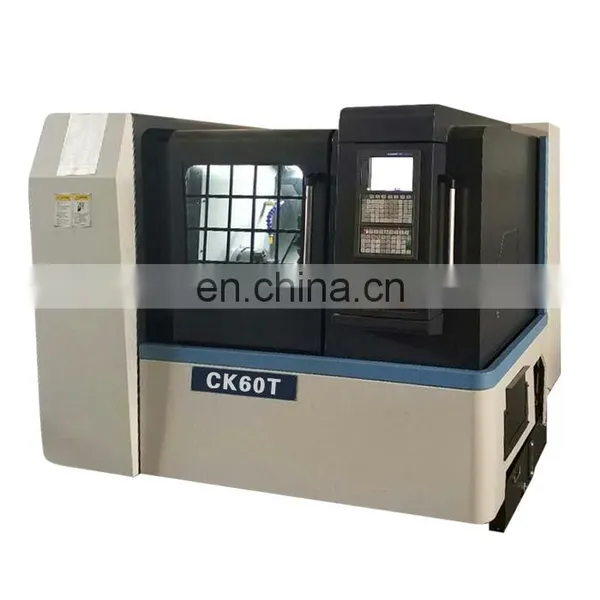

CK60T turning center slant bed CNC lathe machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Slant Bed CNC Lathe Machine Main Features:

1. Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. 2. High speed at 5000r/min. First-class precision spindle bearing. 3. High precision ball screw Rexroth, fast feeding for high working efficiency. 4. All-closed stainless steel protection, strong liquid protection without any water leak.

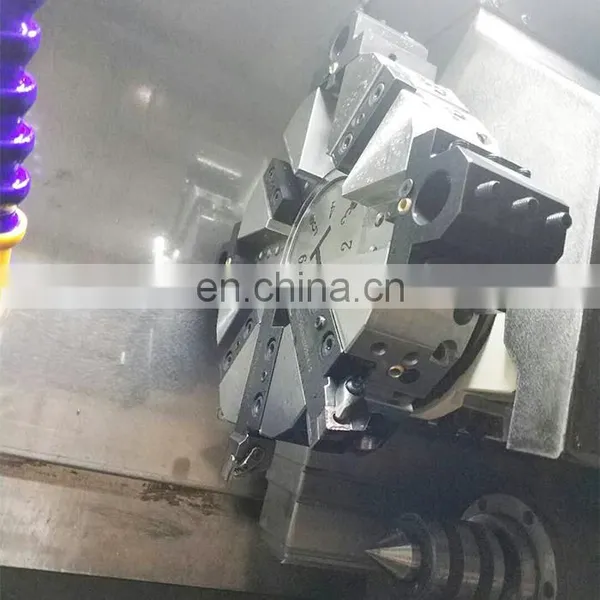

5. 8-12 position hydraulic turret, easy machining for complex parts.

Specification	CK60T
Specification	CK60T
Max.swing over bed	Φ570mm
Max. processing diameter	Φ500mm
cessing diameter on the tool holder	Φ230mm
cessing length	520/750mm
Spindle nose	A2-6
Hydraulic chuck	8/10 inches
Spindle motor power	11-15KW
Max.spindle speed	4200rpm
Spindle bore diameter	Φ66mm
Bar diameter	Φ52mm
Size of X/Z axis screw	3210mm/4010mm
Max.travel of X axis	270mm
X axis motor torque	11N.M
Size of X/Z Axis linear guideway	45/45
Max.travel of Z axis	610/840mm
Z axis motor torque	11 N.M
center height of 12-station power turret	100mm
center height of 12-station servo hydraulic turret	100mm
Sleeve diameter	80mm
Sleeve travel	80mm
Max. travel of Tailstock	480mm
Tailstock sleeve taper	MT-4
Angle	30°
Dimensions (L×W×H)	1800×1320×1438mm / 2100×1386×1660mm
weight	3400/3700kg

Standard Equipment:

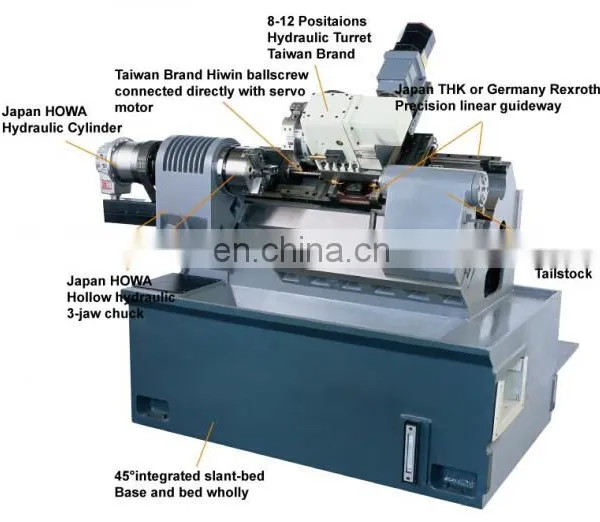

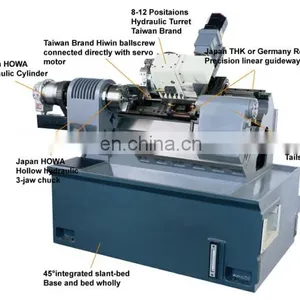

CNC control system: Fanuc or Siemens or Mitsubishi as you select Spindle bearing: Japan NSK or Germany FAG P4 class. Hydraulic chuck: Japan HOWA Hollow Hydraulic cylinder: Japan HOWA Hollow Linear guideway: Japan THK or Germany Rexroth. Leadscrew: Taiwan Yintai precision ball screw Leadscrew bearing: Japan NSK or Germany ESKY Turret: Taiwan Liuxing 8 positions Hydraulic station: Made in Taiwan famous brand Alarm lamp Auto-lubricating system Cooling system

Optional Accessories:

Hydraulic turret: 12-Position Auto chip conveyor Auto bar feeding

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
