CK6150 big bore CNC Lathe Machine for metal cutting
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
SGL280 hot sales slant bed CNC lathe machine for metal turning
-
parallel lathe STL420 China CNC slant turning lathe machine for metal
-
CK60T turning center slant bed CNC lathe machine
-
parallel lathe CK6432 CNC lathe machine for precision threads cutting
-
CKX500 cnc turning center fanuc cnc lathe machine with X/Z axis linear guideway
-
CKX550 cnc turning center cnc lathe machine with X/Z axis linear guideway

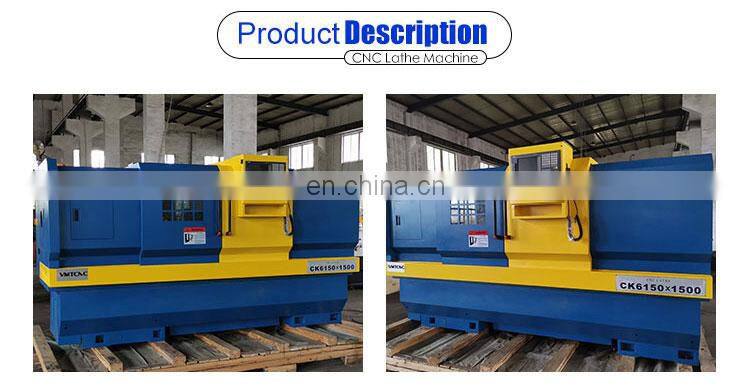

Product Description
Products Description
Features of CNC lathe:
1. Precision ground and hardened bedways.
2. The spindle is supported with precision roller bearings.
3. Head stock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
7. Whole or segregate foot stand for optional.
2. The spindle is supported with precision roller bearings.
3. Head stock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
7. Whole or segregate foot stand for optional.
Specification | CK6150 |
Max.swing over bed | Ф500mm |
Max.swing over carriage | Ф280mm |
Max. cutting length | 750/1100/1500mm |
Rail width | 400mm |
Spindle nose | A2-8 |
Spindle bore | Ф82mm or Ф86mm;Optional Ф105mm |
Taper of spindle bore | MT6 |
Chuck size | 10" |
Range of spindle speed | 150-1600rpm or 3 steps:30-150,,10-500,150-1600rpm |
X-axis travel | 330mm |
Z-axis travel | 750/1100/1500mm |
X/Z rapid speed | 5/8m/min |
X/Z screw | 3206/5010 |
Electronic turret | 4 or 6 or 8 |
Max.section of tool | 25x25mm |
Stroke of tailstock sleeve | 150mm |
Diameter/Hole of tailstock sleeve | Ф75mm/MT4 |
Main motor power | 7.5kw or 11kw |
Coolant pump power | 180w |
Overall dimensions L x W x H | 2100/2420/2860/3320x1600x1830mm |
Packing size L x W x H | 2300/2620/3060/3520x1800x2030mm |
Net weight | 2700/2750/3100/3350kg |
Gross weight | 2600/3000/3450/3650kg |
Detailed Images
Package&Delivery
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
