Home > Products > CNC LATHE > desktop cnc lathe CK6150 mini cnc lathe for education for threads making

desktop cnc lathe CK6150 mini cnc lathe for education for threads making

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Technology Data

Main Feature of CK6150 CNC Lathe for threads making:
1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.

Specification	CK6150
Max.swing over bed	Ф500mm
Max.swing over carriage	Ф280mm
Max. cutting length	750/1000/1500mm
Rail width	400mm
Spindle nose	A2-8
Spindle bore	Ф82mm or Ф86mm;Optional Ф105mm
Taper of spindle bore	MT6
Chuck size	10"
Range of spindle speed	150-1600rpm or 3 steps:30-150,,10-500,150-1600rpm
X-axis travel	330mm
Z-axis travel	750/1100/1500mm
X/Z rapid speed	5/8m/min
X/Z screw	3206/5010
Electronic turret	4 or 6 or 8
Max.section of tool	25x25mm
Stroke of tailstock sleeve	150mm
Diameter/Hole of tailstock sleeve	Ф75mm/MT4
Main motor power	7.5kw or 11kw
Coolant pump power	180w
Overall dimensions L x W x H	2100/2420/2860/3320x1600x1830mm
Packing size L x W x H	2300/2620/3060/3520x1800x2030mm
Net weight	2700/2750/3100/3350kg
Gross weight	2600/3000/3450/3650kg

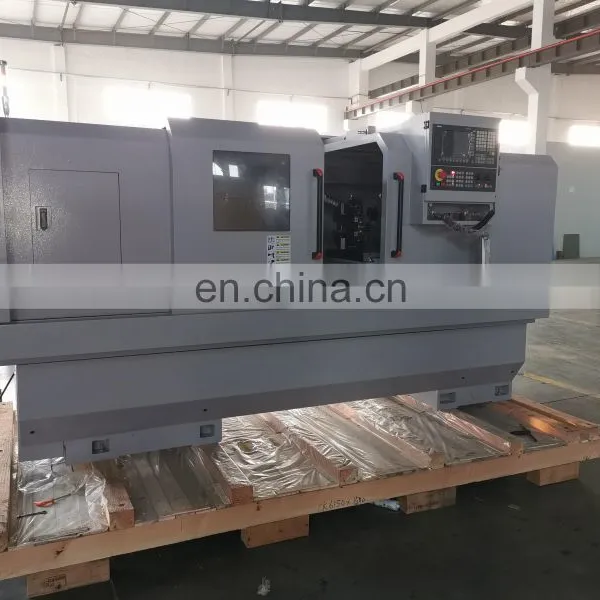

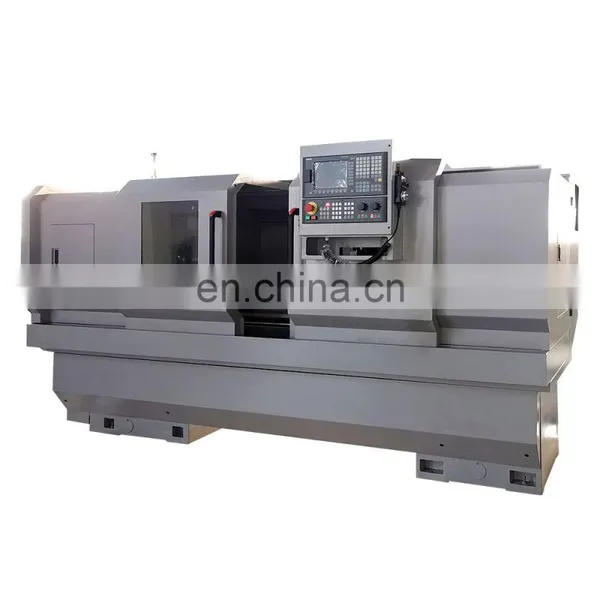

Detailed Images

Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck

Optional Accessories:
GSK218M controller

Simens 808D controller

Simens 808D Advance controller

Fanuc Oi TF controller
6/8-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
