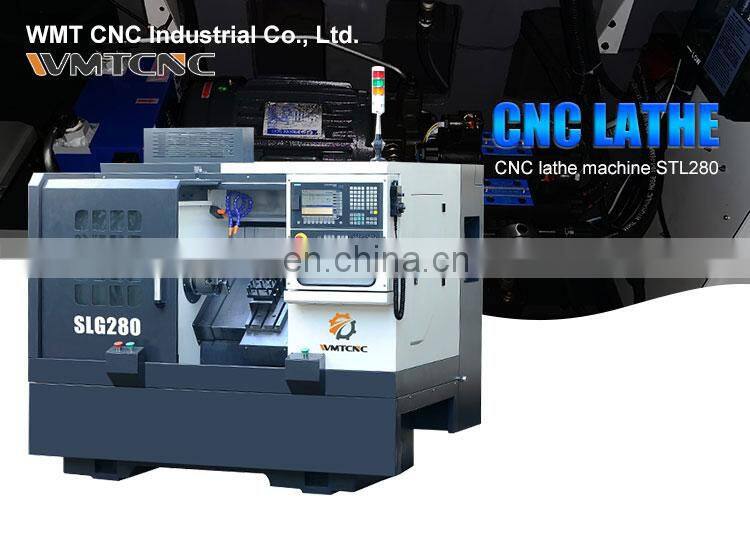

SGL280 Hot Sales Slant Bed CNC Lathe Machine for Metal Turning
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Parallel Lathe STL420 China CNC Slant Turning Lathe Machine for Metal
-
CK60T Turning Center Slant Bed CNC Lathe Machine
-
Parallel Lathe CK6432 CNC Lathe Machine for Precision Threads Cutting
-
CKX500 Cnc Turning Center Fanuc Cnc Lathe Machine With X/Z Axis Linear Guideway
-
CKX550 Cnc Turning Center Cnc Lathe Machine With X/Z Axis Linear Guideway
-
QK1327 280mm Spindle Bore Dia. Pipe Threading Machine

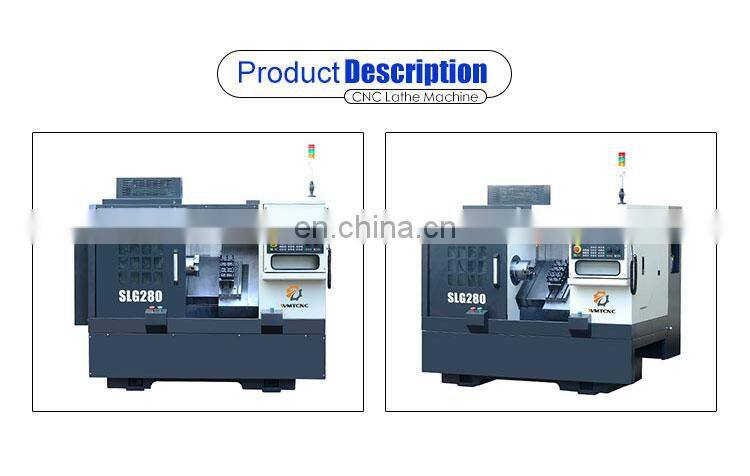

Product Description
Product Description
Main Features:
1. The SGL280 features a high-quality, heavy cast iron bed. 2. The bed is heat treated and annealed to provide a strong foundation for the SL series of lathes.
3. The single piece 35 degree slant bed design is extremely rigid - able to withstand heavy cutting forces.
4. The SL280 will consistantly produce high precision parts parts for the long-term.
5. Heat treated and annealed high quality cast iron base-provides strong foundation for the high speed, highly accurate SL Series of CNC Lathes.
6. True slant bed design is highly rigid and withstands heavy cutting forces.
7. Slant bed also allows for easy operator access and efficient chip removal.
8. The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously.
9. Highly accurate parts at the lowest cost.
10. Quality machine at a value price-High volume production and good QC.
Specifications | Unit | SGL280 | ||||||||
Capacity | Chuck/collet | Hydraulic Collet *Hydraulic Chuck 6", *8" | ||||||||
Max. swing dia. over bed | mm | Ф420 | ||||||||
Max. length of workpiece | mm | Collet 240, * Chuck 210 | ||||||||
Max. swing dia. over slide | mm | Ф140 | ||||||||
Spindle | Spindle bore | mm | Ф48 | *Ф55 | *Ф62 | *Ф81 | ||||
Max. dia. of through-hole | mm | Ф40 | *Ф46 | *Ф52 | *Ф70 | |||||
Spindle nose | A2-5 | *A2-5 | *A2-6 | *A2-8 | ||||||
Max. Spindle speed | rpm | 3000 *4500 | *2500 | *2000 *4000 | *1 600 | |||||
*4500 | ||||||||||
*5000 | ||||||||||
Main motor power | kW | 3.7/5.5, *5.5/7.5 | ||||||||
Axis | X travel | mm | 280 | |||||||
Z travel | mm | 240 | ||||||||
X/Z rapid traverse | m/min | 28/28 | ||||||||
Toolpost | Type | Gang type | ||||||||
NO. of too stations | No. | 4~6 | ||||||||
OD lol and bore loo shank | mm | 20x20/ Ф25 | ||||||||
Structure | Inclined bed degree | 35 | ||||||||
Guideway type | LM | |||||||||
Others | Power capacity | kVA | 11 | |||||||
Dimensions(LxWxH) | mm | 1750x1320x1500 | ||||||||
Weight(about) | kgs | 2000 | ||||||||
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
