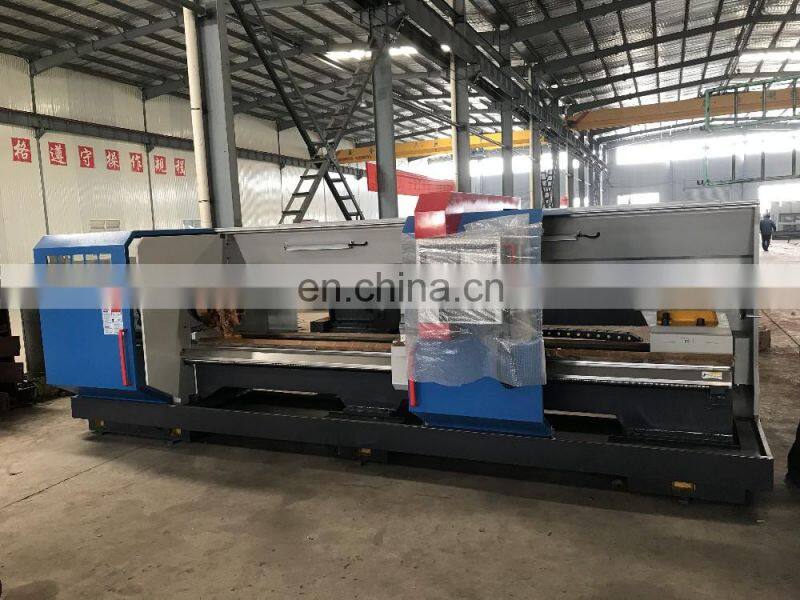

200mm Spindle Bore Dia. QK1319 Pipe Threading Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Desktop Cnc Lathe CK6150 Mini Cnc Lathe for Education for Threads MakingNegotiableMOQ: 1 -
CK6432 750mmcheap Cnc Lathe Machine With CE for Metal WorkingNegotiableMOQ: 1
-
CK42T 3-Axis Turning Center Cnc LatheNegotiableMOQ: 1
-
SK50P 500mm Cnc Lathe Machine for SaleNegotiableMOQ: 1
-
Extra Large Slant Bed Cnc Lathe CK60T Slant Bed CNC Lathe Machine Heavy Duty Slant Bed Cnc LatheNegotiableMOQ: 1
QK1319 CNC Pipe Threading Lathe Machine
High rigidity
Whole unity base
Good performance
Technology Data
Main Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification |
QK1319 |
Max.swing over bed |
Ф630mm |
Max.swing over carriage |
Ф340mm |
Max. cutting length |
1000/1500/3000mm |
Rail width |
550mm |
Spindle bore |
Ф200mm |
Taper of spindle bore |
MT6 |
Chuck size |
500mm |
Range of spindle speed |
(L):25-120rpm(H):100-500rpm |
X-axis travel |
350mm |
Z-axis travel |
850/1350/2850mm |
X/Z rapid speed |
4m/min |
Electronic turret |
4 -station |
Max.section of tool |
32x32mm |
Stroke of tailstock sleeve |
250mm |
Diameter/Hole of tailstock sleeve |
Ф100mm/MT5 |
Main motor power |
11kw |
Overall dimensions L x W x H |
2100/2420/2860/3320x1600x1830mm |
Packing size L x W x H |
2300/2620/3060/3520x1800x2030mm |
Net weight |
5000/5500/6000kg |
Gross weight |
6000/6550/7000kg |
Machine Accesories
Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck 2 pcs
Optional Accessories:
GSK218M controller
Simens 808D controller
Simens 808D Advance controller
Fanuc Oi TF controller
6/8-Position electrical tool post

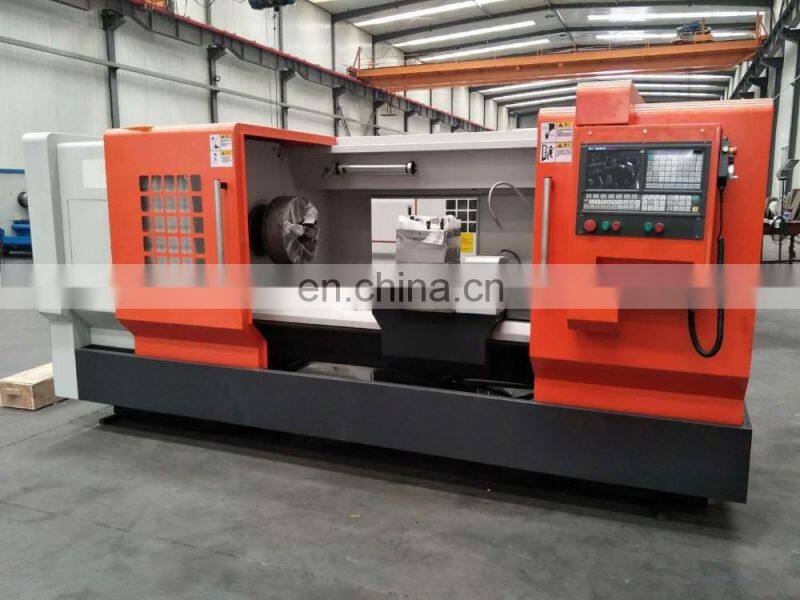

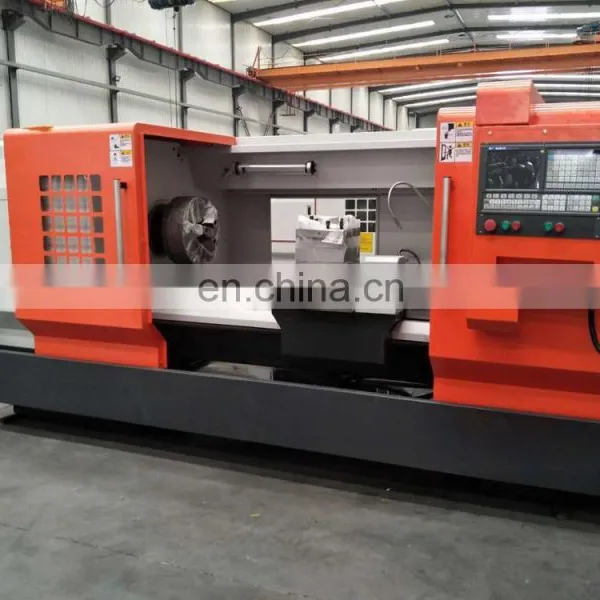

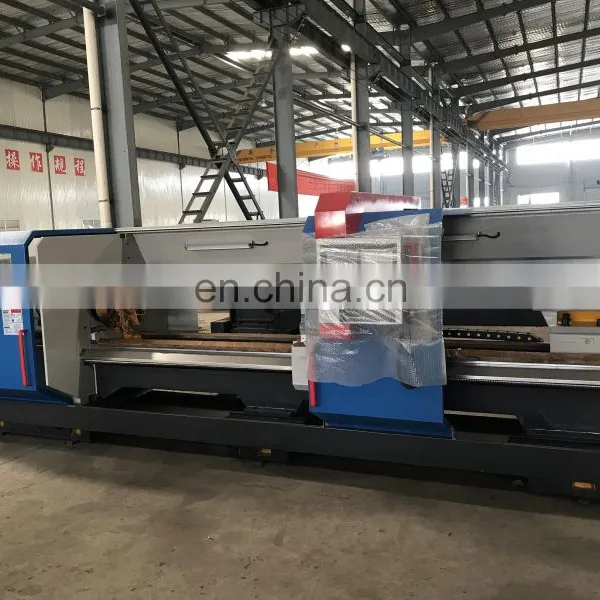

Machine pics
GSK980TDC controller
Siemens 808D controller
Fanuc Oi TF controller

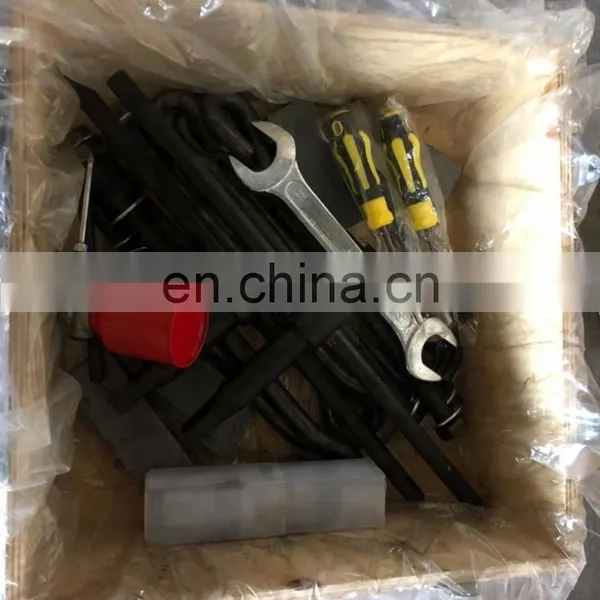

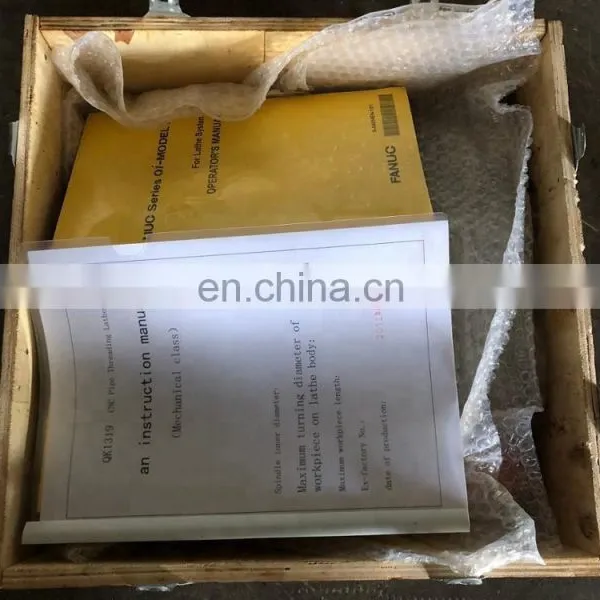

Packing & Delivery
Related Products
CNC Lathe CK6136
91.8% Response Rate
Machining center VMC600L
91.8% Response Rate

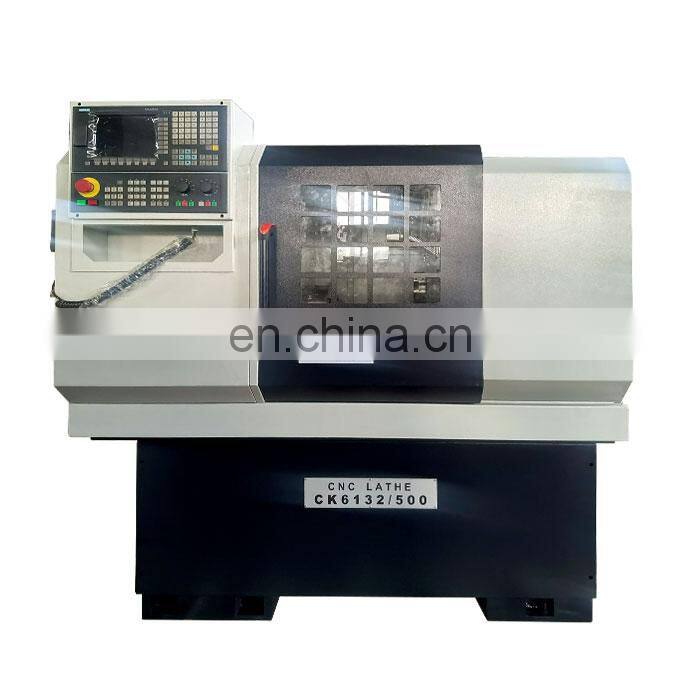

CNC Lathe CK6132
