Cnc Single Column Vertical Lathe CK5116E With Threading Function
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Desktop Cnc Lathe CNC180 Small Mini CNC Lathe Machine Price for Hobby and School Training
-
CK6132x750mm Automatic Cnc Lathe Machine With CE Standard
-
China Hot Sales CK6140 Automatic Horizontal Metal Cnc Lathe Machine With Siemens 808DA Control System
-
CK6150 Big Bore CNC Lathe Machine for Metal Cutting
-
SGL280 Hot Sales Slant Bed CNC Lathe Machine for Metal Turning
-
Parallel Lathe STL420 China CNC Slant Turning Lathe Machine for Metal
Product Description
Product Description
Features:
1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm, the table diameter is 1400mm, and the maximum machining height is 1000mm.
2. The transmission device is a four-speed stepless transmission, which is convenient, sensitive and reliable.
3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.
1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm, the table diameter is 1400mm, and the maximum machining height is 1000mm.
2. The transmission device is a four-speed stepless transmission, which is convenient, sensitive and reliable.
3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.
Specifications | Unit | CK5116E |
Maximum cutting diameter of vertical tool post | mm | 1600 |
Diameter of worktable | mm | 1400 |
Maximum processing height | mm | 1000 |
Maximum weight of workpiece | t | 5 |
Rotating speed range of worktable | r/min | 5-160 |
Rotating speed of worktable | Step | Four step various speed |
Maximum torque of worktable | Kn/m | 25 |
Feed level of tool post | Step | Various speed |
Maximum cutting force of vertical tool post | KN | 25 |
Ram | mm | 915 |
mm | 800 | |
Beam stroke | mm | 850 |
Fast moving speed of tool post | mm/min | 2000 |
Beam lifting speed | mm/min | 580 |
Tool bar section size (length×width) | mm | 30×40 |
Main motor power | kW | 30 |
System Configuration | Siemens 828D system | |
CNC axis | X.Z two-axis linkage | |
Positioning accuracy | mm | 0.03 |
Repeatability | mm | 0.015 |
Machining dimensional accuracy | IT7 | |
Machine weight (approximately) | t | 13 |
Detailed Images
Machine Detailed

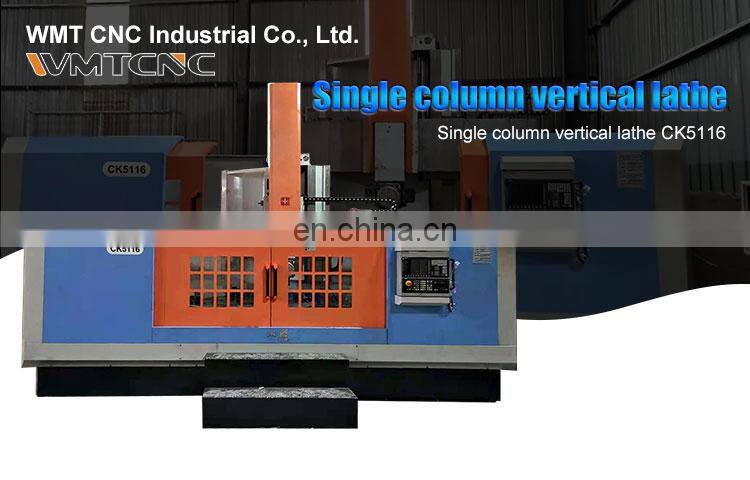

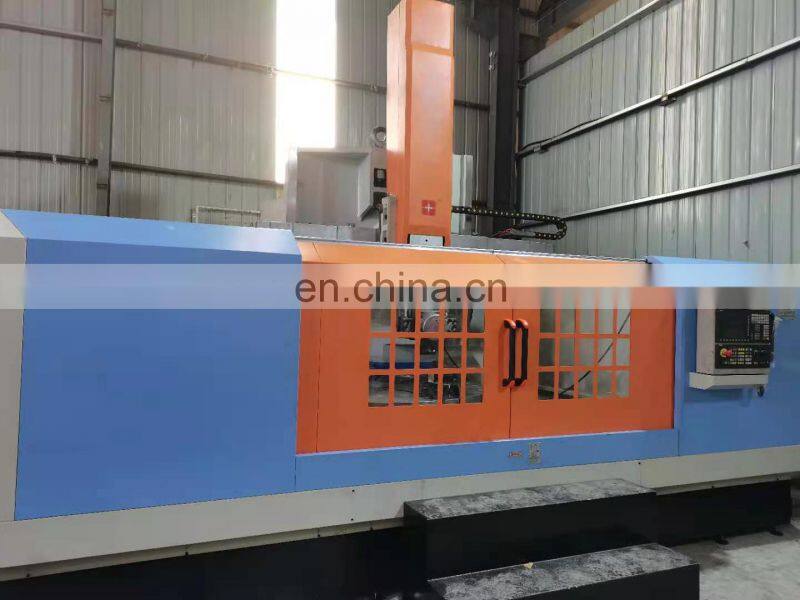

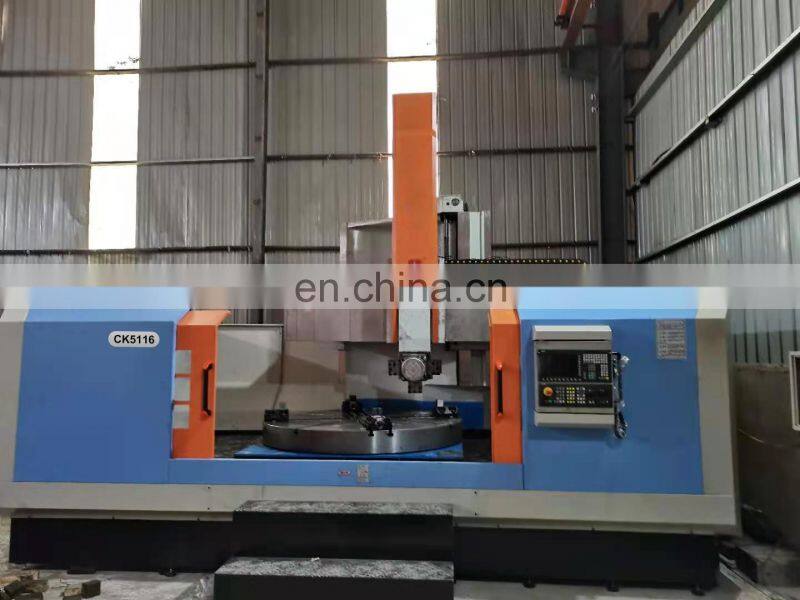

CNC single column vertical lathe
Machine configuration: Siemens 828 system
Four-station electric tool post
Four-speed stepless speed change, Beijing super synchronous main servo motor
Electrical cabinet air conditioning cooling
The whole machine is semi-closed, chip conveyor
Water cooling device on workpiece
Threading function
CNC single column vertical lathe
Machine configuration: Siemens 828 system
Four-station electric tool post
Four-speed stepless speed change, Beijing super synchronous main servo motor
Electrical cabinet air conditioning cooling
The whole machine is semi-closed, chip conveyor
Water cooling device on workpiece
Threading function
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
