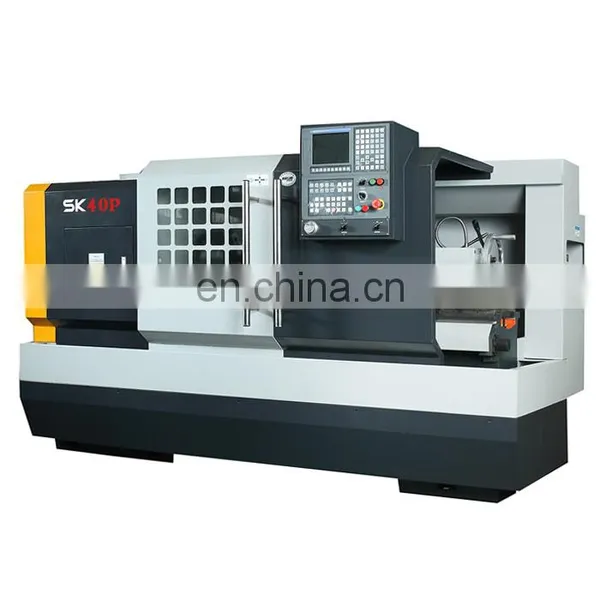

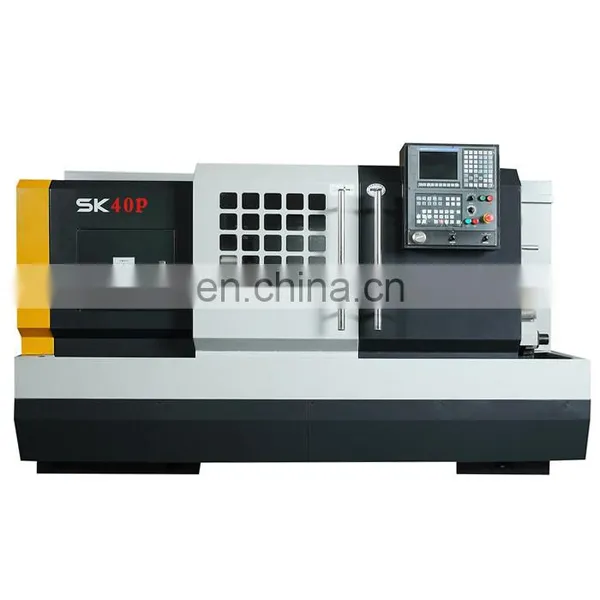

SK40P 400mm CNC Lathe Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lathe Machine CK35L Slant Bed 45 Degree Benchtop Cnc LatheNegotiableMOQ: 1 -
Lathe Machine CK6432 Automatic CNC Lathe Machine With Good Price and CENegotiableMOQ: 1
-
WMT CNC Lathe CK6132X750 Lathe Machine From China Type Cnc Automatic LatheNegotiableMOQ: 1
-
Automatic Horizontal Metal CNC Lathe CK6150x750 With High Precision From China FactoryNegotiableMOQ: 1
-
CK61125 Heavy Duty Horizontal CNC Metal Lathe Machine PriceNegotiableMOQ: 1
Product Description
HOT SELL CNC LATHE MACHINE SK40P
Specification |
SK40P |
Max. swing over bed (mm) |
φ400 |
Max. swing over slide (mm) |
φ200 |
Max. turning dia. (mm) |
φ400/350 * |
Max. work length (mm) |
710/620; 960/870; 1460/1370; 1960/1870;2960/2870 |
Max. turning length (mm) |
570/500; 820/750; 1320/1250; 1820/1750;2820/2750 |
Spindle taper hole (mm) |
φ77 |
Spindle nose |
ISO702/ⅠA2-8 |
Spindle speed (r/min) |
3 gear stepless 21-1620 |
H:162-1620 M:66-660 L:21-210 |
|
Taper hole of spindle |
Metric 1:20 |
Max. output torque of spindle (N.m) |
800 |
Max. rapid traverse (m/min) |
X-axis: 6(See OPERATOR'S MANUAL---ELECTRICAL PARTS for details) |
Z-axis: 8(See OPERATOR'S MANUAL---ELECTRICAL PARTS for details) |
|
Pitch of screw (mm) |
X direction: 5 Z direction: 6 |
Capacity of turret |
4(standard)/6(optional) |
Width of tool block(mm) |
162X162 |
Max. permissible tool section (mm ×mm) |
25×25 |
Travel of turret (mm) |
X direction: 300/235(6-station) |
Z direction: 600/850/1350/1850/2850 |
|
Dia. of tailstock quill (mm) |
φ75(φ80 hyd. tailstock) |
Taper of tailstock quill (MT No.) |
MT No.5(MT No.3 hyd. tailstock with live spindle) |
Max. travel of tailstock quill(mm) |
150(130 hydraulic tailstock) |

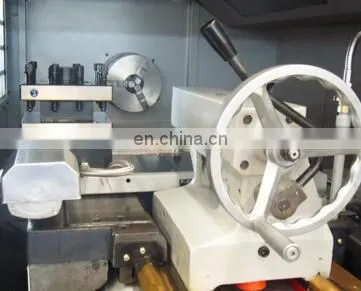

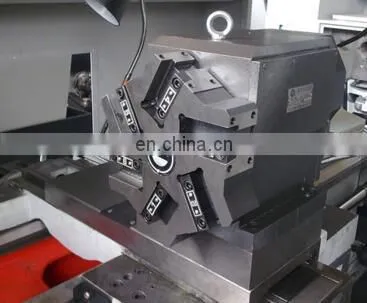

Detailed Images
