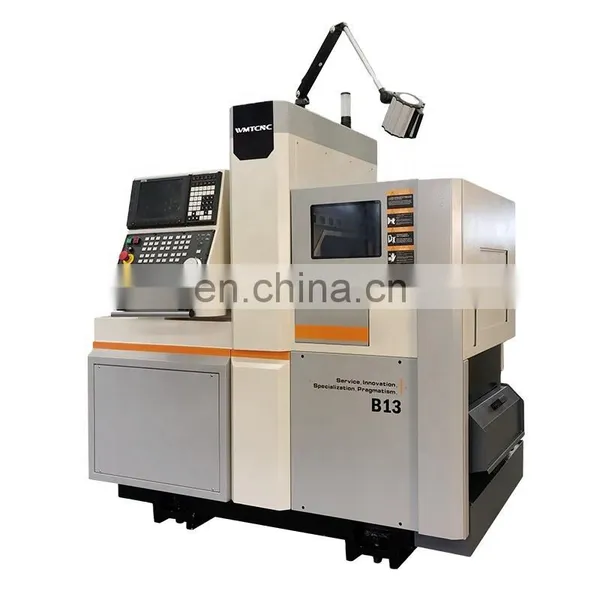

China hot sell high quality B13 swiss type 5 axes cnc lathe with Dual spindle

Name: China hot sell high quality B13 swiss type 5 axes cnc lathe with Dual spindle
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Swiss type cnc lathe Main Features:

1. Using the counter spindle and the back tool post, front and back processing can be performed at the same time.

2. Equipped with 3-axis lateral power head, lateral rigid tapping, front rigid tapping, back rigid tapping.

3. Equipped with no guide sleeve device, which is most suitable for high precision machining of short workpieces.

4. Adjust the chuck with the clamping force of the main shaft and the back shaft, which can easily clamp fine and precise parts Fixed guide bushes and linked guide bushes have better benefits.

5.The main shaft oil-cooled electric spindle has no dead angle cooling at high speed, and it has more uniform heat dissipation and stronger performance than ordinary air-cooled electric spindle.

6. This machine adopts absolute operation, no need to return to the original point on and off, saving time and labor and labor. Uninterrupted power supply for 24 hours, high efficiency and labor saving.

Application:

It is capable of turning and milling combined processing.

It is a high-precision, wide-ranging and practical processing equipment.

This type of machine tool is suitable for large-scale and large-scale "slender shaft" parts with relatively large length and diameter, and "small" and "abnormal" parts.

Variety, high-precision processing tasks, its processing range is widely applicable to various high-tech industries such as medical, aviation, aerospace, military, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones, etc.

Compound processing of precision, multi-batch, complex shape shaft parts and precision small parts.

Power	rated voltage	3 phase AC 380V
		rated frequency	50HZ
		total input power	10kw
CNC SYSTEM	LNC
		Minimum setting unit	0.001mm
		Minimum moving unit X	0.0005mm
		Minimum moving unit Z	0.001mm
		Cutting speed	1--4000mm/min
		X rapid travel speed	15000mm/min
		Y rapid travel speed	15000mm/min
		Z rapid travel speed	15000mm/min
Spindle	Max. bar throught hole	Φ13mm
		spindel through diameter	Φ14mm
		Spindle center height from the ground	1010mm
		Spindle revolving speed	0-5000r/min
		spindle motor power	2KW
Sub-spindle	Max. clamping dia.	Φ13mm
		Revolving speed.	0-5000r/min
		Motor power	2KW
Stroke	X1 stroke	60mm（Dia. value）
		Y1 stroke	230mm
		Z1 stroke	150mm
		X axis servo motor power	750W
		Y axis servo motor power	1KW
		Z axis servo motor power	1KW
		Guideway	Linear guideway
Machine size	LWH	175013001950mm

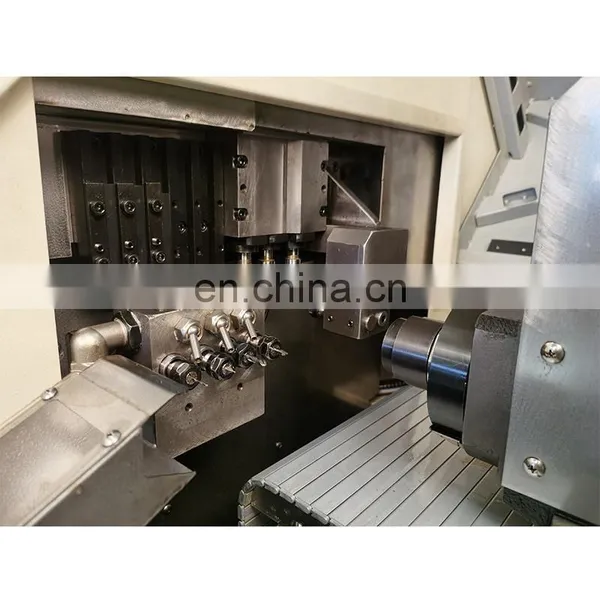

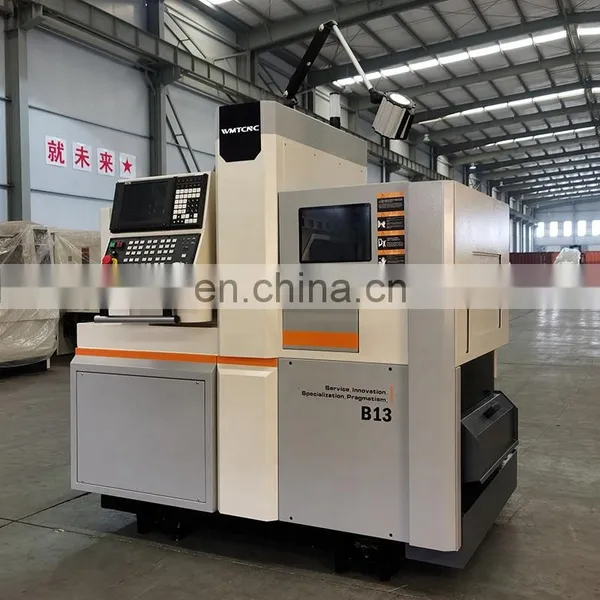

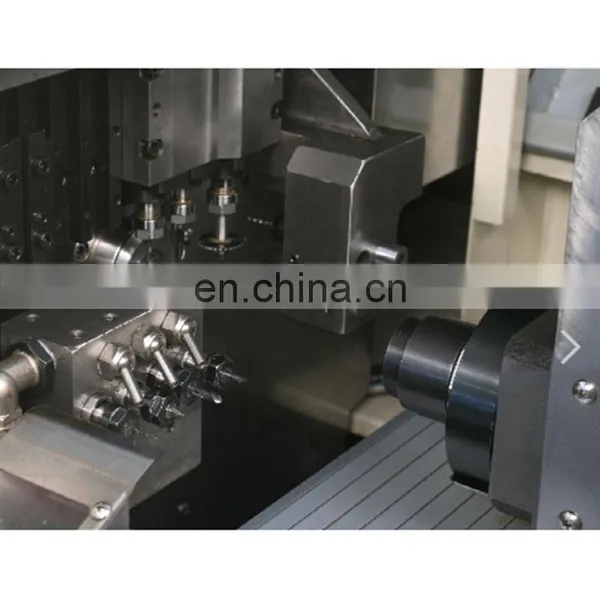

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
