CK1107 Economical Swiss Type CNC Lathe With Competitive Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Hot Sell High Quality B13 Swiss Type 5 Axes Cnc Lathe With Dual SpindleNegotiableMOQ: 1 -
CNC Lathe Machine CK5116 Metal Cutting CNC Vertical Lathe Machine With CENegotiableMOQ: 1
-
Cnc Single Column Vertical Lathe CK5116E With Threading FunctionNegotiableMOQ: 1
-
Desktop Cnc Lathe CNC180 Small Mini CNC Lathe Machine Price for Hobby and School TrainingNegotiableMOQ: 1
-
CK6132x750mm Automatic Cnc Lathe Machine With CE StandardNegotiableMOQ: 1
Product Description
Swiss Type CNC Lathe Main Features:
CK1107 Spindle Movable Type CNC machine has features of reasonable structure, fast tool changing, high reliability. The machine, comparedwith all others of its class, can obviously reduce times of feeding material, and improve efficiency when processing slender parts. A one-timematerial feeding is enough for processing full length of parts that less than 150mm.
The material feeding part of the machine is equipped with automatic feeder, and the catching part can be installed with short and long partcatching device ( can order according to your need) to realize the processing mode that one person minds several machines, so as to savelabour.
This kind of machine is the best for processing shaft parts that have complicated shape and require high precision and mass production in carand motor accessory, medicine, micro- axis, electronic component, pneumatic tool, clock industries etc.
1.Three feeding axes adopt import linear guide rail.
2.Three feeding axes travel in high speed, reduce the idle movement time andincrease the work efficiency.

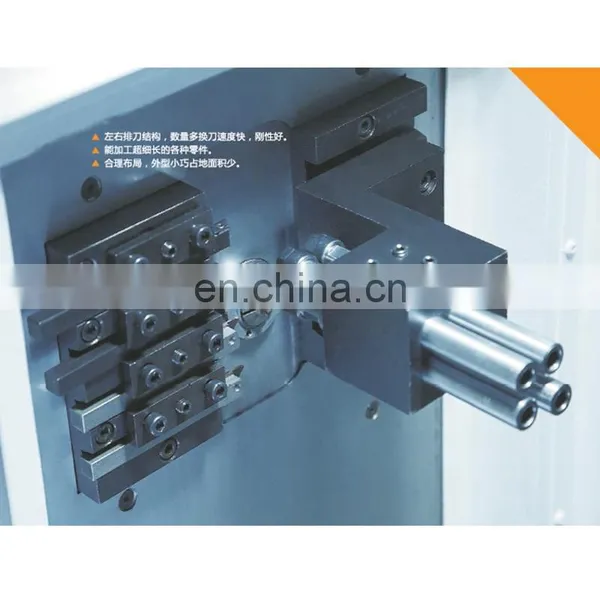

3.More tools than usual gang type lathe and quicker tool change time.
4.Ideally apply to machine various super slender component.
5.Favorable price,superior performance.
Specification |
CK1107 |
Rated voltage |
380V |
Total input power |
4kw |
Cutting speed |
1-4000mm/min |
Spindlle bore |
Ф8 |
Spindle speed |
100-6000r/min |
Power |
1.5kw |
X axis travel |
38mm |
Y axis travel |
80mm |
Z axis travel |
150mm |
Slide guide mode |
Linear Guide Rail |
Gang tool |
12 |
Turning tool |
8 |
Tool size |
8*8 |
Cutting motor power |
90W |
Capacity |
1.5L |
Dimensions |
1400x660x1450mm |
Weight |
600kg |

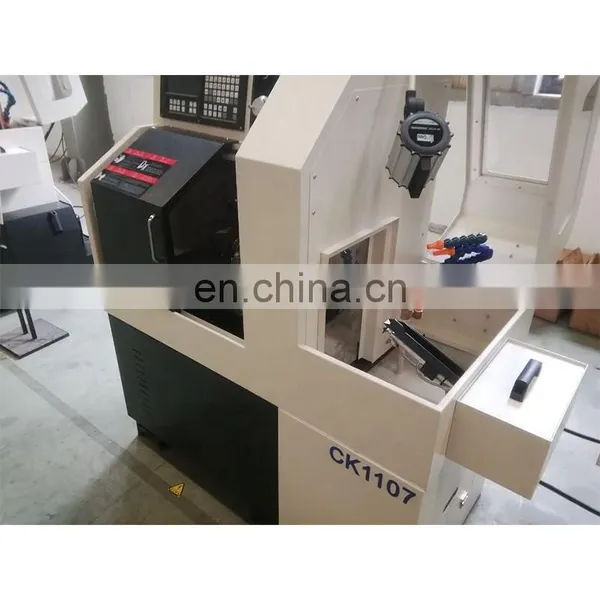

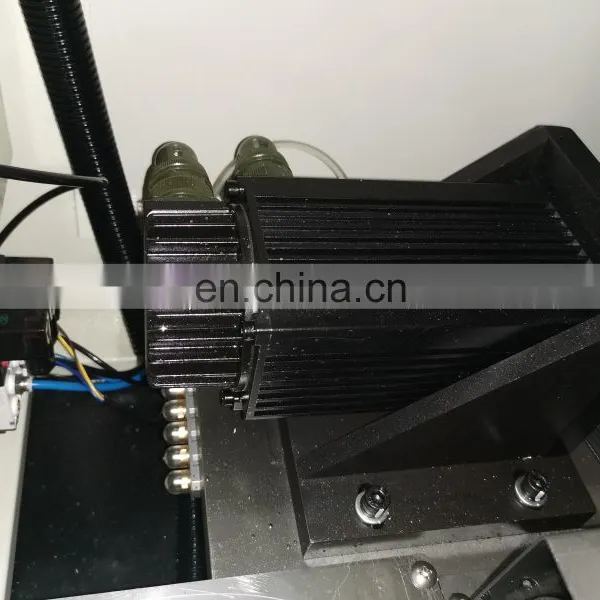

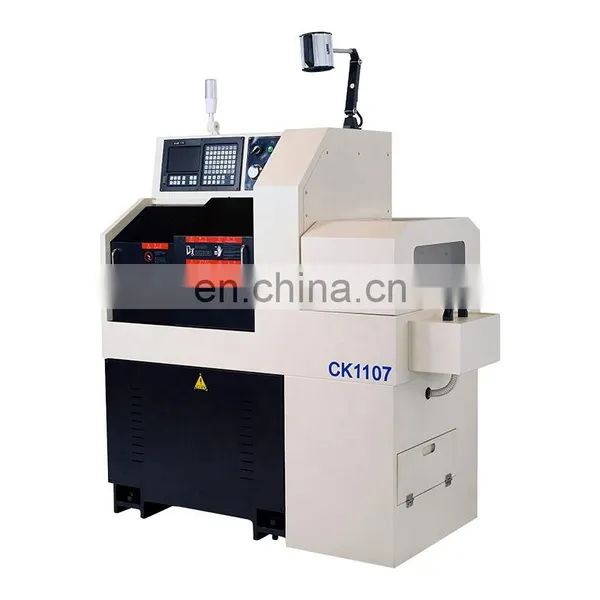

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
