VMC1040 cnc milling VMC machine center for metal work

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

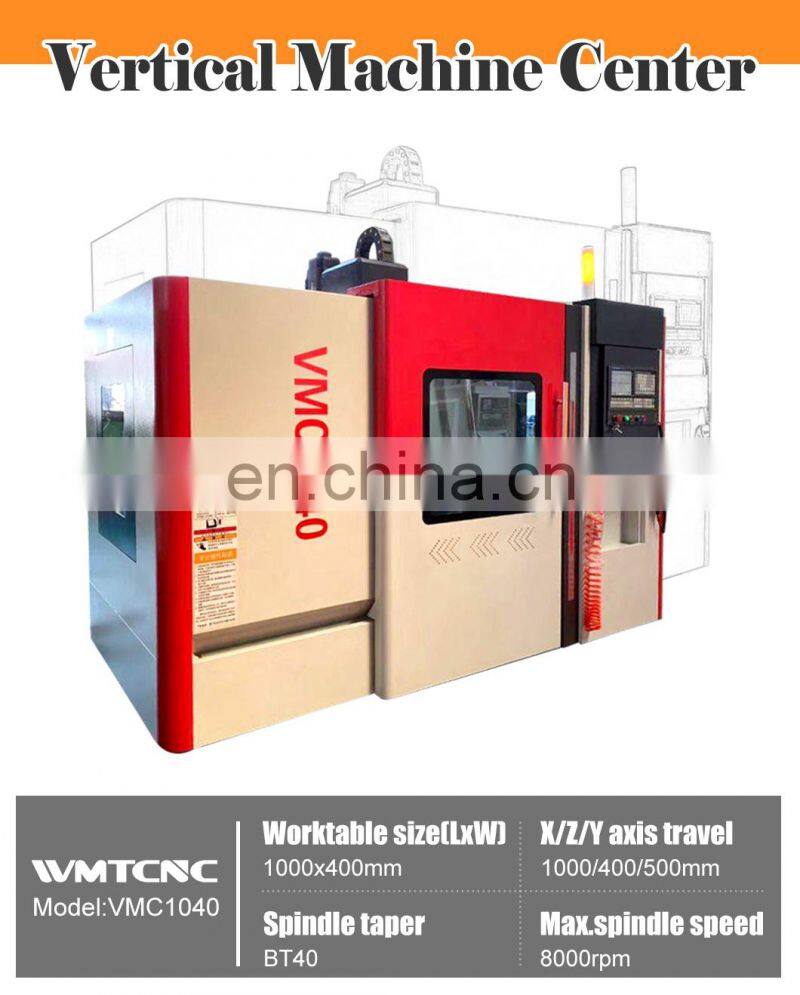

CNC MILL machinery center VMC1040

Main specification

Specification	VMC1040
Worktable
Worktable size（LxW）	1000x400mm
T-slot (NxWx D)	3×18×115
Travel
X/Y/Z axis travel	1000/400/500mm
Machine range
Distance from spindle center to column	485mm
Distance from spindle nose to worktable surface	125~625mm
Spindle
Spindle taper	BT40
Spindle power	5.5kw
Max.spindle speed	8000rpm
Feed(direct drive)
Max.feed speed	1~5000mm/min
Rapid feed speed（X/Y/Z)	32/32/24m/min
X/Y/Z axis ball screw	R4016
Tool magazine
Tool magazine capacity	16T 24T(Optional)
Positioning accuracy(National standard)
Positioning accuracy（X/Y/Z)	±0.008
Re-positioning accuracy（X/Y/Z)	±0.005
Machine dimension
LxWxH	3000×2200×2500mm
Max.loading of worktable	300kg
Machine weight	4000Kg

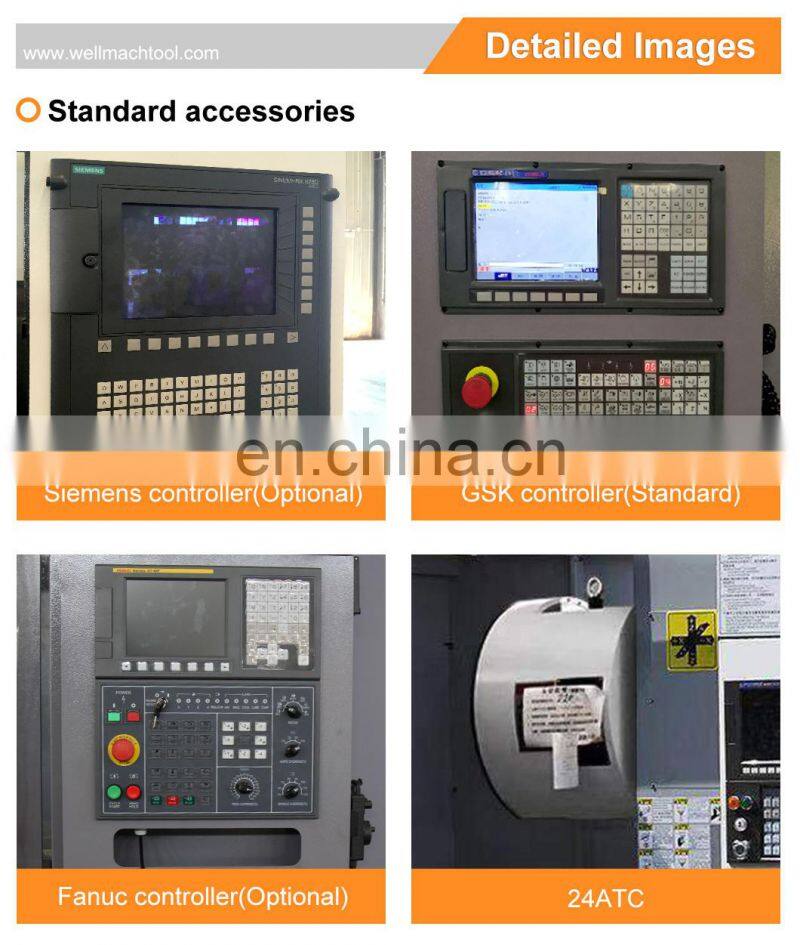

Standard accessories:

1.GSK218M controller system
2.80~8000rpm BT40 spindle
3.Umbrella 16 ATC
4.Linear rolling guide

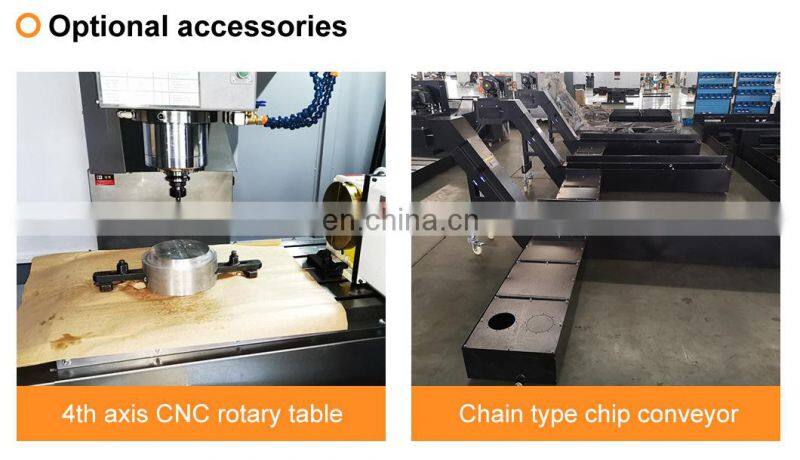

Optional accessories:

1.Siemens808d,Siemens828d or Fanuc OI-MF controller
2.4th axis
3.Disc type ATC: 24T

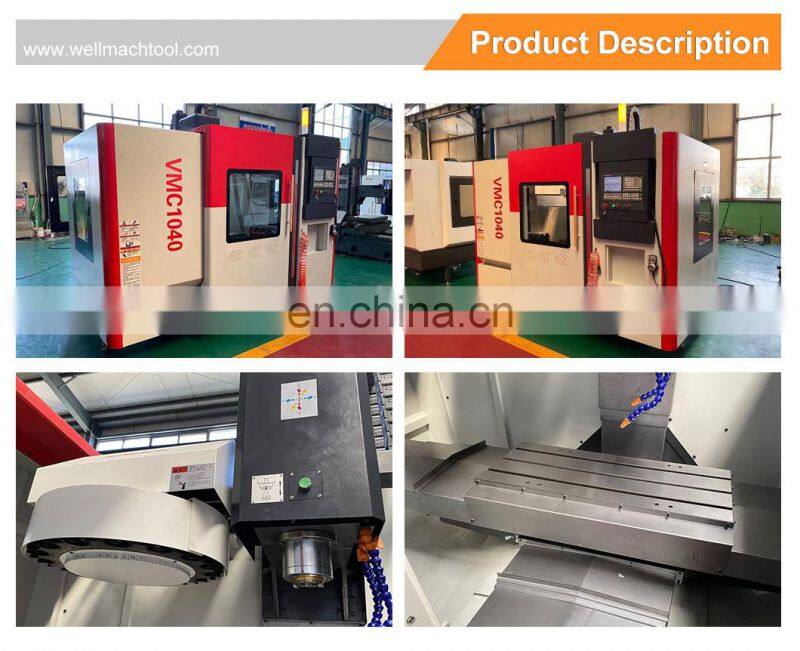

Machine Show:

Machine pics

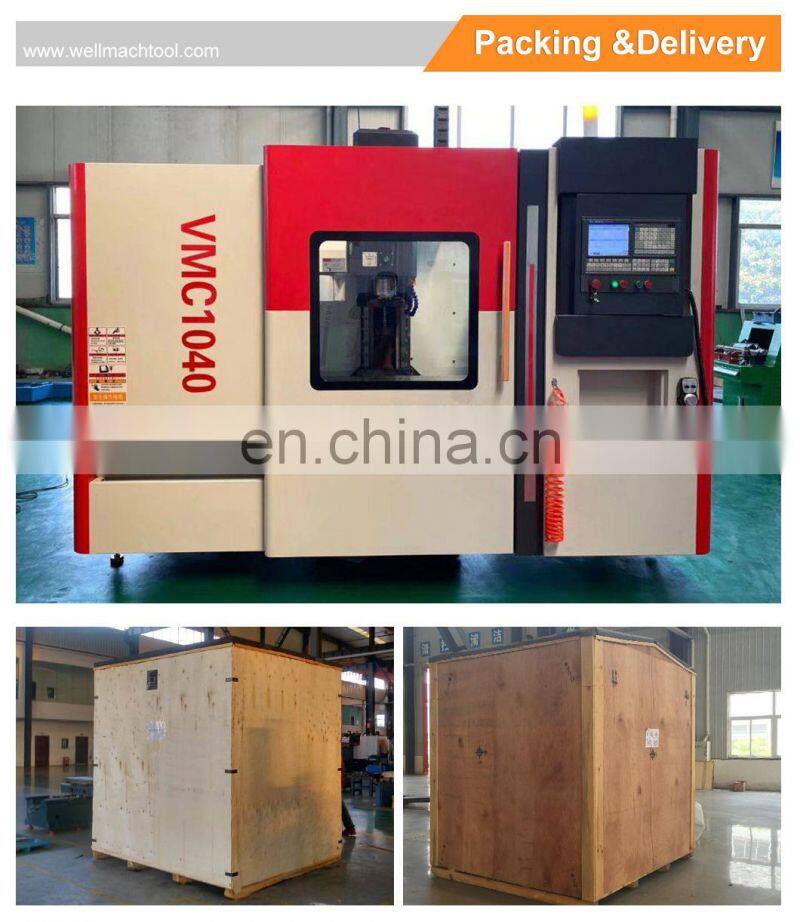

Packing & Delivery

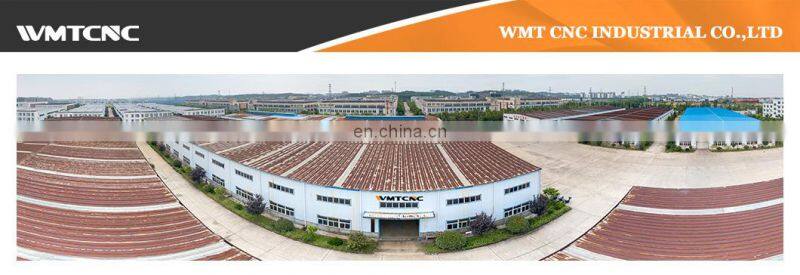

Company Profile

Jingjiang Fuji Technology Co., Ltd.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
