High Precision HMC500 CNC Double Positions Horizontal Machining Center CNC Horizontal Machining Center
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
HMC800 High Precision CNC Double Positions Horizontal Machining Center CNC Horizontal Machining Center
-
HMC630D Hot Sales Heavy Cutting Single Position CNC Horizontal Machining Center With CE
-
HMC630D High Precision CNC Horizontal Machining Center
-
High Precision HMC500 CNC Double Positions Horizontal Machining Center CNC Horizontal Machining Center
-
High Precision HMC630 CNC Double Positions Horizontal Machining Center Machine CNC
-
High Precision HMC800 Heavy Duty Horizontal Machining Center CNC Horizontal Machining Center
Product Description
Product Description

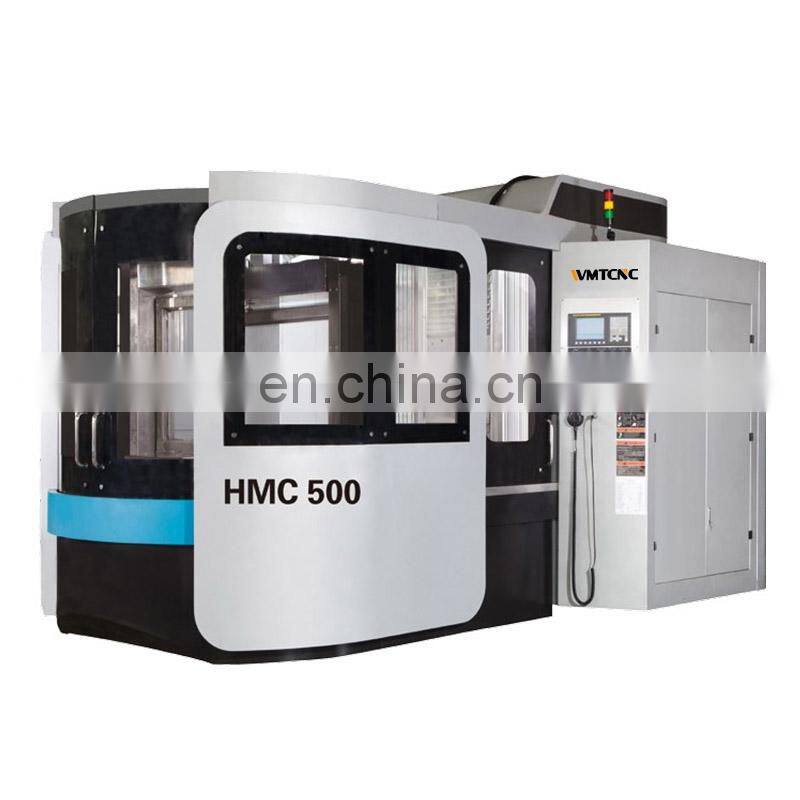

CNC Double positions horizontal machining center HMC500
Main features:
1. Flexible processing capacity;
2. High machining accuracy;
3. High processing productivity;
4. Reduce operator labor;
5. Complex machined parts;
6. Stable processing quality.
Specification | Unit | HMC500 | |
Table size | mm | 500×500 | |
T slot | mm | 5-14-100 | |
Max. load | Kg | 500 | |
Table quantity | 2 | ||
Exchange time of table | sec | 14 | |
Min. increment | degree | 1 | |
Highest speed of rotary table | rpm | 16.7 | |
X,Y,Z | mm | 800×650×800 | |
Max. swing dia. Of workpiece | mm | 800 | |
Distance from spindle axis to table surface | mm | 85~735 | |
Distance from spindle nose to table center | mm | 150~950 | |
Cutting feed range | Mm/min | 1-12000 | |
Rapid feed X/Y/Z | Mm/min | 32/32/32 | |
taper | BT50 | ||
Highest speed | r/min | 3500 | |
Motor power | Kw | 15/18.5 | |
Output Torque | N.m | 235 | |
Max. Drilling dia. | mm | 40 | |
Max. Tapping dia. | mm | M24(cast iron) | |
M20(carbon steel) | |||
Positioning accuracy | mm | 0.015(X,Y,Z) | |
10arcsec(B) | |||
Repeat positioning accuracy | mm | 0.008 | |
2arcsec(B) | |||
Tool magazine type | arm type | ||
Magazine capacity | 24pcs | ||
Tool dia. | 110/220mm | ||
Tool length | 400mm | ||
Tool weight | 25kgs | ||
Air pressure | 0.5-0.7mpa | ||
Machine weight | 10000kgs (double positions) | ||
Overall dimension | 5200×3800×2900 (mm) | ||
Detailed Images
Our horizontal machining center HMC500 is well packed into ploywood cases.
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
