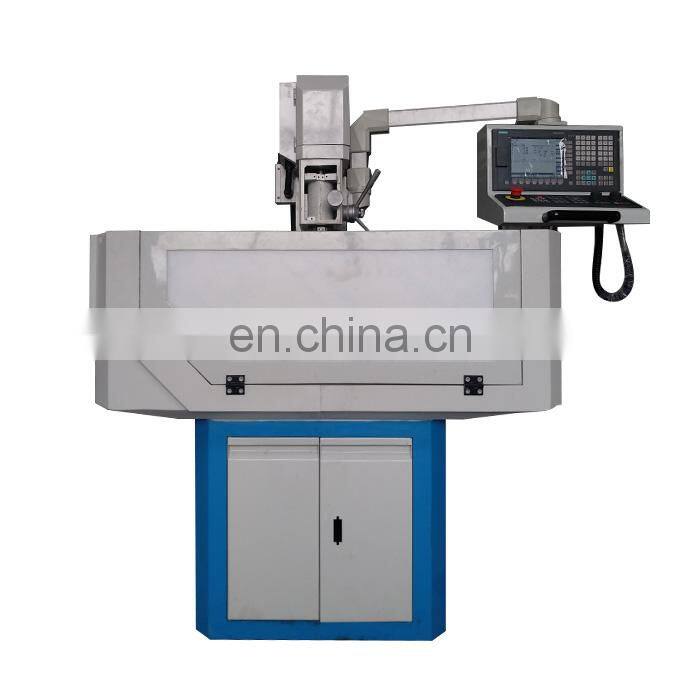

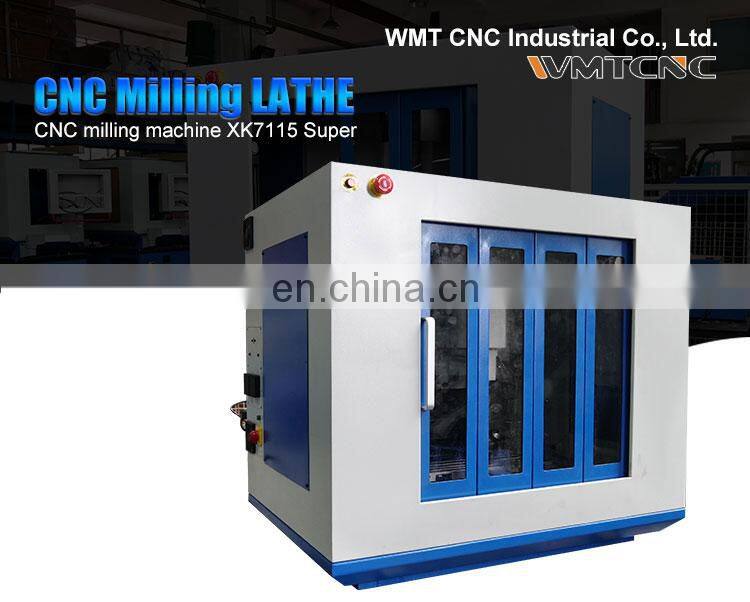

Automatic Mini Cnc Milling Machine XK7115-super for Metal Working
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Small Milling XK7125 Vertical CNC Milling Machine Price With CE
-
XK7113A 3 Axis Cnc Metal Milling Machine for Hobby Users
-
XK7113C Cnc Metal Milling Machine for Household Use With Siemens 808DA Control System
-
Mini Cnc Milling XK7113A Hobby CNC Milling Machine for Metal Working in China
-
XK7113D 12000rpm High Spindle Speed Small Milling Mini CNC Mill Machine With Engraving Function
-
Cnc Milling Machine 2022 XK7136 Cnc Milling Machine Taiwan From China Factory With Competitive Price

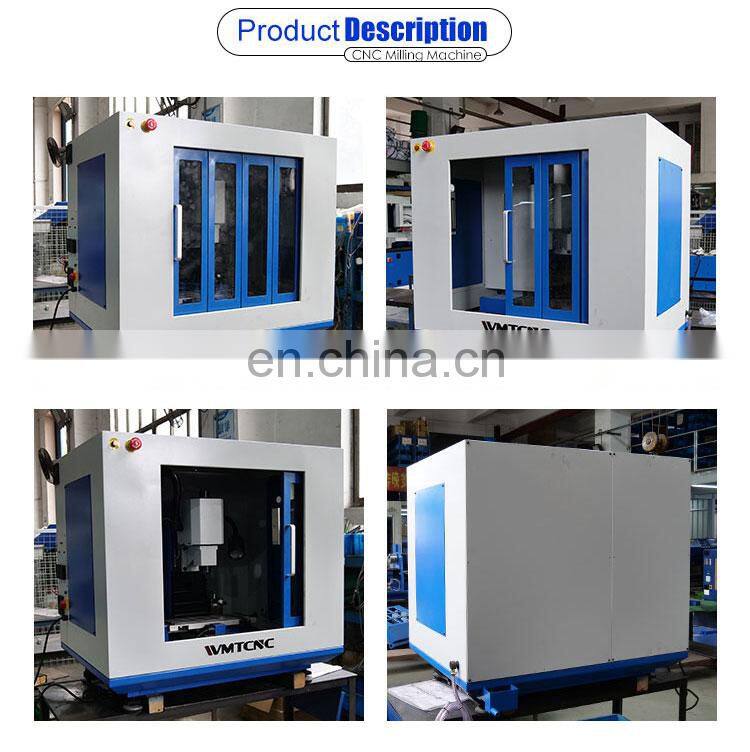

Product Description
Products Description
Machine features of cnc milling machine:
1.High and Low step speeds available and stronger torque for low step speed
2.3-aixs transmission by precision ball lead-screw with servo motor
3.Wo style of tool change available,manually and pneumatically
4.Various famous CNC controllers supplied with more choice
5.Machine stand and machine body are designed separately for easy and flexible installment by user
2.3-aixs transmission by precision ball lead-screw with servo motor
3.Wo style of tool change available,manually and pneumatically
4.Various famous CNC controllers supplied with more choice
5.Machine stand and machine body are designed separately for easy and flexible installment by user
Specification | XK7115 Super |
Worktable size | 400×125mm |
T-slot size | 3×8×35 |
Loading capacity of worktable | 20kg |
X axis travel | 260mm |
Y axis travel | 110mm |
Z axis travel | 180mm |
Distance from spindle nose to worktable surface | 60-240mm |
Distance from spindle center to column | 125mm |
Spindle taper | MT2 |
Spindle power | 500w |
Spindle speed | 100-7000r/min |
X/Y/Z rapid feed speed | 2000mm/min |
X/Y/Z turning speed | 500mm/min |
X/Y/Z axis torque | X/Y:1.35 Nm Z: 2.2Nm |
Positioning accuracy | 0.015mm |
Re-positioning accuracy | 0.01mm |
Voltage | 230/120V |
N.W/G.W | 280/340kg |
Machine size (LxWxH) | 1040×860×940mm |
Packing size (LxWxH) | 1170×960×1100mm |

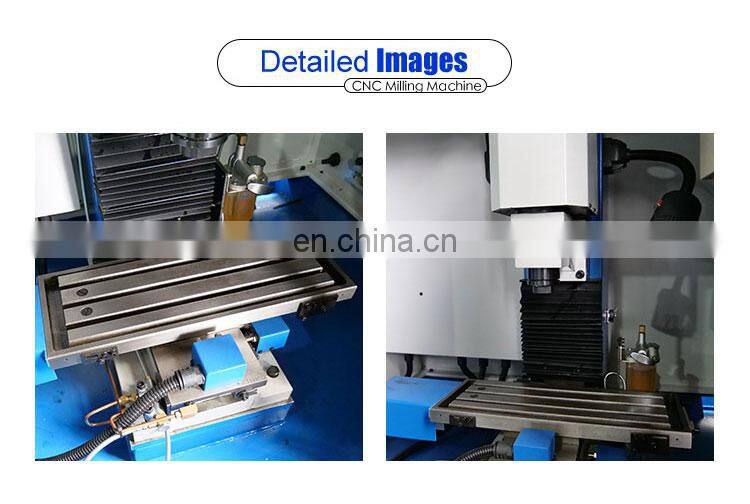

Detailed Images

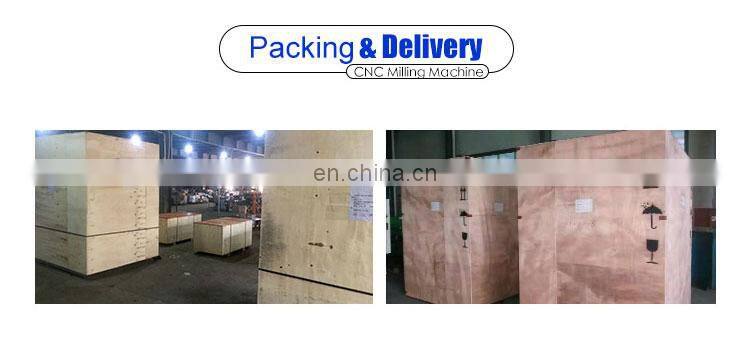

Package&Delivery
Company profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
