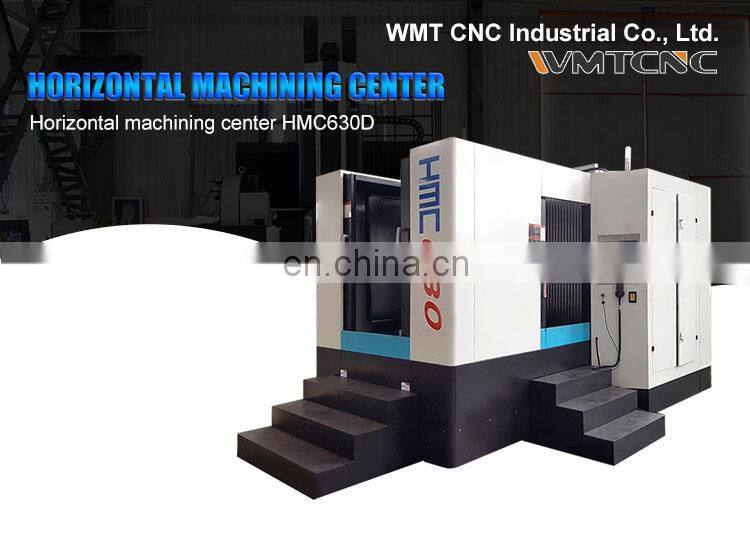

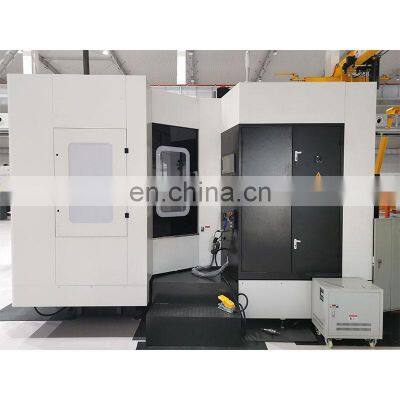

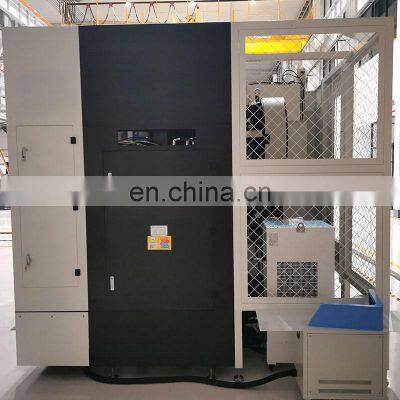

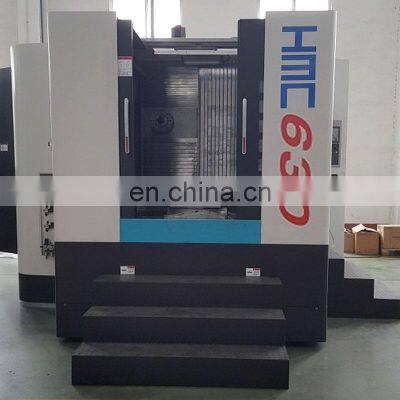

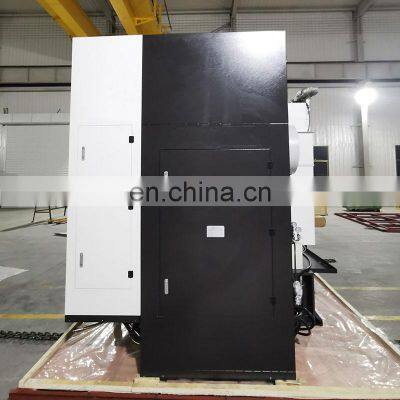

HMC630D hot sales heavy cutting single position CNC horizontal machining center with CE
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
HMC630D High Precision CNC Horizontal Machining Center
-
High precision HMC500 CNC double positions horizontal machining center CNC horizontal machining center
-
High precision HMC630 CNC double positions horizontal machining center machine CNC
-
High precision HMC800 heavy duty horizontal machining center CNC horizontal machining center
-
High precision HMC1000 CNC heavy duty horizontal machining center CNC horizontal machining center
-
China factory sale HMC630 CNC double positions cnc horizontal machining center

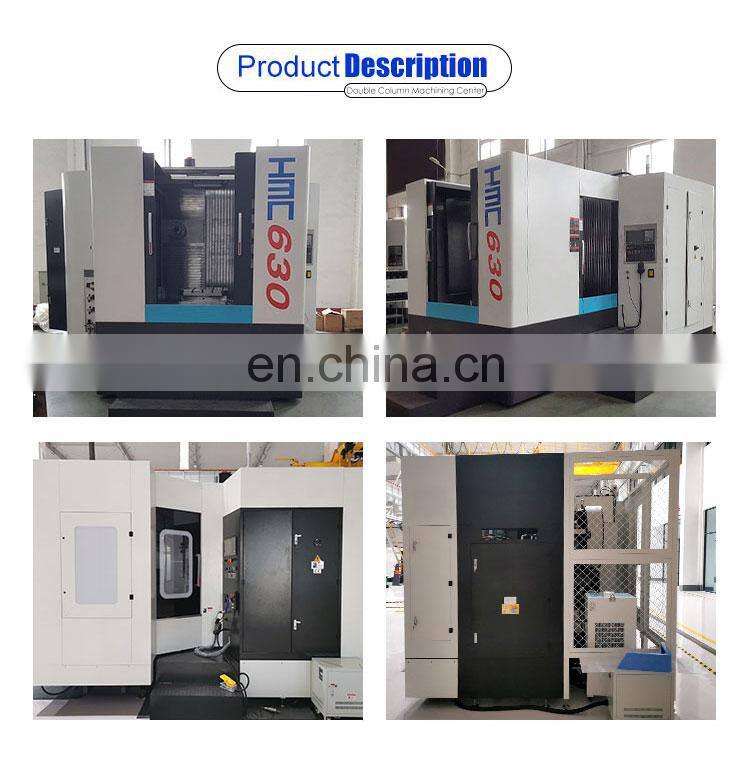

Product Description
Products Description
Machine features of horizontal machining center :
The machine is a single-position cnc horizontal machining center, using inverted T-type bed, table rotary exchange, Fanuc CNC system control, with automatic table exchange, turntable automatic indexing, spindle stepless speed and other functions.
Can be straight, diagonal and circular interpolation cutting, complete milling, boring, drilling, expansion, hinge, tapping and other processes to achieve four-sided processing. For automotive, aerospace, metallurgical mining, machine tool manufacturing and other industries of the box parts and complex parts of the processing.
Machine tools with high efficiency, high precision, high rigidity and so on, is the enterprise to improve work efficiency and improve the flexible processing of parts of efficient equipment, large and medium parts in the processing of the ideal equipment.
Specification | HMC630D |
table size | 630x630mm |
table numubers | 1pc |
Max.load of table | 1200kg |
T slot | 5-18-125 |
talbe indexing | 1° |
table Max. speed | 16.7rpm |
table travel(left/right) X | 1000mm |
Headstock travel(up/down) Y | 800mm |
table travel(Front/back) Z | 800mm |
Max. workpiece Dia. | 1000mm |
distance from spindle axis to table surface | 100-900mm |
distance from table center to spindle nose | 150-950mm |
spindle taper | BT50 |
spindle speed | 3500rpm |
Max.spindle torque | 235N.M |
main motor power | 15/18.5KW |
Max.drilling Dia. | 50mm |
Max. tapping Dia.(casting) | M30mm |
Max. tapping Dia.(stell) | M24mm |
cutting feed | 1-12m/min |
rapid speed | 24m/min |
standard arm type | 24nos |
Max. tool Dia. | 125mm |
Max. empty tool Dia. | 250mm |
Max.tool length | 400mm |
Max. tool weight | 25kg |
Machine overal dimensions | 4600x3300x3100mm |
Machine weight | 14000kg |
x,y,z axis accuracy | 0.01mm |
B axis accuracy | 15Arc sec |
Reapt x,y,z axis accuracy | 0.005mm |
Peapt B axis accuracy | 4Arc sec |
Standard configuration
Taiwan Parkson single rotary table,Taiwan belt-type spindleBT50,
Taiwan arm type tool magazine with 24 tools capacity
Taiwan Hiwin linear guide and ballscrew, Automatic center lubrication,
Japan NSK bearings, Electrical handwheel,
Screw type chip conveyor on both sides, round coolant nipple,
Schneider Electric parts, Three color alarm lights, LED light, RS232, DNC
Taiwan arm type tool magazine with 24 tools capacity
Taiwan Hiwin linear guide and ballscrew, Automatic center lubrication,
Japan NSK bearings, Electrical handwheel,
Screw type chip conveyor on both sides, round coolant nipple,
Schneider Electric parts, Three color alarm lights, LED light, RS232, DNC

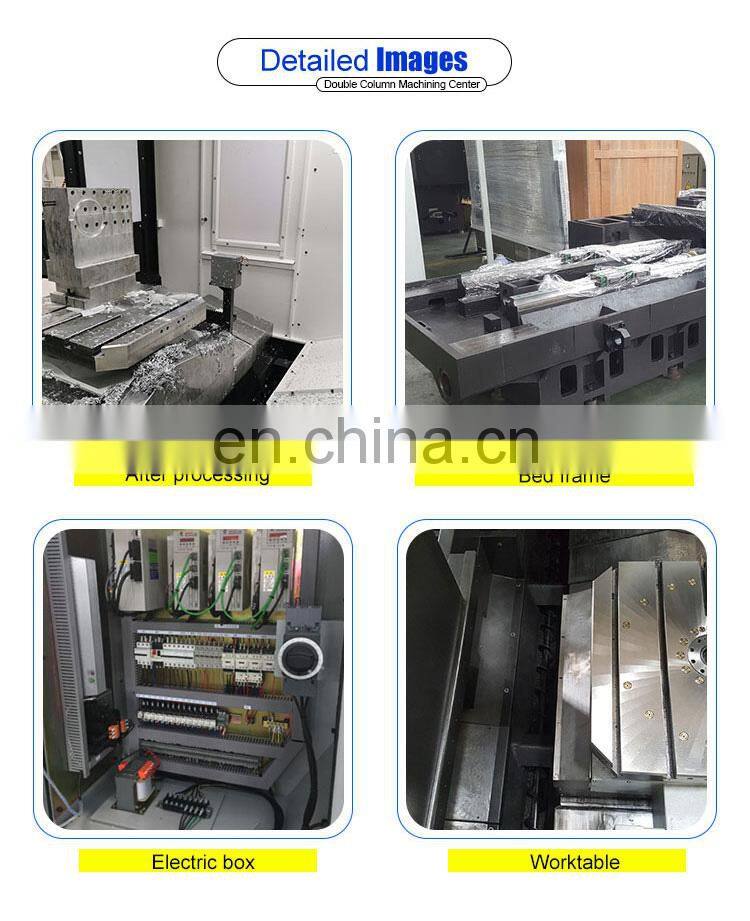

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
