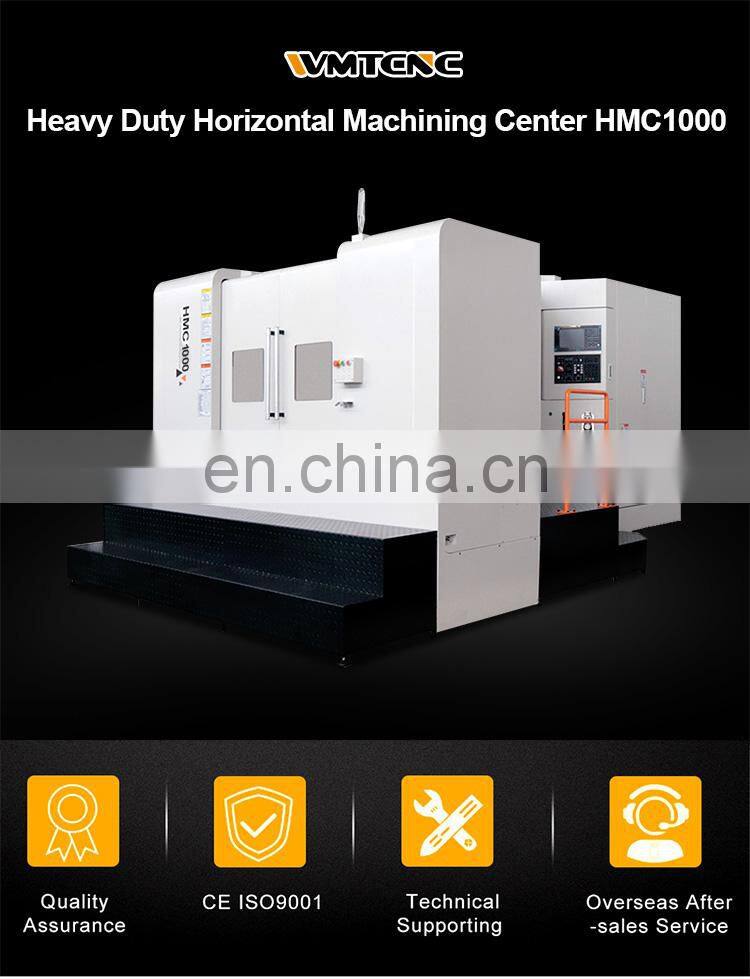

High precision HMC1000 CNC heavy duty horizontal machining center CNC horizontal machining center

Name: High precision HMC1000 CNC heavy duty horizontal machining center CNC horizontal machining center
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

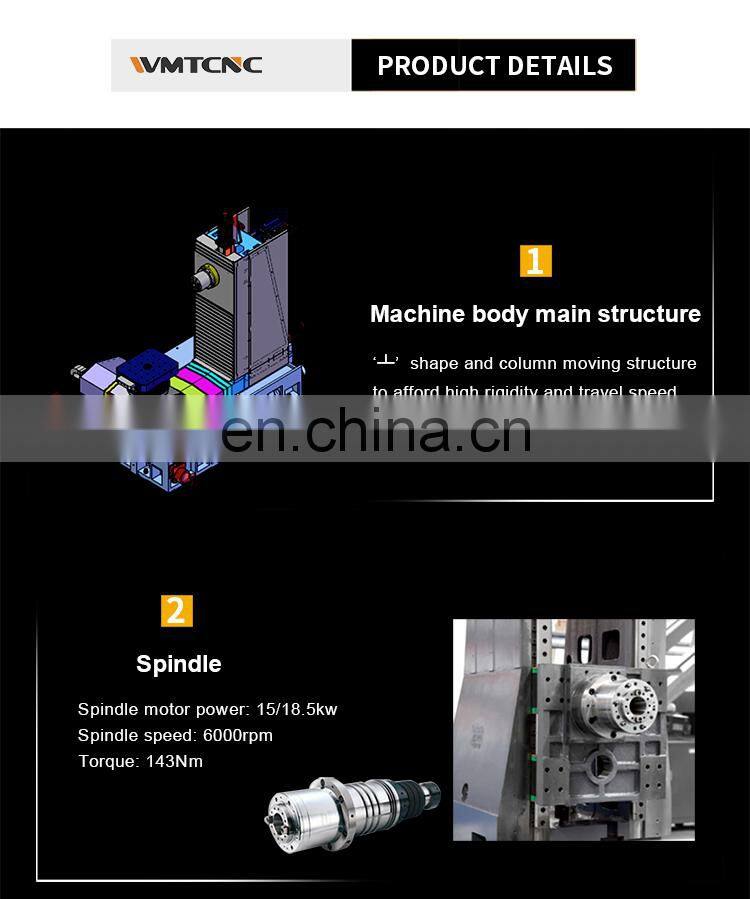

Main features: 1. Machine body main structure, ‘┻’ shape and column moving structure to afford high rigidity and travel speed.

2. Standard machine with spindle house oil cooling system to reduce heat distortion during working and keep the stable machining accuracy.

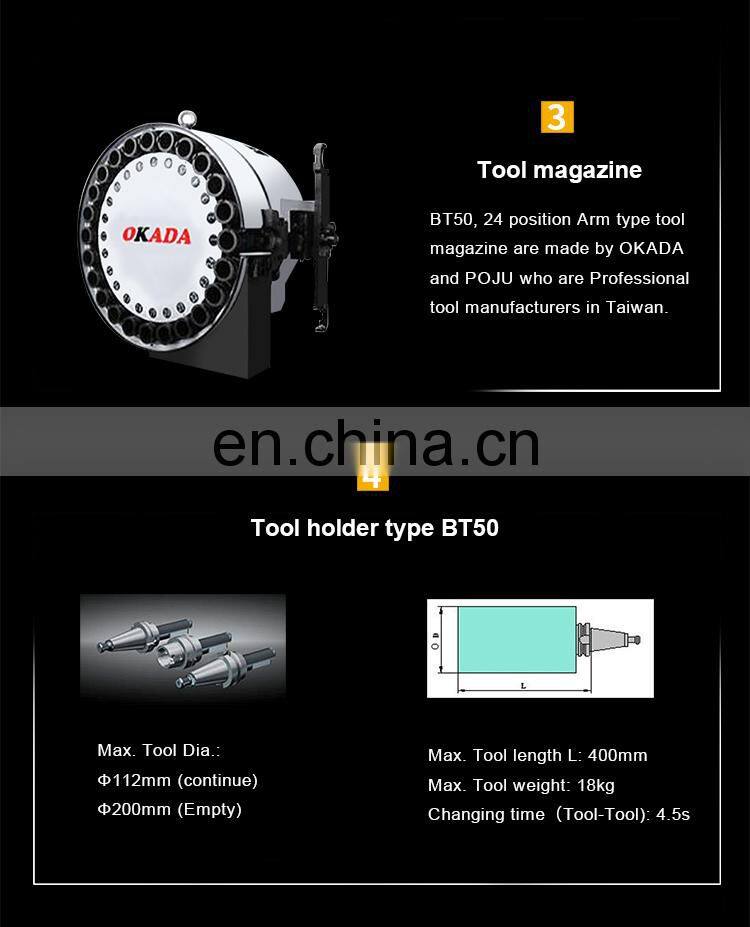

3. Tool magazine, BT50, 24 position Arm type tool magazine are made by OKADA and POJU who are Professional tool manufacturers in Taiwan.

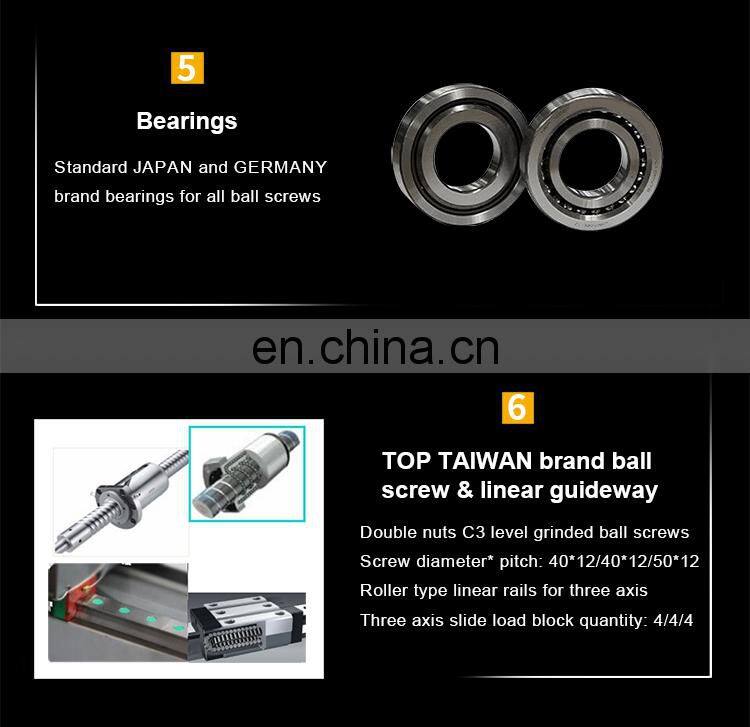

4. Standard JAPAN and GERMANY brand Bearings for all ball screws.

5. TOP TAIWAN brand Ball screw & linear guideway.

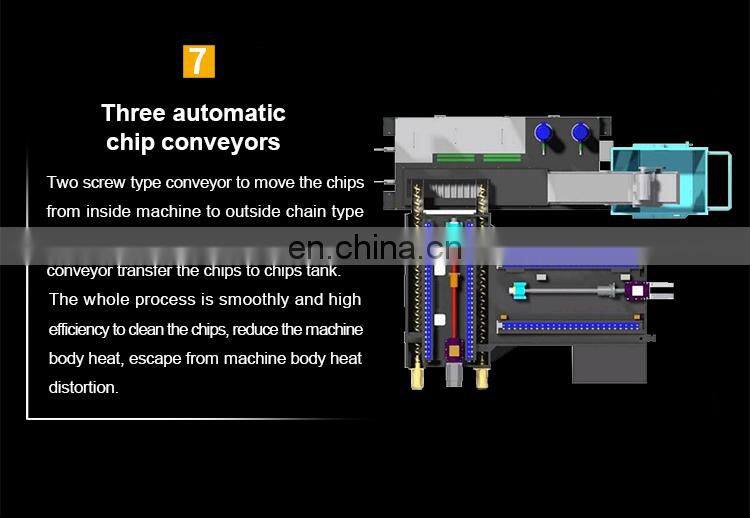

6. Three Automatic chip conveyors, two screw type conveyor to move the chips from inside machine to outside chain type conveyor during working, and the outside chip conveyor transfer the chips to chips tank. The whole process is smoothly and high efficiency to clean the chips, reduce the machine body heat, escape from machine body heat distortion.

Specification	HMC1000
Worktable size (W×L)	1000×1000mm
Max. loading of worktable	1500kg
Workpiece clamping type	24*M16
Rotary diameter of workpiece	1750mm
TRAVEL
X/Y/Z axis	1600/1000/1000mm
Distance from spindle center to worktable surface	200-1200mm
Distance from worktable center to spindle nose	120-1120mm
SPINDLE
Spindle hole taper	BT50
Spindle speed range	20-6000rpm
Drive type (Spindle)	Belt type
Spindle power	15/18.5kw
FEED
X/Y/Z axis rapid feed speed	24/24/24m/min
B axis rapid feed speed	10m/min
TOOL MAGAZINE
Tool magazine model	Manipulator
Capacity	24T
Max. tools weight	15kg
Max. tools length	300mm
Tool change time	5s
ACCURACY
X/Y/Z axis positioning accuracy	±0.010mm
X/Y/Z axis re-positioning accuracy	±0.006mm
B axis division accuracy	10’’
B axis re-division accuracy	5’’
MACHINE SIZE
Machine dimension	5550×4800×3250mm
Machine weight	18000kg

Detailed Images

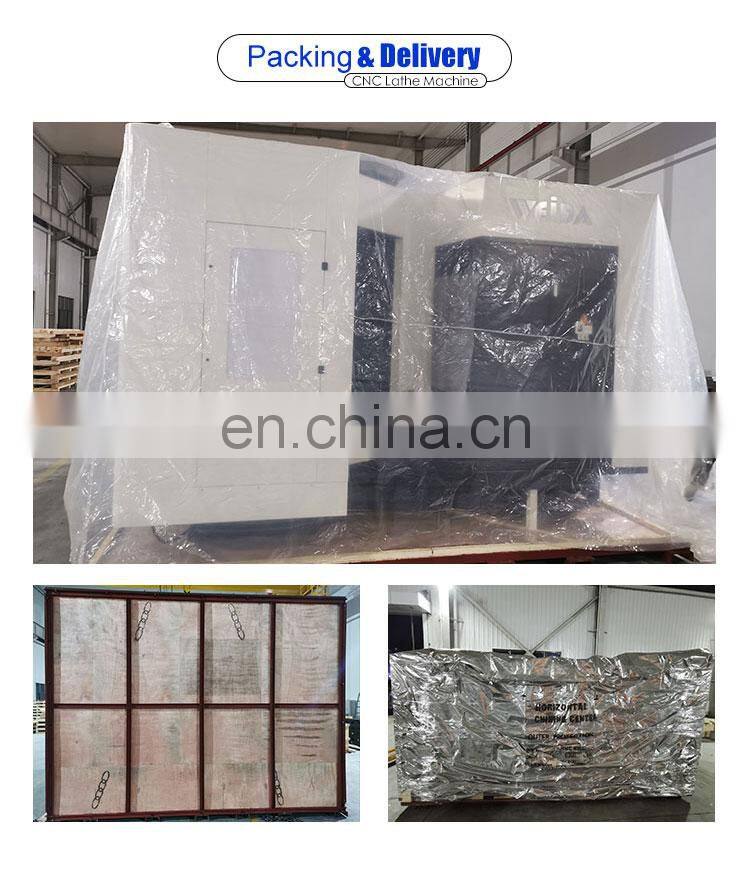

Our horizontal machining center HMC500 is well packed into ploywood cases.

Company Profile

Professional Service

FAQ

Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
