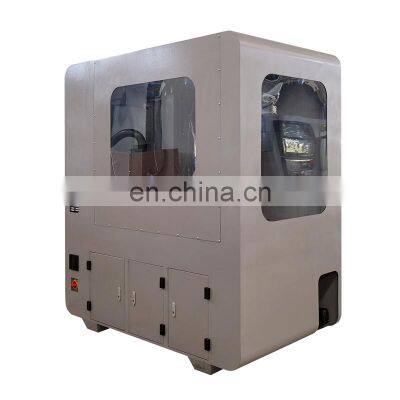

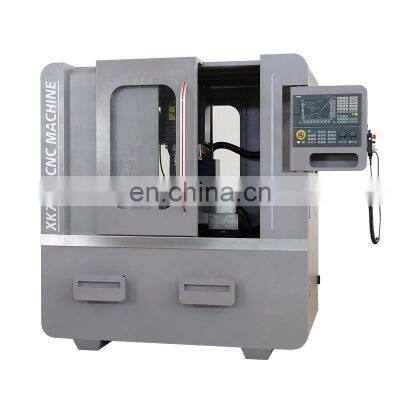

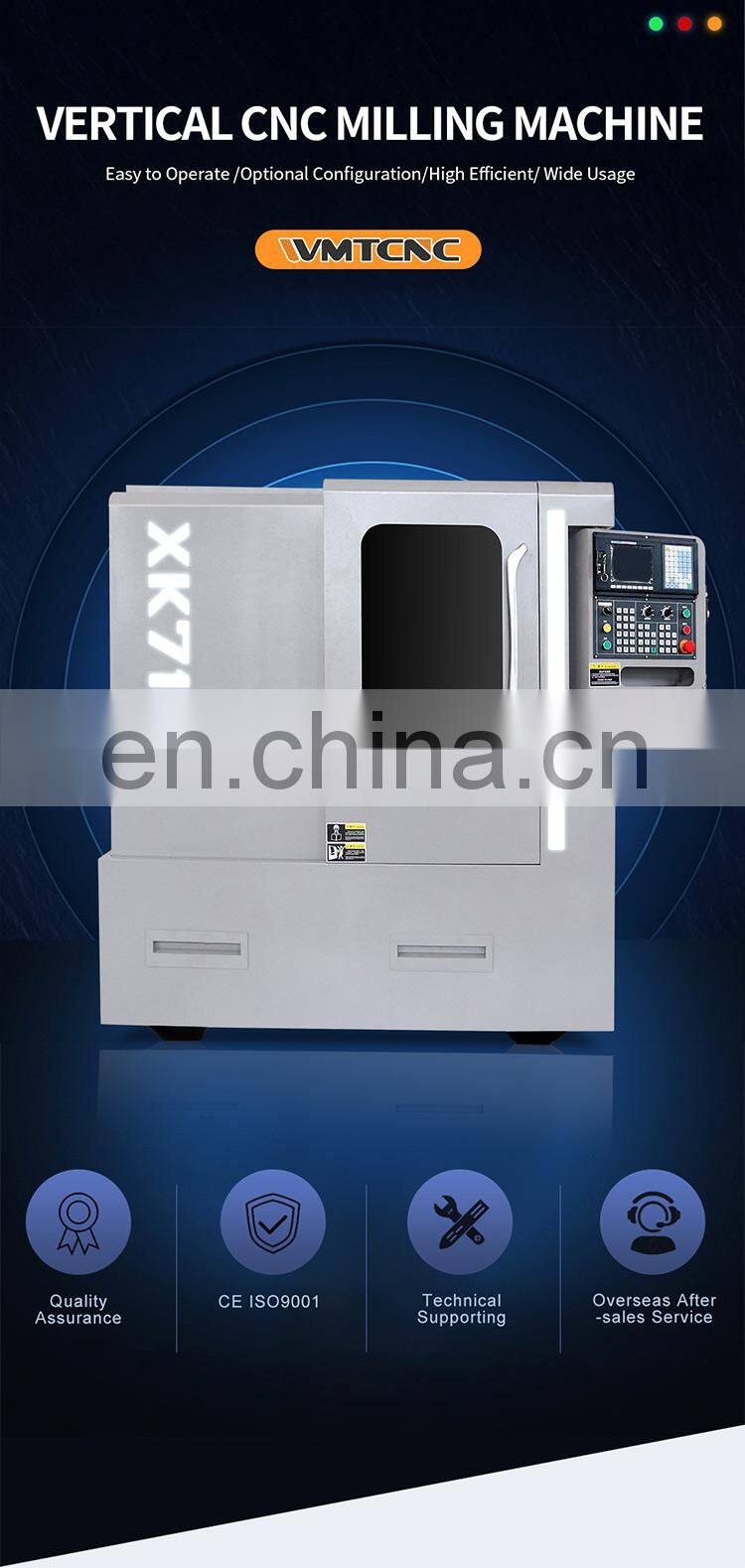

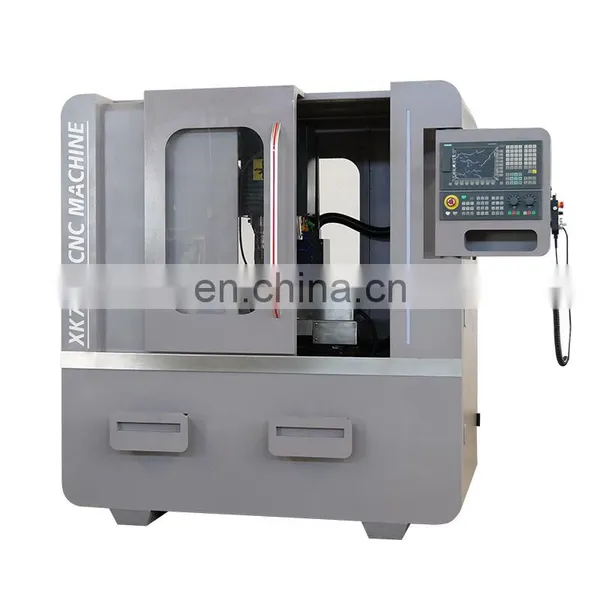

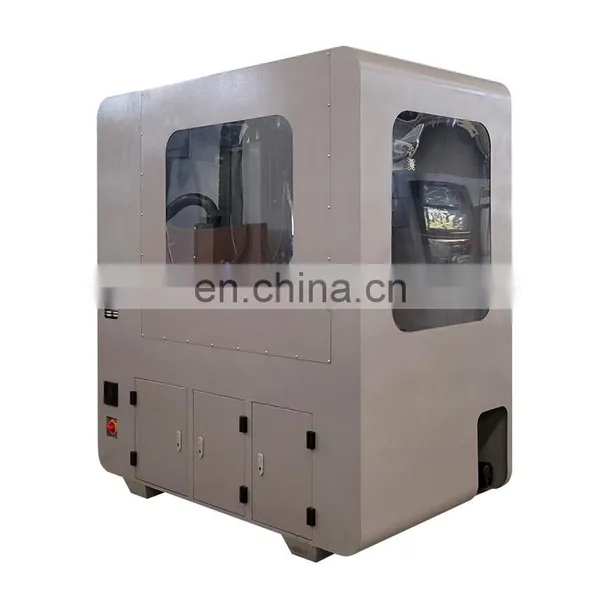

Mini Cnc Milling XK7116 High Spindle Speed 18000rpm Cnc Metal Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XK7124 Auto Tool Change Cnc Milling Machine 3 Axis Small Milling in SaleNegotiableMOQ: 1 -
XK7114 Mini 3 Axis CNC Milling Machine With CENegotiableMOQ: 1
-
Hot Sale High Precision 3 Axis CNC Milling Machine XH7126 With GSK Controller for Metal WorkingNegotiableMOQ: 1
-
XH7126 Fanuc Control 5 Axis Metal CNC Milling Machines With Tool ChangerNegotiableMOQ: 1
-
WMTCNC Vertical Mini Cnc Milling Machine XK7120 for Metal WorkingNegotiableMOQ: 1
Product Description
CNC Milling Machine Main Features:
1. 18000rpm high-speed electrical spindle unit.
2. With engraving function.
3. Suitable for casting and steel processing.
4. Lower noise and high precision.
5. Vertical controller panel with easy operation and beauty.
6. Suitable for mould machining and production in lots and engraving.
2. With engraving function.
3. Suitable for casting and steel processing.
4. Lower noise and high precision.
5. Vertical controller panel with easy operation and beauty.
6. Suitable for mould machining and production in lots and engraving.
Specification | XK7116 |
X axis travel | 350mm |
Y axis travel | 160mm |
Z axis travel | 400mm |
Spindle nose to table distance | 476.4mm |
Spindle center to column distance | 161mm |

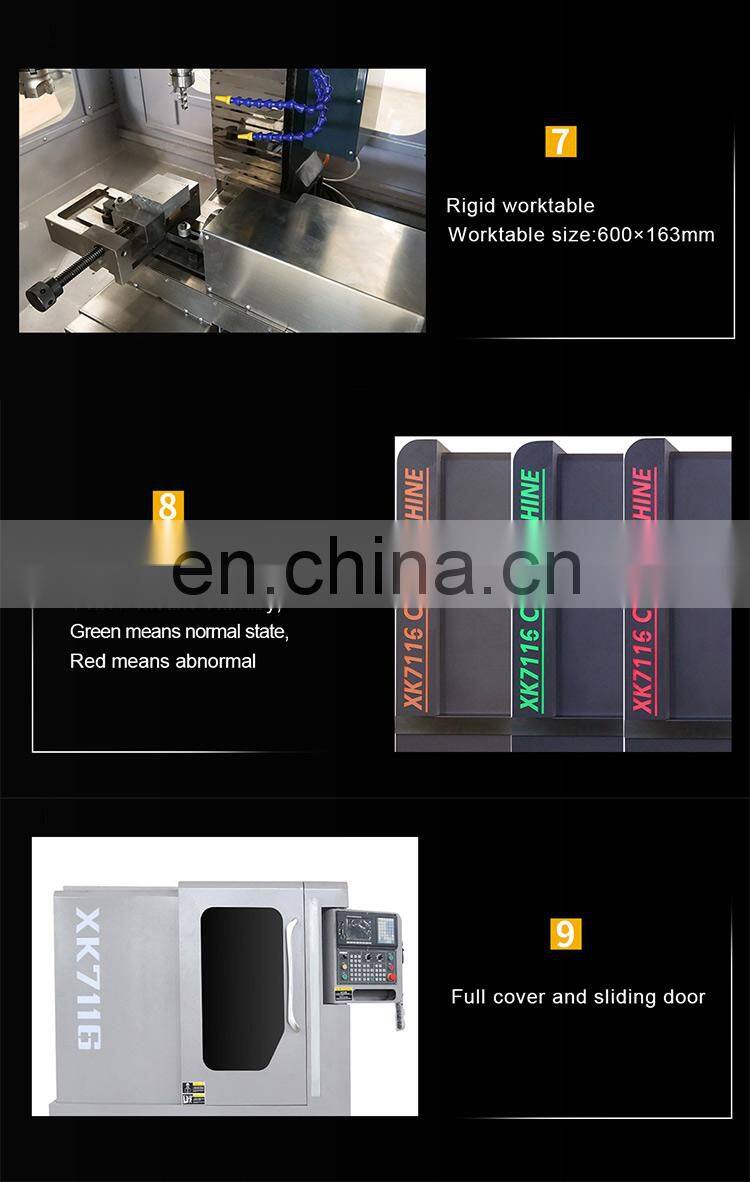

Worktable size | 600X163mm |
Main motor | 3KW |
Spindle speed | 18000r/min |
Coolant system | liuquid cooling |
Change tool way | Pnumetic |
Spindle taper | BT30 |

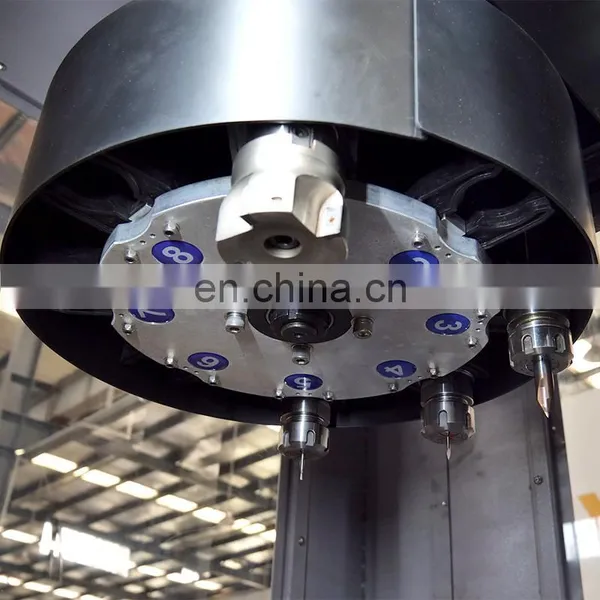

ATC Type | Umbrella type |
Capacity of ATC | 8T |
Air compressor pressure | 12L |
Lubricating pump capacity | 1L |
Working light | 10W |
Cooling pump | 40W |
Controller system | after1500MDC-4 |
XY axis servo motor torque | 2.4N.M |
Z axis servo motor torque | 4N.M |
XYZ fast moving speed. | 8 |
XY Linear guideway | （Taiwan HIWIN）15mm |
Z linear guideway | （Taiwan HIWIN）20mm |
X axis ball leadscrew | （Taiwan TBI）1605 |
YZ axis ball leadscrew | （Taiwan TBI）2005 |

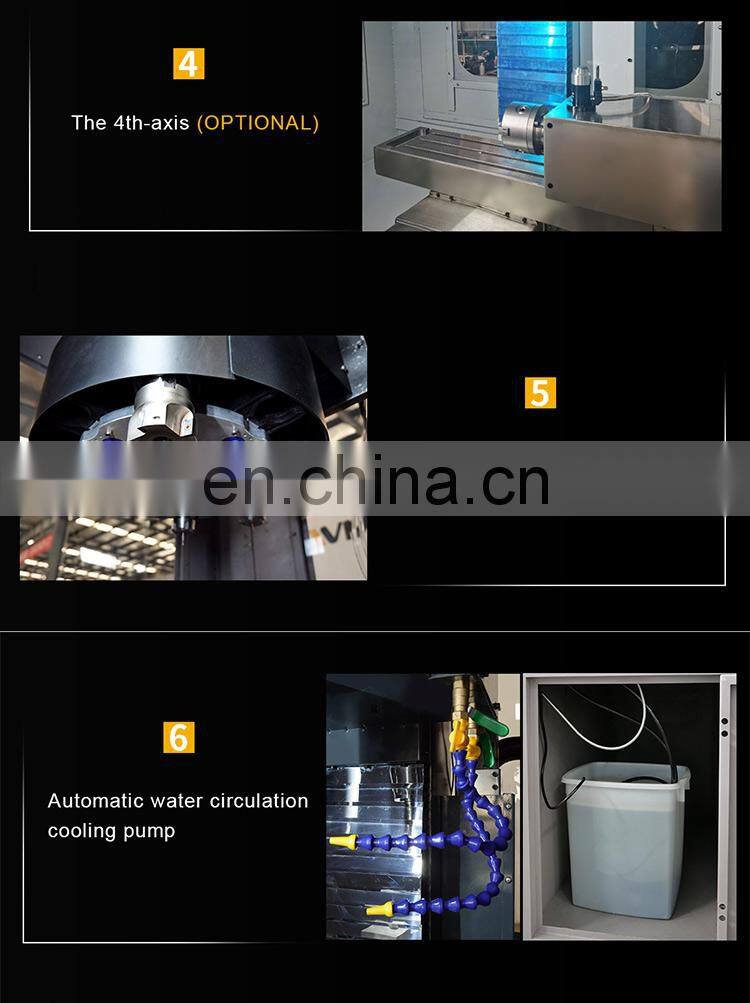

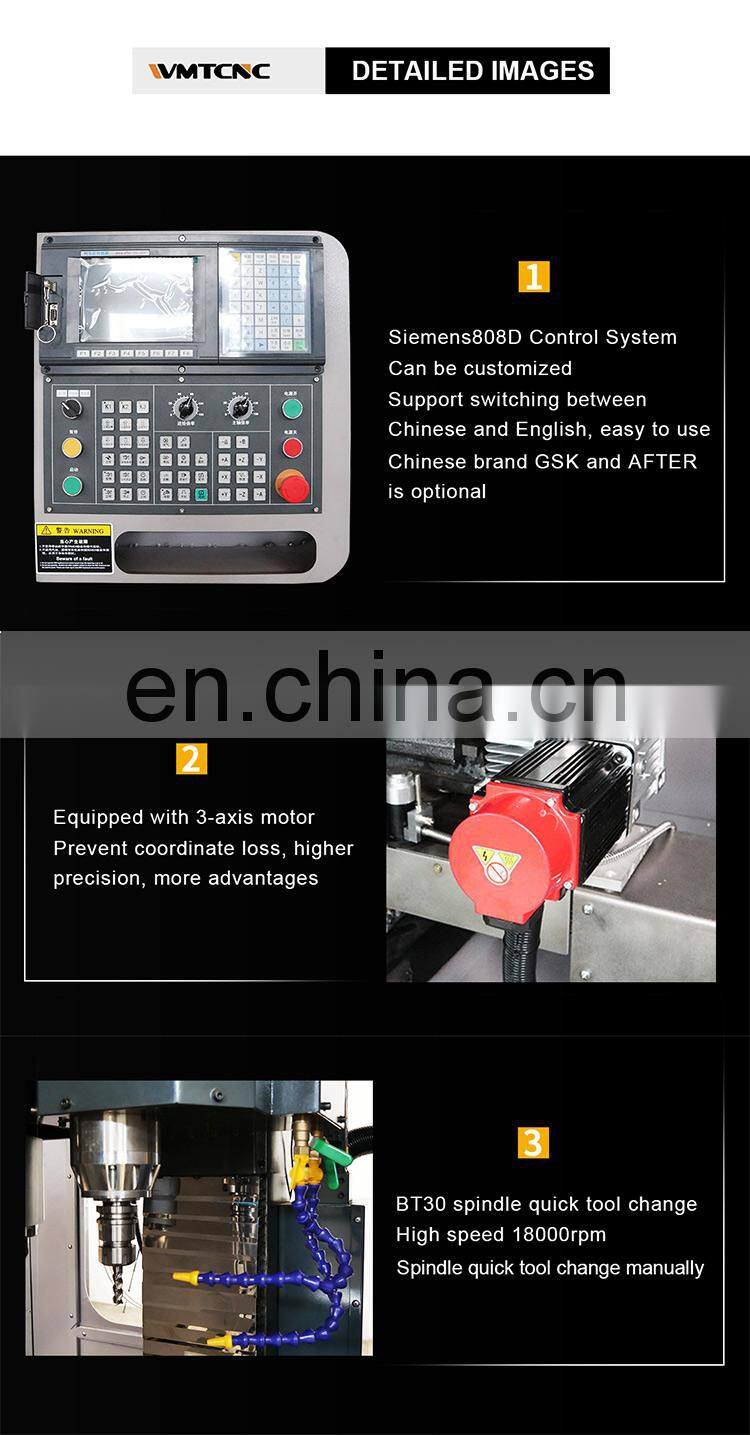

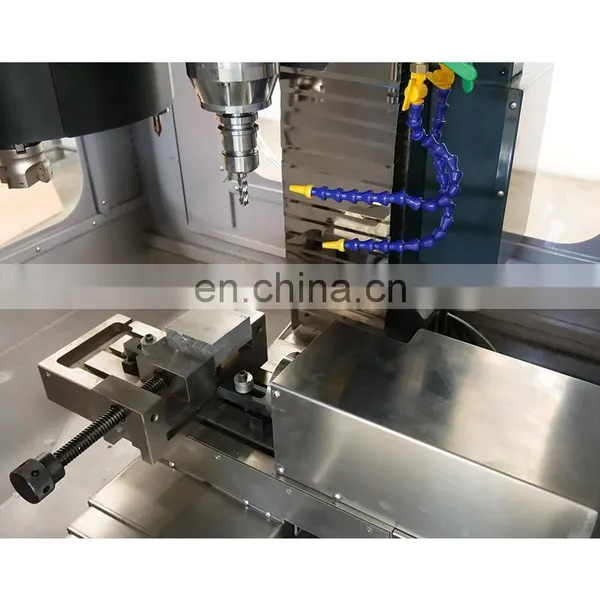

Detailed Images

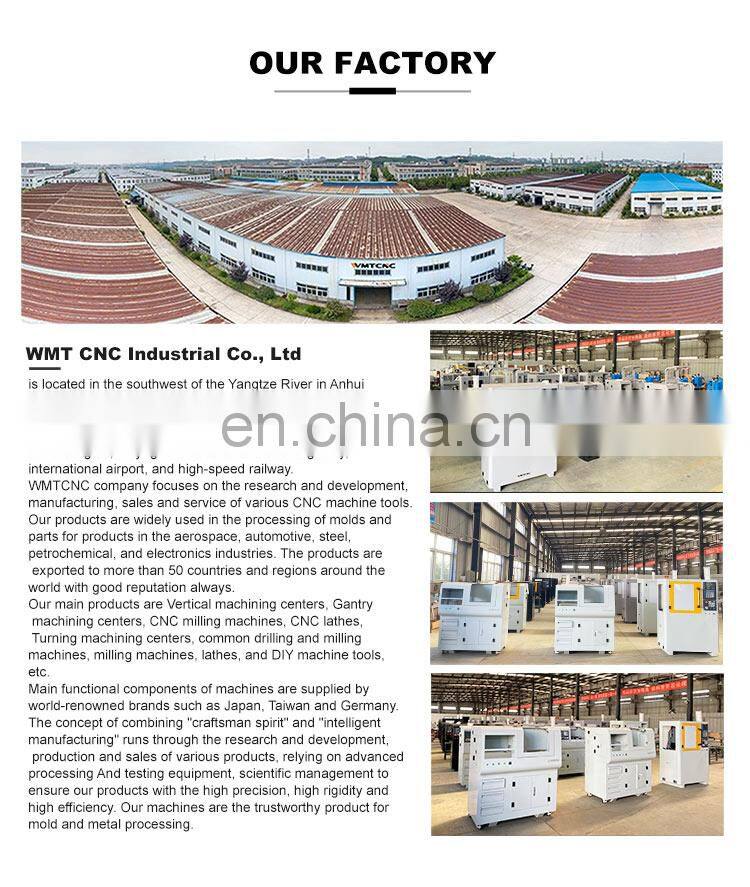

Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
