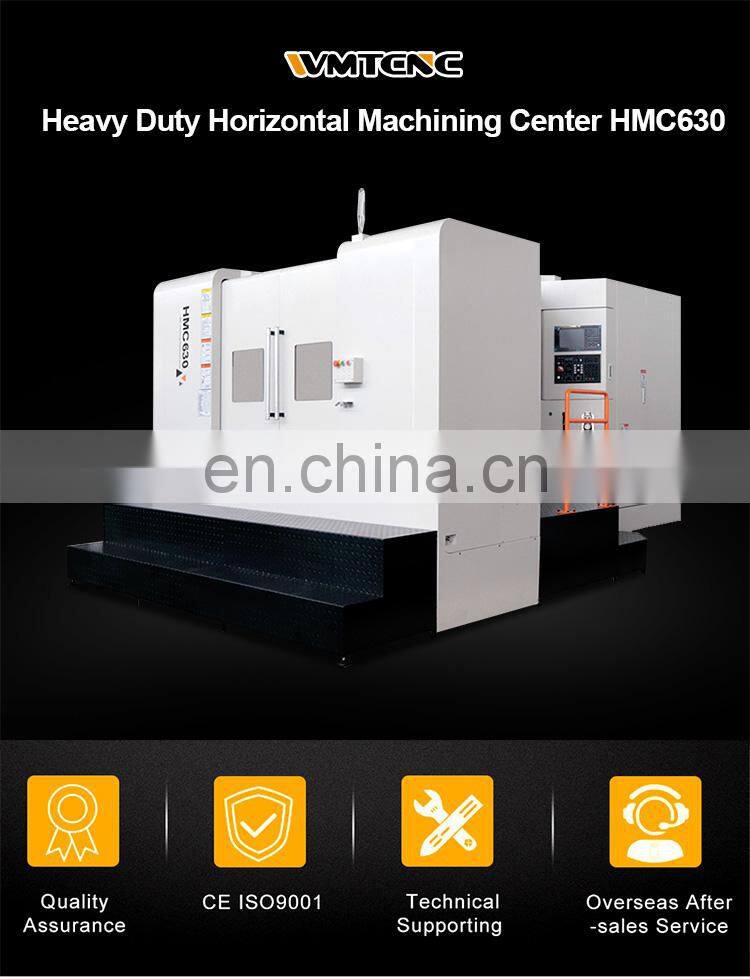

High precision HMC630 CNC double positions horizontal machining center machine CNC
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
High precision HMC800 heavy duty horizontal machining center CNC horizontal machining center
-
High precision HMC1000 CNC heavy duty horizontal machining center CNC horizontal machining center
-
China factory sale HMC630 CNC double positions cnc horizontal machining center
-
XH7122 BT30 linear guide 3 axis small CNC milling machine with CE
-
WMTCNC 3 axis precision small milling XH7122 metal mini cnc milling machine with CE
-
WMTCNC 3 axis precision linear guide XH7122 CNC milling machine with automatic tool changer
Product Description
Product Description
Main features:
1. Machine body main structure, ‘┻’ shape and column moving structure to afford high rigidity and travel speed.
2. Standard machine with spindle house oil cooling system to reduce heat distortion during working and keep the stable machining accuracy.
3. Tool magazine, BT50, 24 position Arm type tool magazine are made by OKADA and POJU who are Professional tool manufacturers in Taiwan.
4. Standard JAPAN and GERMANY brand Bearings for all ball screws.
5. TOP TAIWAN brand Ball screw & linear guideway.
6. Three Automatic chip conveyors, two screw type conveyor to move the chips from inside machine to outside chain type conveyor during working, and the outside chip conveyor transfer the chips to chips tank. The whole process is smoothly and high efficiency to clean the chips, reduce the machine body heat, escape from machine body heat distortion.
Specification | HMC630 | |
Worktable size (W×L) | 630×700mm | |
Max. loading of worktable | 900kg | |
Workpiece clamping type | 24*M16 | |
Rotary diameter of workpiece | 1380mm | |
TRAVEL | ||
X/Y/Z axis | 1050/750/900 | |
Distance from spindle center to worktable surface | 120-870mm | |
Distance from worktable center to spindle nose | 130-1080mm | |
SPINDLE | ||
Spindle hole taper | BT50 | |
Spindle speed range | 20-6000rpm | |
Drive type (Spindle) | Belt type | |
Spindle power | 15/18.5kw | |
FEED | ||
X/Y/Z axis rapid feed speed | 24/24/24m/min | |
B axis rapid feed speed | 10m/min | |
TOOL MAGAZINE | ||
Tool magazine model | Manipulator | |
Capacity | 24T | |
Max. tools weight | 15kg | |
Max. tools length | 300mm | |
Tool change time | 4.5s | |
ACCURACY | ||
X/Y/Z axis positioning accuracy | ±0.010mm | |
X/Y/Z axis re-positioning accuracy | ±0.006mm | |
B axis division accuracy | 10’’ | |
B axis re-division accuracy | 5’’ | |
MACHINE SIZE | ||
Machine dimension | 4800×3800×2800mm | |
Machine weight | 12000kg | |
Detailed Images
Our horizontal machining center HMC500 is well packed into ploywood cases.
