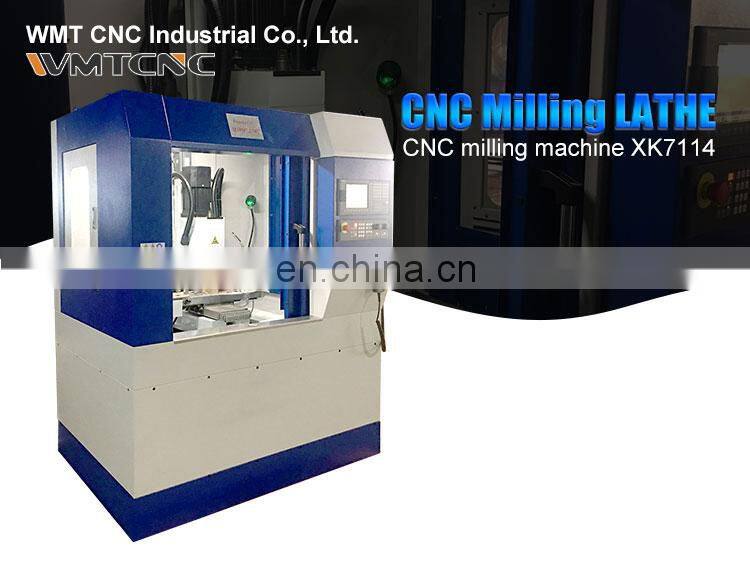

XK7114 Mini 3 Axis CNC Milling Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale High Precision 3 Axis CNC Milling Machine XH7126 With GSK Controller for Metal WorkingNegotiableMOQ: 1 -
XH7126 Fanuc Control 5 Axis Metal CNC Milling Machines With Tool ChangerNegotiableMOQ: 1
-
WMTCNC Vertical Mini Cnc Milling Machine XK7120 for Metal WorkingNegotiableMOQ: 1
-
Mini Cnc Milling XK7124 Economic CNC Milling Machine From China FactoryNegotiableMOQ: 1
-
Vertical CNC Milling Machines XH7140 With CE Certification for Metal WorkingNegotiableMOQ: 1
Product Description
Features:
Mini hobby CNC mill machine with servo spindle motor;
Designed for hobby, household and factory use;
Rigid tapping available
Specification |
XK7114 |
Worktable size |
200x600mm |
X axis travel |
350mm |
Y axis travel |
240mm |
Z axis travel |
310mm |
T slot |
12x45mm 4 |
Max.loading of worktable |
50kg |
spindle taper |
R8 |
spindle speed |
4000mm/min |
Distance from spindle center to column |
268mm |
Distance from spindle nose to worktable surface |
38-348mm |
Main motor(frequency motor) |
750W |
Feeding motor(step motor)X/Y/Z |
6Nm/6Nm/6Nm |
Fast raip speed |
4000mm/min |
feeding speed |
0-3000mm/min |
min set unit |
0.001mm |
Net weight |
580kg |
Machine size |
148/130/185cm |
