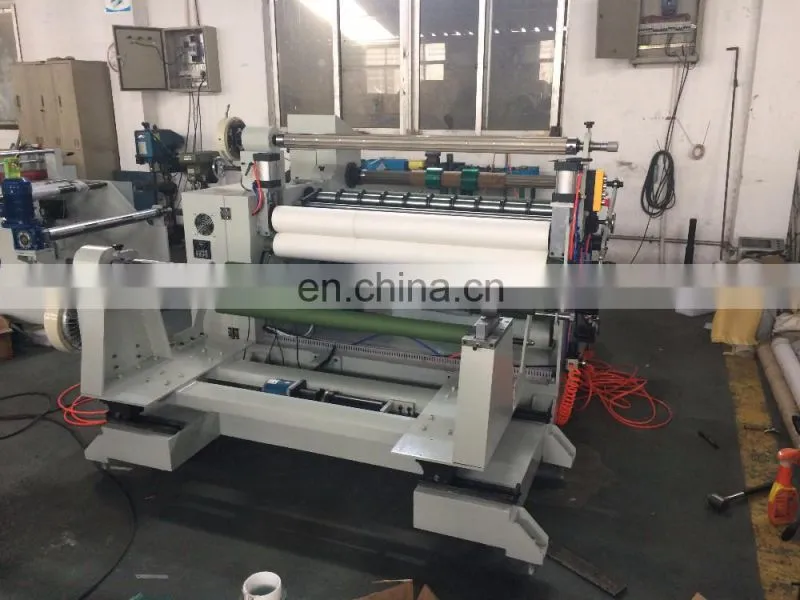

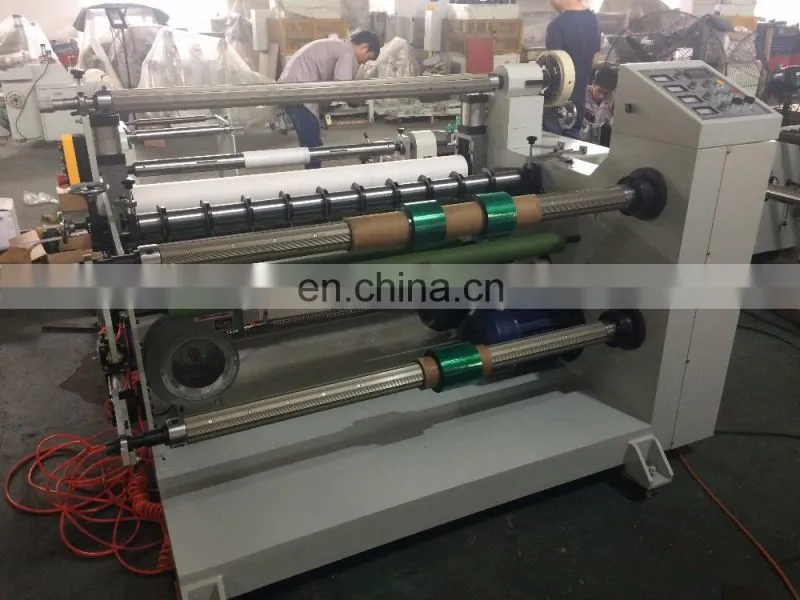

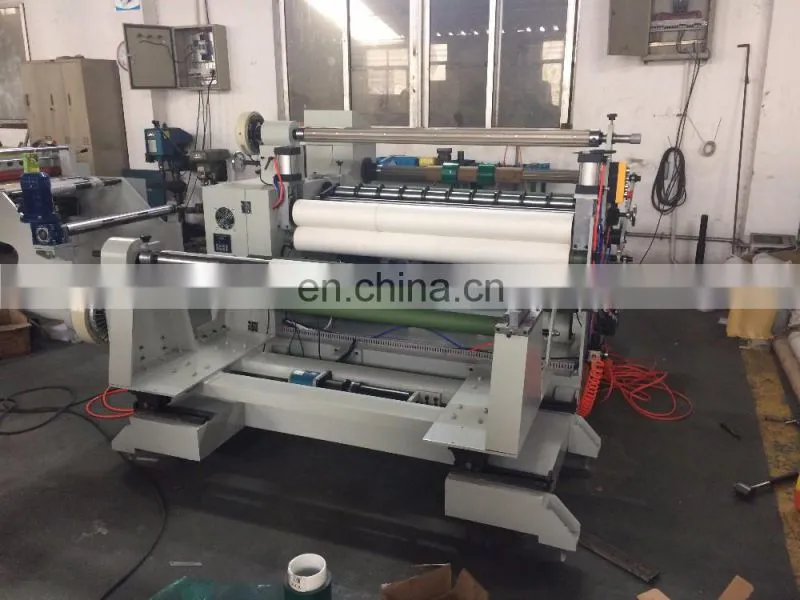

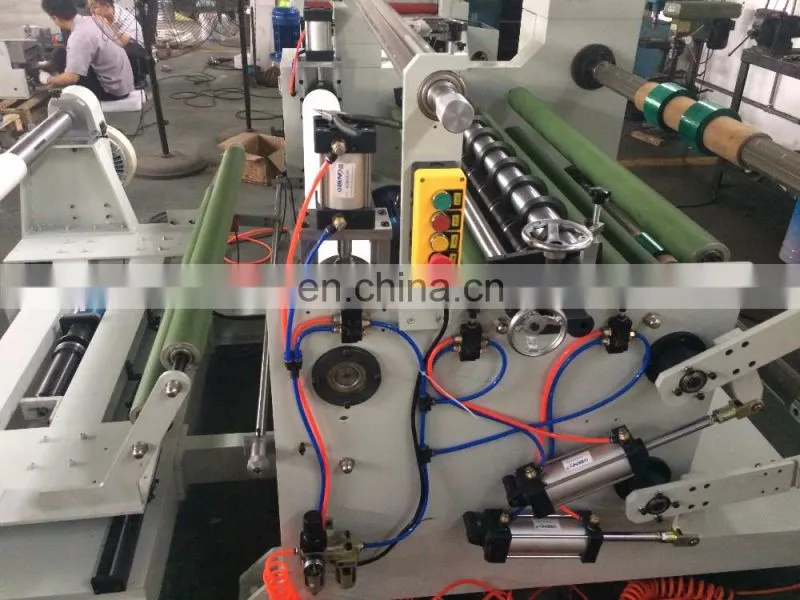

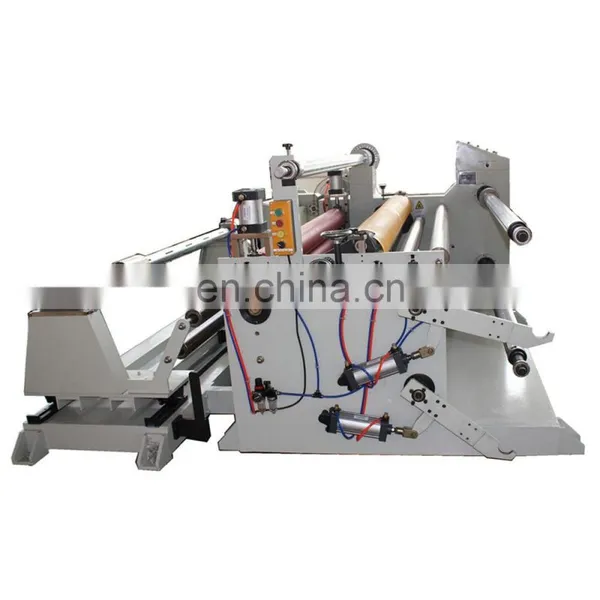

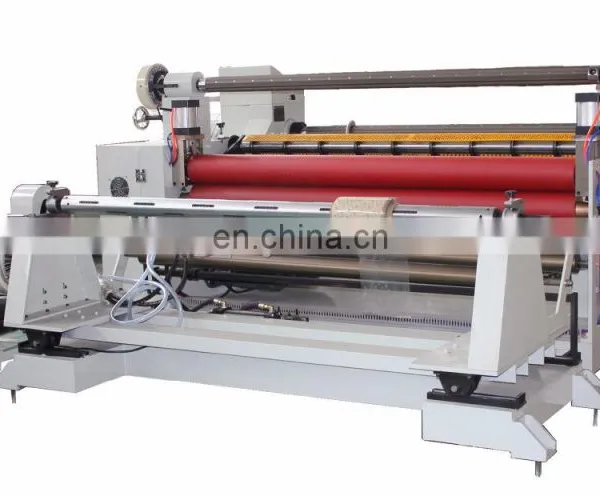

1800mm jumbo plastic paper film cloth fabric roll slitting rewinding machine

jumbo plastic roll slitting rewinding machine



DP-1800 film slitting and rewinding machine



Main Parameters

Model	DP-1800
Feeding width	1800mm
Main power	5.5kw
Speed	110m/min
Size	2400*2000*1300mm
Weight	2000kg
Unwind diameter	800mm
Rewind diameter	450mm
Precision	±0.10mm
Voltage	380v 50hz
Total power	8.5kw





Funcional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.



Charatertistics and Functions:
1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
6. Clockwise and counter-clockwise rewinding system

After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines





_______________________________________________________________________



1. Technique Data

Max material width : 1800mm

Feeding Diameter : 800 mm

Rewinding diameter : 450mm

Slitting accuracy :±0.1mm

Voltage:380V 50HZ

Main Motor Power :5.5kw (2 motor power)

Total Power: 8kw

Raw material Max hole diameter: 3”

compress air source:(0.4-0.6)Mpa(customer-owned)

Finished products Min. Width by standard slitting :25MM

Main Machine size :2650*1600*1600mm

Feeding Machine size : 2550*880*1200mm

Weight : 2.2T

2, Feeding Device

Feeding Air Expansion Shaft (3”Pad Shaft)                    2 Sets

magnetic powder brake 100N                                 1 Set

   Film release Magnetic Powder Brake 50N                      1 Set

Feeding Tension Control System                              2 Sets

Correction System(Taiwan Gas and Liquid correction)         1 set



3. Slitting Part

Upper Circular knife shaft Dia 65(upper slitter Dia 110*75*1)   1 Set

Under Circular knife shaft Dia 65(upper slitter Dia.90*65*10)1 set

Manual fine-tuning lock device



4. Reeling end

Receiving Flatulence axis(3″Pad shaft)               2 Sets

magnetic powder clutch 50N                            2 Sets

he receiving tension control system                   2 Sets

Main electrical machine (double motor)                     1 Set

Main Power inverter                        1 Set

Winding shaft and pneumatic up and down device(Rise,descend ,support)  1 Set

5. Operator control box                                 1 Set

6.Electric control panel                                 1 Set

7. Function Profile

frequency control of motor speed, operation more easy. Control more accurate.

Double receiving roller  center take up , rewinding

Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use

Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M

Independent fan waste discharge.

Double motor configuration,The scroll of rewinding can be positive and negative transfer .

8. Slitting part

Slitting up and down cutter    10 sets

Circle tool apron            10 sets

Slitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs



9.  Packing : Wooden case packing
