Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine

Kunshan Dapeng Precision Machinery Co., Ltd.
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine thumbnail-1
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine thumbnail-2
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine thumbnail-3
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine thumbnail-4
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine thumbnail-5
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine photo-1

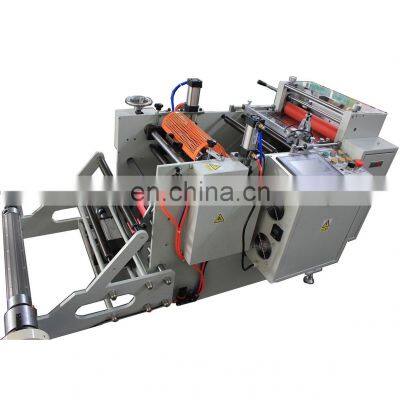

Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine photo-2

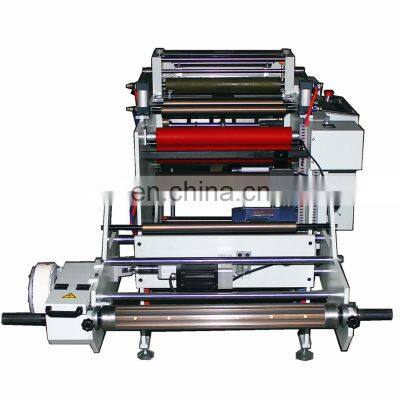

Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine photo-3
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine photo-4
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Specification
item
value
Applicable Industries
Manufacturing Plant, paper cutting machine, printing or packaging company
Showroom Location
None
Condition
New
Type
Paper Cutting Machine
Computerized
No
Place of Origin
China
Jiangsu
DAPENG
110V-240V
181*135*159CM
31kg
Warranty
2 years
Production Capacity
120 cuts/minute
Key Selling Points
High-accuracy
Max. workable width
600mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC
PLC Brand
MITSUBISHI
After-sales Service Provided
Engineers available to service machinery overseas
Max feeding width
600mm
Cutting area
600*mm
Cutting speed
20-120T/M
Postition accuracy
+-0.10mm

Product Overview

This machine adopts man-machine interface + PLC control system and pneumatic ejection device. It can do special cutting with
multiple cuts, half cuts and one cut. The cutting length can be set in 5 different sizes, and different cutting numbers and cycles
can be set. Times, improve cutting efficiency, high precision, less loss, simple operation. Suitable for cutting to size of
conductive cloth, foam, diffusion sheet, reflective film, double-sided tape, nickel sheet, PET, PC, PE insulating
paper,copper/aluminum foil, release paper, various adhesive tapes, etc.
Products Description

Technical parameters:

Item Number
DP-360CQ
DP-500CQ
DP-600CQ
Web Width
0-360mm
0-500mm
0-600mm
Cutting length
0-9999.99mm
0-9999.99mm
0-9999.99mm
Cutting speed
0-130 cut/min
0-130 cut/min
0-130 cut/min
Cutting precision
±0.05mm
±0.05mm
±0.05mm
Voltage
220V/380V
220V/380V
220V/380V
Size
1280*920*1300mm
1280*1150*1070mm
1500*1300*1200mm
Weight
240kg
270kg
320kg
Total Power
1.5kw
1.5kw
1.5kw

*the voltage can customize according to your country standards.


Features:

Taiwan brand servo motor & Japan brand mitsubishi PLC;

Touch screen control panel,easy to operate;

Can preset and adjust the cutting length ,total cutting quantity and speed;

Afer the machine shutting down,it still can remember the amount automatically;

Cutting tolerance can be reach ±0.1mm based on material;


Optional function:
Kiss cut (half-cut)

Hot cutting

Static electricity eliminator

Cutting with position sensor



Application:

Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.

Optional Devices


Kiss cutting

Material:Utility knife and fixture

This unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.


Photo sensor

If added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.



ANTISTATIC SYSTEM

BEFORE AND AFTER THE CUTTING BLADE CAN ADD THE ANTI-STATIC SYSTEM
 ANTI-STATIC SYSTEM  MOTOR
Packing & Delivery
wooden case packing
Company Profile
After Sales Service
  1.  Free sample testing and video for your reference
  2. Prompt delivery whthin 24 hours
  3. One year warranty ,whole life technical support
  4. Free training in our factory available before delivering machines
  5. Engineers available to service machinery overseas
  6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
  7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
BUYING GUIDE

If you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .

MaterialPictures are appreciated if possible
Diameter ID & OD
Thickness mm
Weight KG
Length you want to cut mm
Width mm
