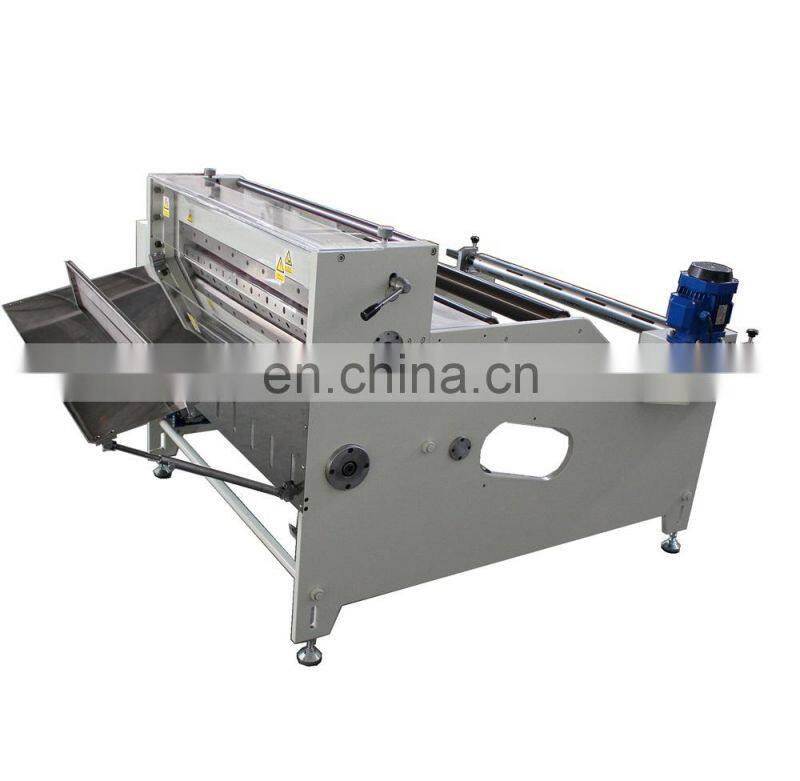

Bitumen Sheet Roll Cutter Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Precision Continuous Paper Cutting Machine
-
Die Slitting Rewinder Printed Film Roll to Sheet Paper Cutting Machine
-
Automatic HDPE Plastic Roll To Sheet Cutting Machine
-
Paper / Label / Foam / PE / PP / PET / PVC / OPP Film Roll to Sheet Cutting Machine
-
PE PP PET PVC OPP Film Roll to Sheet Cutting Machine Paper Sheeter
-
PET PVC PE PP Film Roll to Sheet Cutting Machine
Product Description
Products Description
bitumen sheet roll cutter machine Technical parameters:
Item Number | DP-360CQ | DP-500CQ | DP-600CQ |
Web Width | 0-360mm | 0-500mm | 0-600mm |
Cutting length | 0-9999.99mm | 0-9999.99mm | 0-9999.99mm |
Cutting speed | 0-130 cut/min | 0-130 cut/min | 0-130 cut/min |
Cutting precision | ±0.05mm | ±0.05mm | ±0.05mm |
Voltage | 220V/380V | 220V/380V | 220V/380V |
Size | 1280*920*1300mm | 1280*1150*1070mm | 1500*1300*1200mm |
Weight | 240kg | 270kg | 320kg |
Total Power | 1.5kw | 1.5kw | 1.5kw |
*the voltage can customize according to your country standards.
bitumen sheet roll cutter machine Features:
Taiwan brand servo motor & Japan brand mitsubishi PLC;

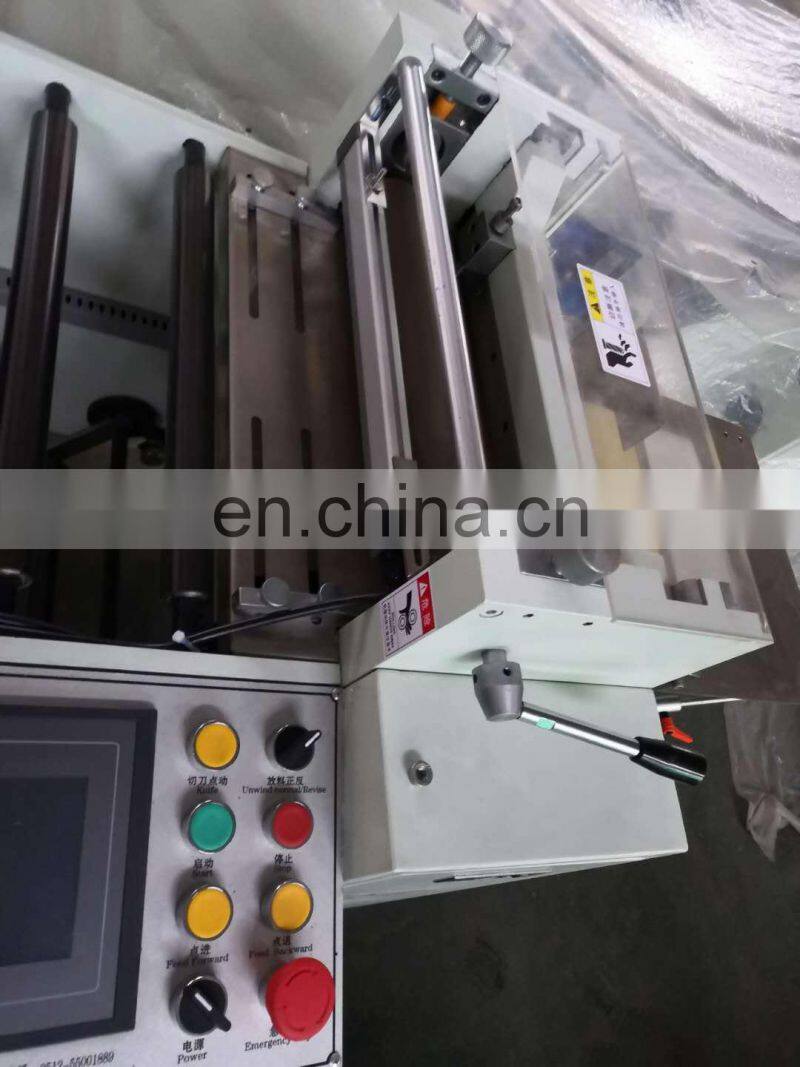

Touch screen control panel,easy to operate;
Can preset and adjust the cutting length ,total cutting quantity and speed;
Afer the machine shutting down,it still can remember the amount automatically;
Cutting tolerance can be reach ±0.1mm based on material;
Optional function:
Kiss cut (half-cut)
Hot cutting
Static electricity eliminator
Cutting with position sensor
bitumen sheet roll cutter machine Application:
Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Optional Devices

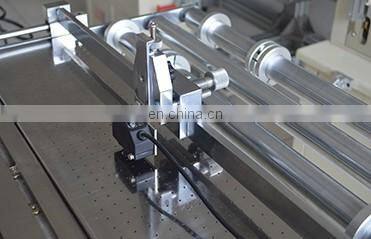

Photo sensor
If added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.
Kiss cutting
Material:Utility knife and fixture
This unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting
well.Easy to adjust and maintain.
This unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting
well.Easy to adjust and maintain.
BEFORE AND AFTER THE CUTTING BLADE CAN ADD THE ANTI-STATIC SYSTEM
ANTI-STATIC SYSTEM MOTOR
ANTISTATIC SYSTEM
ANTISTATIC SYSTEM

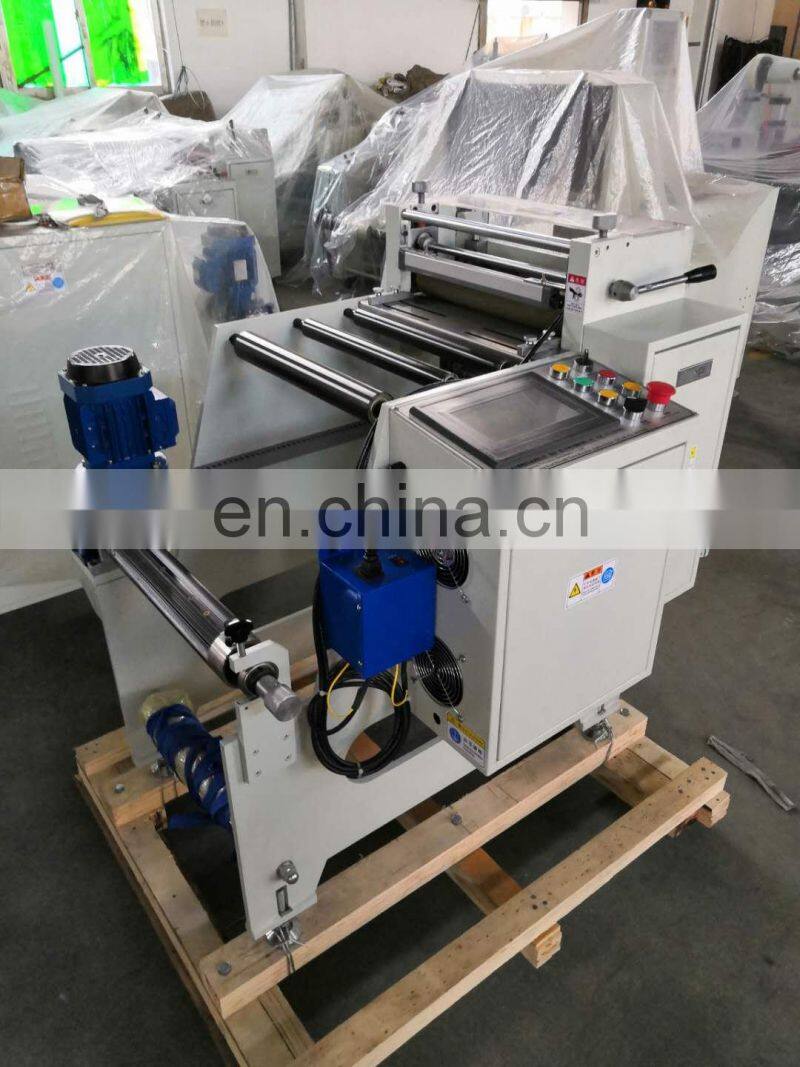

bitumen sheet roll cutter machine
with high quality cutting machine
the machine wall use whole of steel sheet
the guiding roller is chromed surface and hardened aluminum material
the rubber pulling roller also polished surface
After Sales Service
- Free sample testing and video for your reference
- Prompt delivery whthin 24 hours
- One year warranty ,whole life technical support
- Free training in our factory available before delivering machines
- Engineers available to service machinery overseas
- Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
- Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
BUYING GUIDE
If you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .
| Material | Pictures are appreciated if possible |
| Diameter | ID & OD |
| Thickness | mm |
| Weight | KG |
| Length you want to cut | mm |
| Width | mm |
