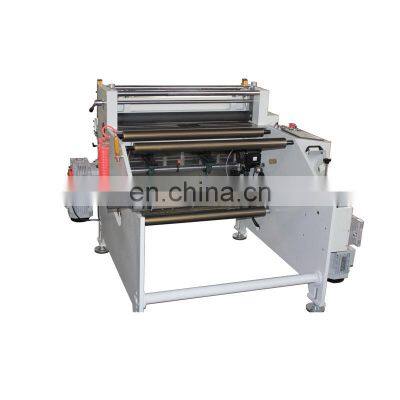

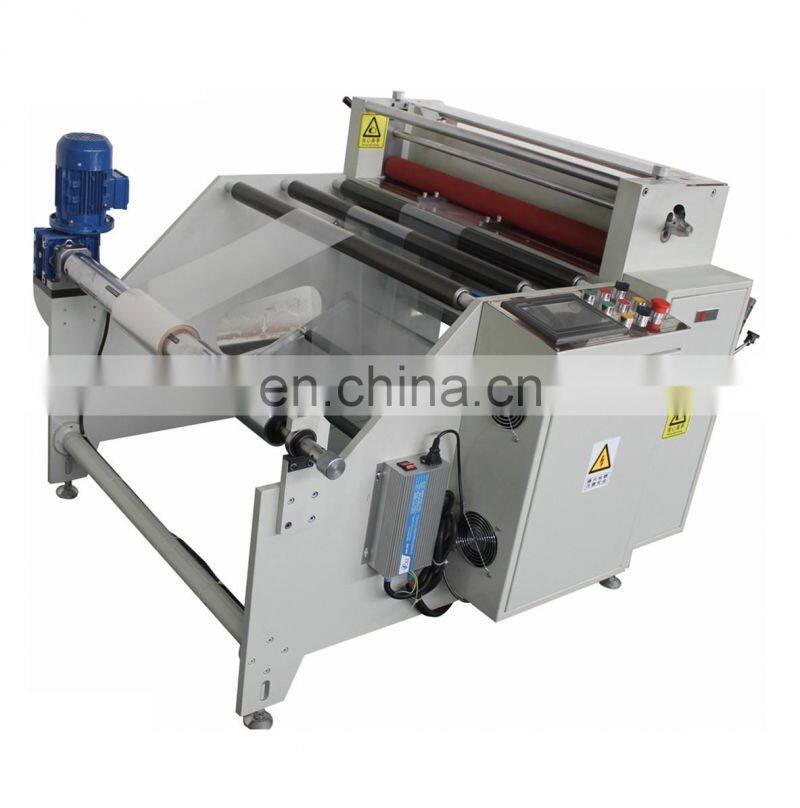

Automatic HDPE Plastic Roll To Sheet Cutting Machine

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Association

Year Established:

2000

Annual Export Value:

US$1.5 Million - US$2.5 Million

Kunshan Dapeng Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

PVC PET Plastic Film Roll to Sheet Cutting Machine Automatic HDPE Plastic Roll To Sheet Cutting Machine

Functional Characteristics:

1.DELTA servo motor pull the material,high precision.

2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.

3.3 inch inflatable shaft for unwinding.

4.20mm thickness steel wall make machine run stable.

5.Pulling roller coat thick PU rubber and won't scratch the material.

6.Polished and anodized aluminum guiding roller,very smooth and never harm the material.

7.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.

8.The unwind shaft can be made as take off.

9.Electrical static eliminator to remove static electricity.

10.Other standard machine:360mm,500mm,600mm,1000mm,1400mm.

Purpose:

This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.

Technical Data:

Model	DP-1000 Automatic HDPE Plastic Roll To Sheet Cutting Machine
Max Feeding Width ( mm )	1000
Max unwind roll diameter(mm )	800
Max unwind roll weight(kg)	50-60
Unwind shaft diameter	3 inch or 6 inch
Cut 600mm speed ( times/minute )	50-80
Total Power	3kw
PLC	MITSUBISHI
Servo Motor Servo Driver	DELTA
Precision ( mm )	±0.10
Voltage	380V 50HZ

Electrical listing:
