Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Automatic Kiss Cutting Machine Half Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bitumen Sheet Roll Cutter MachineNegotiableMOQ: 1 -
Precision Continuous Paper Cutting MachineNegotiableMOQ: 1
-
Die Slitting Rewinder Printed Film Roll to Sheet Paper Cutting MachineNegotiableMOQ: 1
-
Automatic HDPE Plastic Roll To Sheet Cutting MachineNegotiableMOQ: 1
-
Paper / Label / Foam / PE / PP / PET / PVC / OPP Film Roll to Sheet Cutting MachineNegotiableMOQ: 1
Products Description
what kind of material that the machine above can cut and what can we do with this kind of machine ?
This machine employs microcomputer controller to set belt cutting length .It is ergonomically designed and operation is easy.
Sizing cutting for hook and loop fastener , cotton yarn belt , elastic band , plastic belt ,zipper , sleeve ,paper , flat cable
,small wire ,metal film ,etc.
Machine features
1. Max material width: 360mm;
2. Tolerance: 0.05mm, Precision:±0.05mm;
3. Material thickness range: 0.5mm-15mm;
4. Cutting speed:125 cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. A conbination of PLC and servo motor.
8. An air shaft as the loading shaft;
9. Two accessories, static eliminator and conveyor belt, for you to choose
10. Automatic unwinding function;
11. Cutting length is accurate;
12. Operation is easy;
13. Waste rate is low;
14. Diverse functions satisfy your various requirements;
15. We offer superior-quality products and best service for you;
16. As a high-tech manufacturer, we possess veteran engineers and professional sales team;
17. Manufacturing experience: 15 years;
18. Export experience: 10years.
2. Tolerance: 0.05mm, Precision:±0.05mm;
3. Material thickness range: 0.5mm-15mm;
4. Cutting speed:125 cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. A conbination of PLC and servo motor.
8. An air shaft as the loading shaft;
9. Two accessories, static eliminator and conveyor belt, for you to choose
10. Automatic unwinding function;
11. Cutting length is accurate;
12. Operation is easy;
13. Waste rate is low;
14. Diverse functions satisfy your various requirements;
15. We offer superior-quality products and best service for you;
16. As a high-tech manufacturer, we possess veteran engineers and professional sales team;
17. Manufacturing experience: 15 years;
18. Export experience: 10years.
Product Paramenters
Model | Max Feeding Width ( mm ) | Max unwind roll diameter(mm ) | Max unwind roll weight(kg) | Unwind shaft diameter |
DP-360BCQ | 360mm | 600 | 400 | 3 inch |
Cut length 100mm speed ( times/minute ) | Main Engineer Power | Precision ( mm ) | Voltage | rewinding optional |
1-180 | 750w | ±0.10 | 380V 50HZ | yes |

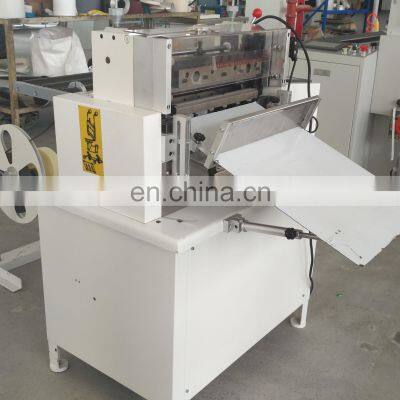

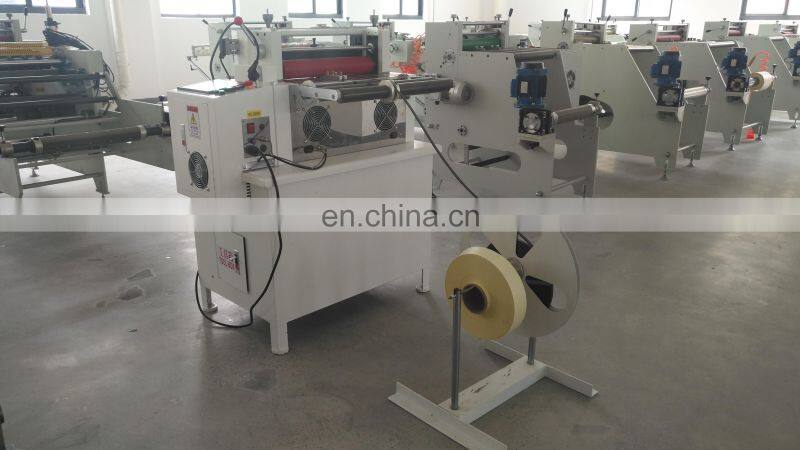

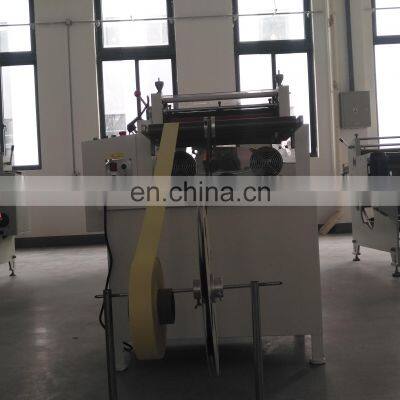

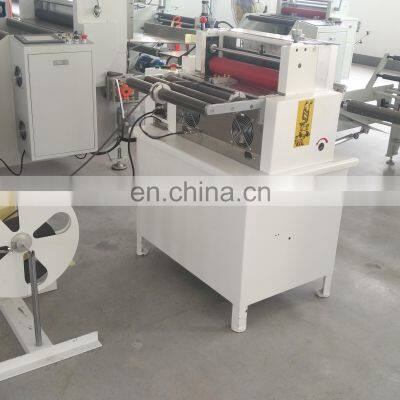

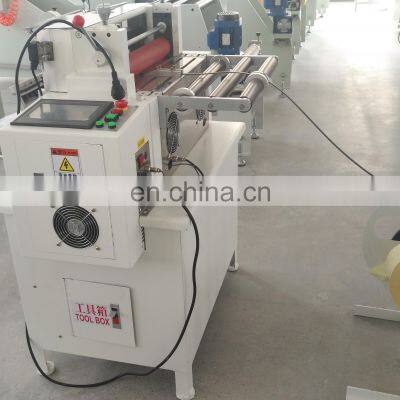

Details Images
Recommend Products
We have other standard machine with 360mm 500mm 800mm 1000mm 1400mm width.
