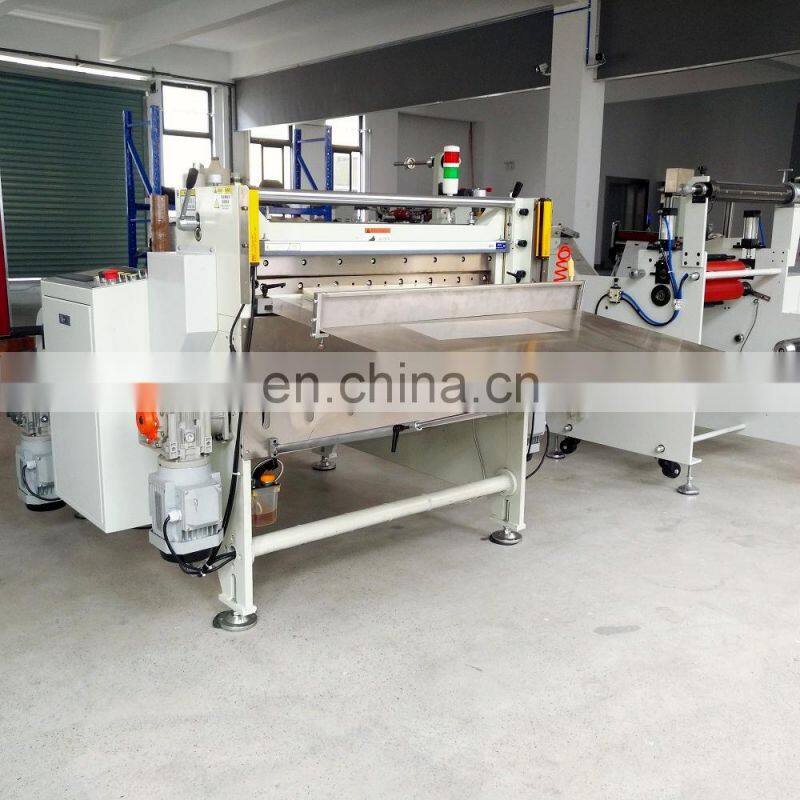

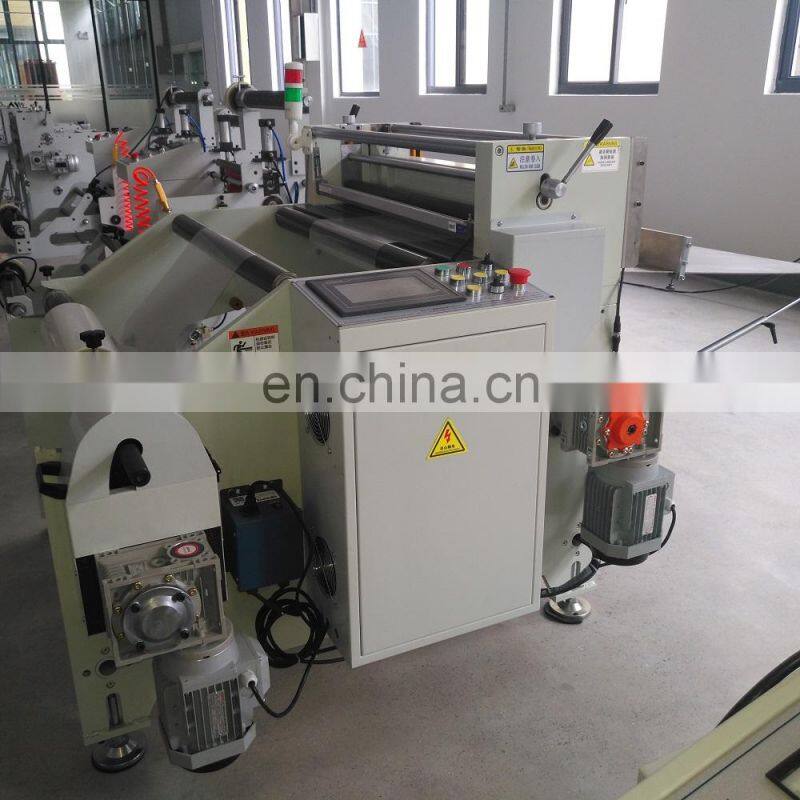

Automatic Computer Control Eva Foam Cutting Machine For Paper and Leather PE OPP Film Plastic Sheet Cutting Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Adhesive foam kiss cutting machine roll to sheet cutter
-
PVC Film Roll to Sheet Cutting Machine cellophane paper cutting machine
-
Automatic kiss cutting machine half cutting machine
-
bitumen sheet roll cutter machine
-
precision continuous paper cutting machine
-
Die Slitting Rewinder printed film roll to sheet Paper Cutting Machine
Product Description
Product Description
Specification
item | value |
Applicable Industries | Automatic Computer Control Eva Foam Cutting Machin |
Showroom Location | Automatic Computer Control Eva Foam Cutting Machine For Paper and Leather PE OPP Film Plastic Sheet Cutting Machine |
Condition | New |
Type | Paper Cutting Machine |
Computerized | Yes |
Place of Origin | China |
Jiangsu | |
Brand Name | DP |
Voltage | 220V |
Dimension(L*W*H) | 1000X800X1000mm |
Weight | 300kg |
Warranty | 12 month for paper cutting cutter |
Production Capacity | 50 m/min |
Key Selling Points | Easy to Operate |
Max. workable width | 1000mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Motor, PLC |
PLC Brand | Schneider, MITSUBISHI, Siemens |
After-sales Service Provided | Engineers available to service machinery overseas |
speed | 110cuts/minuted for paper cutting cutter |
precise | 0.1mm for paper cutting cutter |
Item No | Voltage | Power | Gross weight | Cutting speed |
DP-1000 | 380V 50HZ | 3 KW | 1800kgs | 100m per minute |
Cutting length | Cutting width | STANDARD MACHINE Unit price | Packing size | Shipping Term |
0.1-9999.9mm | 1-1000mm | inquiry 008613732669376 | 2050x1950x1450mm | FOB Shanghai |
Touch Screen | MCGS | Made in Shanghai |
Programmable Controller | MITSUBISHI | Made in Japan |
MITSUBISHIServo Driver | MITSUBISHI | Made in Japan |
JapanServo Motor | Mitsubishi | Made in Japan |
Motor of cutting knife | Tonglee | Made in Taiwan |
AC Contactor | RENMIN | (Shanghai) Made in China |
20A Solid State Relay | Guguang | (Shanghai) Made in China |
Functions :
1, the machine uses microcomputer device, set transverse length, number, volume, etc., with automatic meter.
2, the choice of the central PLC program control and L touch screen operation procedures, Servo motor drives, frequency control.
3, the use of magnetic brakes unwinding tension control, ensuring smooth feeding, consistent tension.
our machine advantage :
Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand MITSUBISHI , which you will easily maintenance in your local place
Machine body ----- 22 mm thickness steel wall , it is very solid that to make sure machine stable when running
and the steel wall is whole steel sheet , not connected together .
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade
----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
, Application:
Sizing cutting for Sand Paper, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil
abrasive paper and all kinds of material in roll form.
1, the machine uses microcomputer device, set transverse length, number, volume, etc., with automatic meter.
2, the choice of the central PLC program control and L touch screen operation procedures, Servo motor drives, frequency control.
3, the use of magnetic brakes unwinding tension control, ensuring smooth feeding, consistent tension.
our machine advantage :
Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand MITSUBISHI , which you will easily maintenance in your local place
Machine body ----- 22 mm thickness steel wall , it is very solid that to make sure machine stable when running
and the steel wall is whole steel sheet , not connected together .
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade
----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge at cutting part
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
, Application:
Sizing cutting for Sand Paper, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil
abrasive paper and all kinds of material in roll form.
Packing & Delivery
wooden case for paper cutting cutter
Company Profile

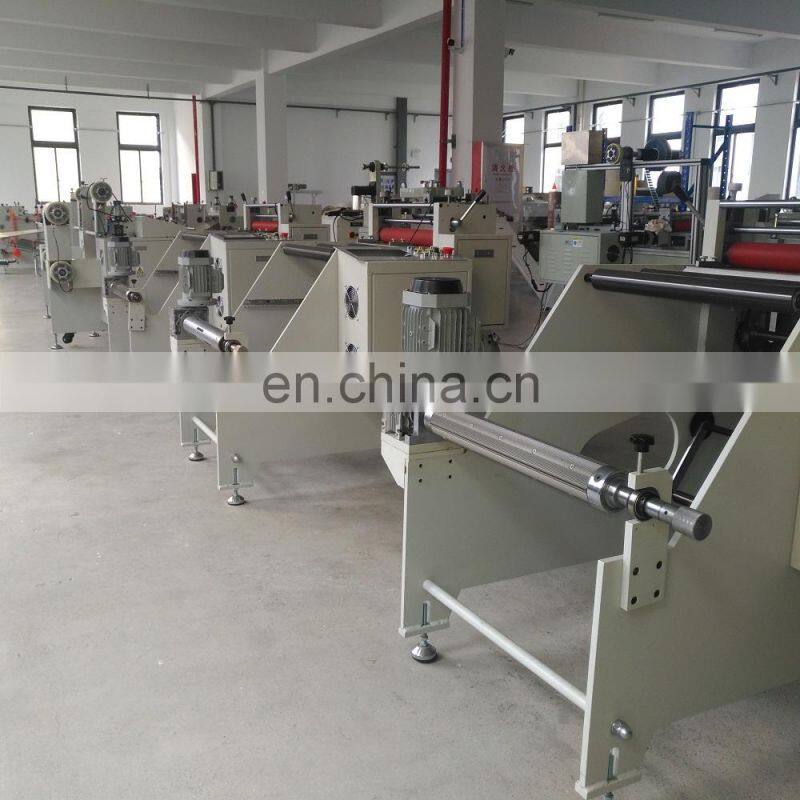

Kunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers.
Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers.
In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
