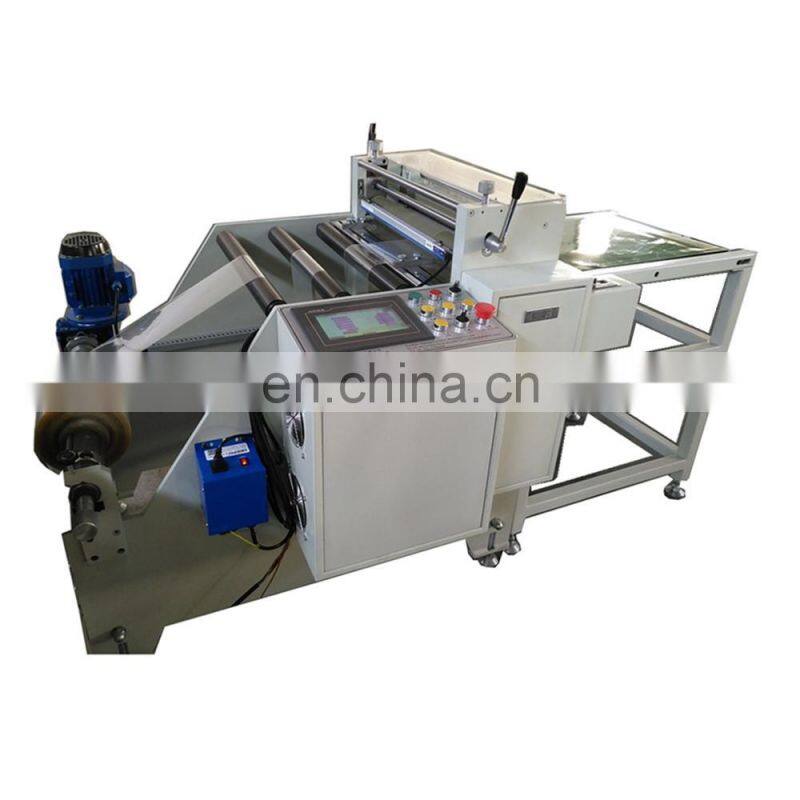

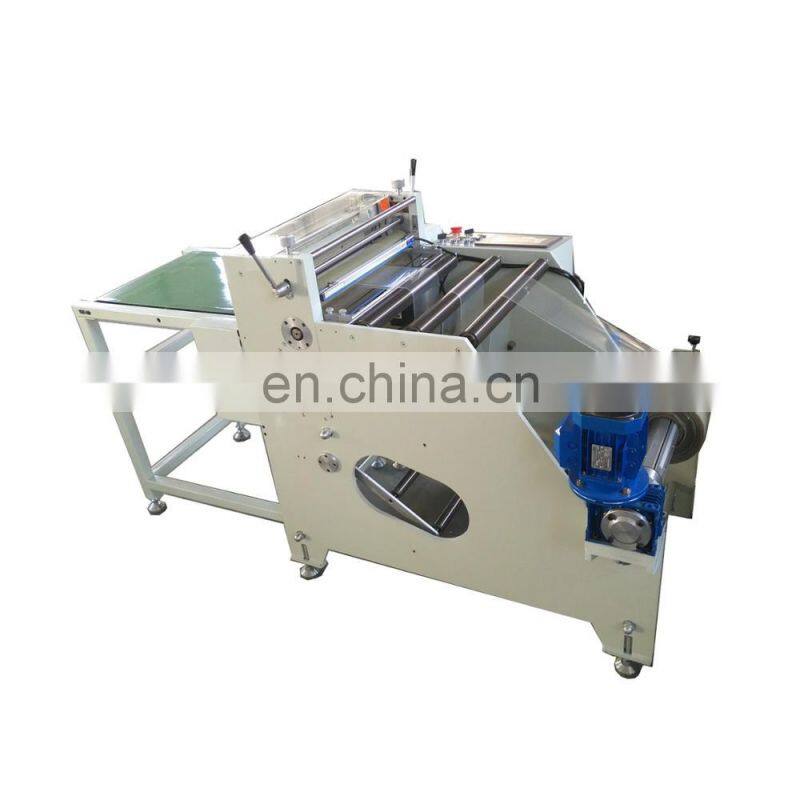

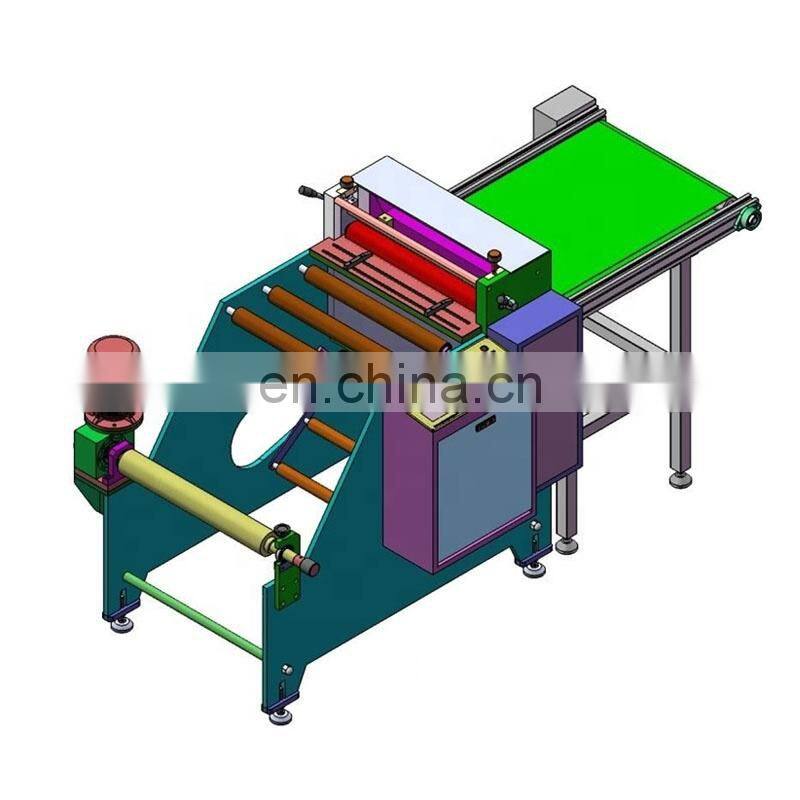

PVC Film Roll to Sheet Cutting Machine Cellophane Paper Cutting Machine

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

PVC Film Roll to Sheet Cutting Machine with Conveyor Belt and Static Eliminator

cellophane paper cutting machine

Functional Characteristics:

1.DELTA servo motor pull the material,high precision.

2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.

3.3 inch inflatable shaft for unwinding.

4.Pulling roller coat thick PU rubber and won't scratch the material.

5.Polished and anodized aluminum guiding roller,very smooth and never harm the material.

6.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.

7.Electrical static eliminator to remove static electricity.

8.With 700mm length conveyor belt.

9.Other standard machine:360mm,600mm,800mm,1000mm,1400mm.

Purpose:

This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.

Technical Data:

Model	DP-500 cellophane paper cutting machine
Max. workable width ( mm )	500
Max. unwind roll diameter(mm )	600
Max. unwind roll weight(kg)	40
Unwind shaft diameter	3 inch or 6 inch
speed ( times/minute )	70 (Cut 320mm)
Total Power	1.5kw
PLC	MITSUBISHI
Servo Motor Servo Driver	DELTA
Precision ( mm )	±0.10
Voltage	380V 50HZ

Electrical listing:
