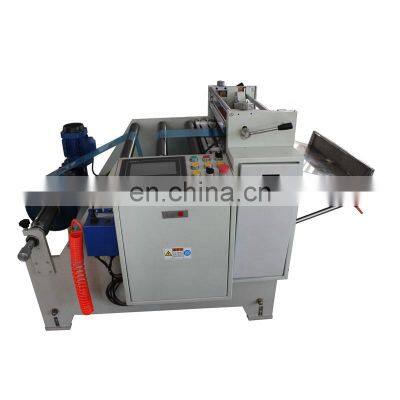

Non Woven Fabric Roll To Sheet Cutting Paper Roll Cutter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Vertical and Horizontal Slitting Machine Microcomputer Feeding Cutting Machine Paper Cutting MachineNegotiableMOQ: 1 -
Automatic Computer Control Eva Foam Cutting Machine For Paper and Leather PE OPP Film Plastic Sheet Cutting MachineNegotiableMOQ: 1
-
Adhesive Foam Kiss Cutting Machine Roll to Sheet CutterNegotiableMOQ: 1
-
PVC Film Roll to Sheet Cutting Machine Cellophane Paper Cutting MachineNegotiableMOQ: 1
-
Automatic Kiss Cutting Machine Half Cutting MachineNegotiableMOQ: 1
Specification
Products Description
Technical parameters:
Item Number |
DP-360CQ |
DP-500CQ |
DP-600CQ |
Web Width |
0-360mm |
0-500mm |
0-600mm |
Cutting length |
0-9999.99mm |
0-9999.99mm |
0-9999.99mm |
Cutting speed |
0-130 cut/min |
0-130 cut/min |
0-130 cut/min |
Cutting precision |
±0.05mm |
±0.05mm |
±0.05mm |
Voltage |
220V/380V |
220V/380V |
220V/380V |
Size |
1280*920*1300mm |
1280*1150*1070mm |
1500*1300*1200mm |
Weight |
240kg |
270kg |
320kg |
Total Power |
1.5kw |
1.5kw |
1.5kw |
*the voltage can customize according to your country standards.
Features:
Taiwan brand servo motor & Japan brand mitsubishi PLC;
Touch screen control panel,easy to operate;
Can preset and adjust the cutting length ,total cutting quantity and speed;
Afer the machine shutting down,it still can remember the amount automatically;
Cutting tolerance can be reach ±0.1mm based on material;
Optional function:
Kiss cut (half-cut)
Hot cutting
Static electricity eliminator
Cutting with position sensor
Application:
Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Optional Devices
Kiss cutting
Material:Utility knife and fixture
This unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.
Photo sensor
If added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.
ANTISTATIC SYSTEM
BEFORE AND AFTER THE CUTTING BLADE CAN ADD THE ANTI-STATIC SYSTEM
ANTI-STATIC SYSTEM MOTOR
After Sales Service
- Free sample testing and video for your reference
- Prompt delivery whthin 24 hours
- One year warranty ,whole life technical support
- Free training in our factory available before delivering machines
- Engineers available to service machinery overseas
- Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
- Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
BUYING GUIDE
If you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .
| Material | Pictures are appreciated if possible |
| Diameter | ID & OD |
| Thickness | mm |
| Weight | KG |
| Length you want to cut | mm |
| Width | mm |
Product Description
Specification
360mm automatic paper roll to sheet cutting machine FUNCTIONAL CHARACTERSTICS This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload. Purpose It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, rubber sheets, electronic tape and various inch setting, entirely broken and partially broken electronic materials. |
||
Item No |
DP-360 |
PRICE shipping term |
(FOB Shanghai) |
Max Feeding Width ( mm ) |
360 |
Main Engineer Power ( w ) |
750 |
Speed ( m/m ) |
120 |
Size ( mm ) |
1150*1100*1120 |
Weight ( kg ) |
350 |
Precision ( mm ) |
±0.10 |
Power |
380V 50HZ |
Shaft diameter |
3 inch / 76mm |
unwinding paper diameter |
600mm max (unwind like below) |
Advantage of machine
DELTA Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand Mitsubishi which you will easily maintenance in your local place
Machine body ----- 16mm thickness steel wall for 360mm , it is very solid that to make sure machine stable when
running
it is whole part of steel sheets , not welding together
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge
at cutting part
Korea company made
Cutting motor ------------- Taiwan Tonglee gear motor
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
12 month electronic parts guarantee after machine arrived your place
machine are use famous brand of electric parts which are easy to maintenance
DELTA Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand Mitsubishi which you will easily maintenance in your local place
Machine body ----- 16mm thickness steel wall for 360mm , it is very solid that to make sure machine stable when
running
it is whole part of steel sheets , not welding together
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge
at cutting part
Korea company made
Cutting motor ------------- Taiwan Tonglee gear motor
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
12 month electronic parts guarantee after machine arrived your place
machine are use famous brand of electric parts which are easy to maintenance
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
BUYING GUIDE
1, material name : |
|
2, material roll diameter : |
|
3, material roll width : |
|
4, material roll weight : |
|
5, maximum and minimum length required to cut |
