Cotton Laboratory Rotor Spinning Machine with Touch Screen
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

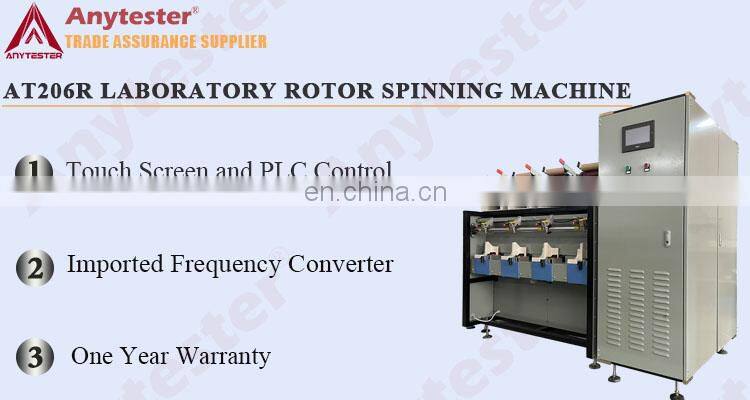

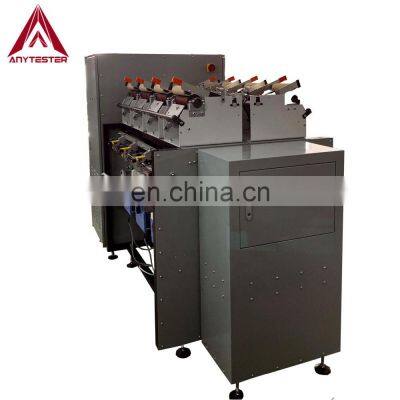

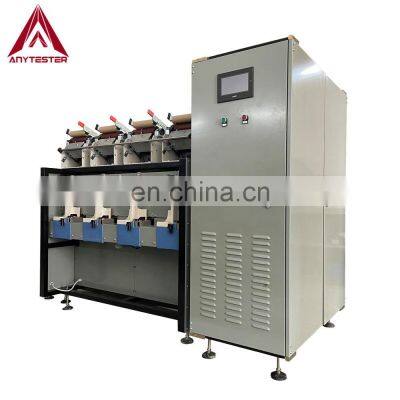

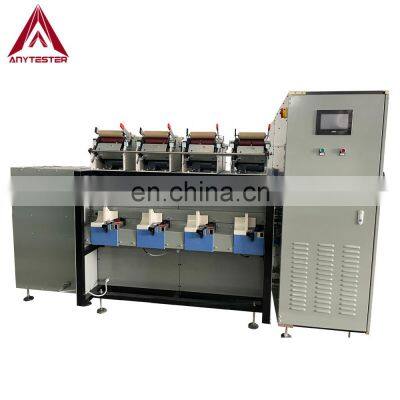

AT206R Laboratory Rotor Spinning Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to convert fiber into yarn.
Specification
Model | AT206R |
Spindle number | 1, 2, 3, 4 or customized |
Fiber type | Cotton |
Revolving cup speed | 30000rpm |
Combing roller | 6000rpm |
Drafting range | 30 ~ 250 |
Coiling speed | 20 ~ 110m/min |
Fiber length | 22 ~ 42 mm |
Output capacity | 0.25 ~ 1 kg per hour or customized |
Power | 220V/380V, 50/60Hz, 640W |
Dimension | 800*600*1700mm |
Details & Features
★ It adopts touch screen and PLC control.
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
