Manufacture Lab Synthetic Fiber Melt Spinning Machine With CE CERTIFICATE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 1 Spendle Yarn Winding Machine Factory PriceNegotiableMOQ: 1 -
Double-side Vertical Type Pirn Winding Machine With Touch ScreenNegotiableMOQ: 1
-
Mini Size Customized Wet Spinning Machine With Independent Control Chinese ManufacturerNegotiableMOQ: 1
-
Factory Price Cotton Yarn Open End Rotor Spinning MachineNegotiableMOQ: 1
-
AATCC High Quality Touch Screen Rotawash Color Fastness TesterNegotiableMOQ: 1
Product Description

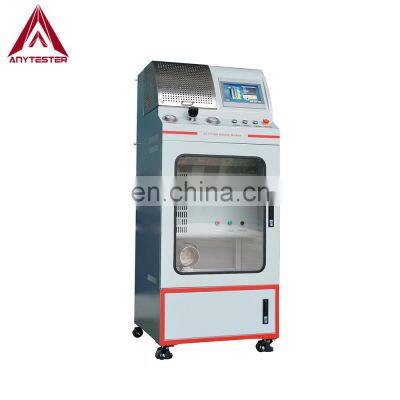

AT225 Laboratory Melt Spinning Machine is a main key equipment in synthetic fiber production. This machine uses high temperature copper ring block to heat and melt the polymer sample, and extrudes the sample to be liquid trickle from a spinneret under the effect of inert gas (N2) pressure to produce the nascent fiber.
Specification
Model |
AT225 |
Pressure range |
Max. 2MPa (can extend to 3.6Mpa)
Input pressure: ≤13MPa, Output pressure: ≤1.5MPa
accuracy: ±0.01MPa
|
Temperature range |
Max. 350℃ |
Temperature accuracy |
±0.5℃ |
Heating mode |
Three heating sections with copper ring block to heat
Mullite fiber insulation
|
Temperature control mode |
Three independent temperature controlling with the accuracy of ±0.5℃ |
Feed cylinder |
500ml, stainless steel, with soaking distribution device |
Spinneret plate |
Dia. 0.15~0.5mm
L: D: 2:1~3:1
1~20 spinneret holes
(please specify before order)
|
Winding system |
|
Winding roller drive mode |
Motor-driven |
Speed range |
0~1400rpm, adjustable |
Winding roller diameter |
¢200mm, can be customized |
Max. Winding dia. |
¢320mm (including ¢200mm winding roller) |
Power supply |
AC220V, 50Hz |
Dimensions |
870mm×1310mm×1860mm (D×W×H) |
Weights |
Approx. 320kg |
Details
★ Stable inert gas pressure system (gas source should be prepared by the user himself);

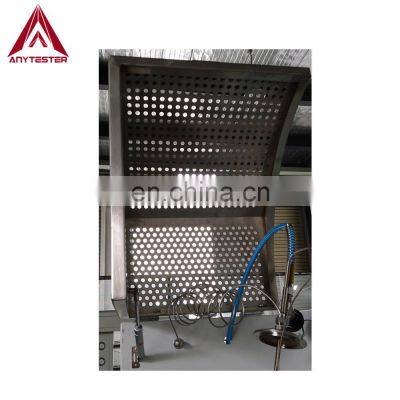

★ Metal protective hood with air leg;

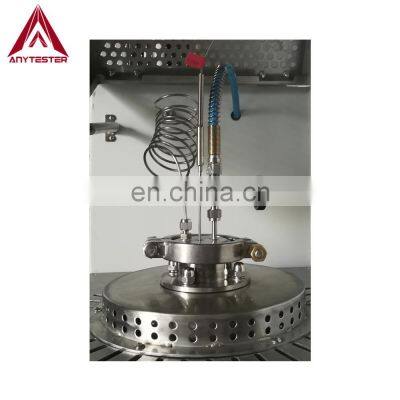

★ Three heating zones with copper ring block to heat;
★ Cooling fan with adjustable speed;
★ Hand wheel to adjust the position of winding drum;
★ With emergency stop and heat on/off button;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging |
||
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
Payment Term
|
T/T
|
EXW |
30% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
|||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd
|
||||
West Union |
|||||
Delivery Time |
7~10days after receiving payment for one container |
||||
