Double-side Vertical Type Pirn Winding Machine With Touch Screen

Anytester (hefei) Co., Ltd.
Double-side Vertical Type Pirn Winding Machine With Touch Screen thumbnail-1
Double-side Vertical Type Pirn Winding Machine With Touch Screen thumbnail-2
Double-side Vertical Type Pirn Winding Machine With Touch Screen photo-1
Double-side Vertical Type Pirn Winding Machine With Touch Screen photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

AT209C Pirn Winding Machine is intelligent vertical pirn winding machine, an necessary equipment in preparation for shuttle weaving. It is used to wind yarn from bobbin onto pirn for shuttle loom. It is applicable to various yarns, such as pure cotton, polyester cotton, ramie and so on.
Specification
Model
AT209C
Type
Double-side
Number of spindles
12, 28, 60, 92, 124, 156, 188, 220, 252, 284, 316
Spindle gauge
70mm
Spindle speed
2560~3800r/min, adjustable
Max. winding diameter
¢32mm
Max. winding height
205mm
Power supply
AC380V 50Hz, three-phase
Dimensions for 156 spindles
6220×760×1950(L×W×H)
Weight for 156 spindles
1.8T
Details & Features

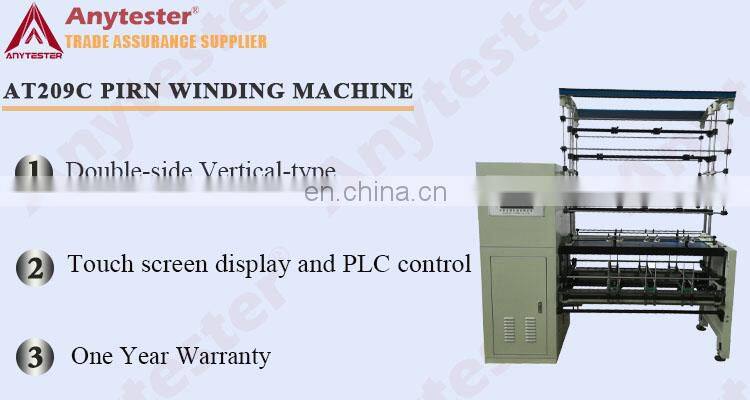

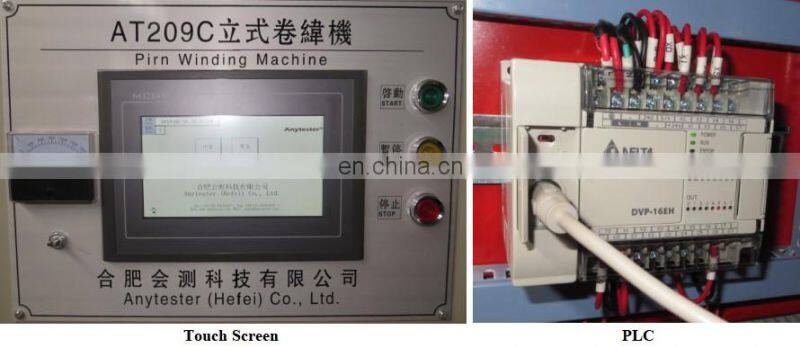

1. Double-side vertical-type; 2. Touch screen display and PLC control;

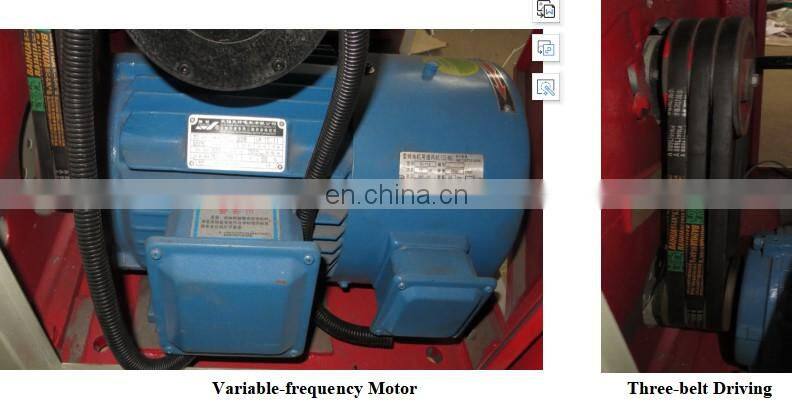

3. Adjustable winding speed with variable-frequency motor control and three-belt driving;

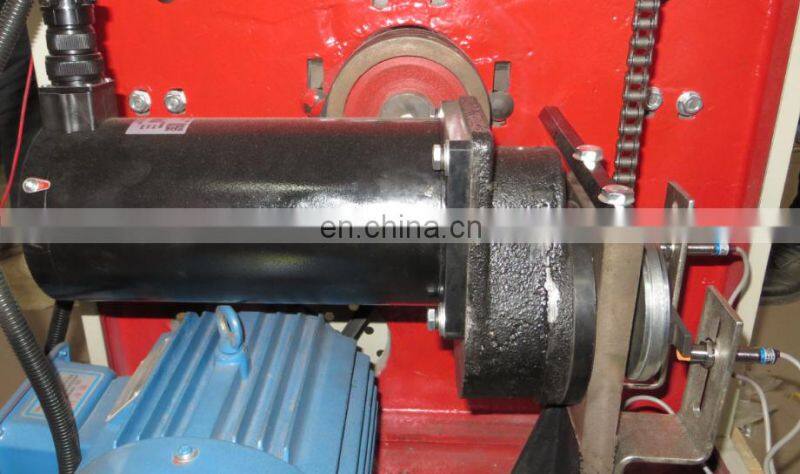

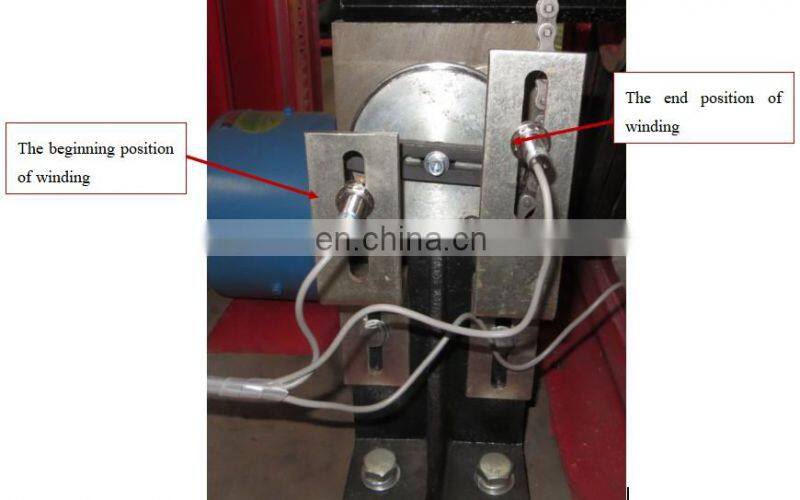

4. Stepping motor to control the winding stroke and the beginning and end positon of winding is adjustable
Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery
Packaging
Dimensions
720×360×1450mm
Weight
85kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
