Mini Size Customized Wet Spinning Machine With Independent Control Chinese Manufacturer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price Cotton Yarn Open End Rotor Spinning MachineNegotiableMOQ: 1 -
AATCC High Quality Touch Screen Rotawash Color Fastness TesterNegotiableMOQ: 1
-
Lab Scale Melt Spinning Machine Accessories Graphene GasketNegotiableMOQ: 1
-
Chinese Factory Price Mini Drawing Frame Machine With Touch ScreenNegotiableMOQ: 1
-
China Manufacturer Fiber Cotton Roving Machine With Touch ScreenNegotiableMOQ: 1
Product Description

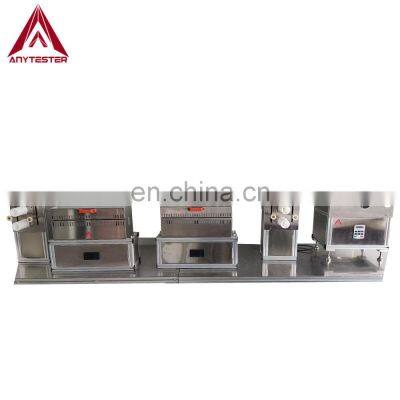

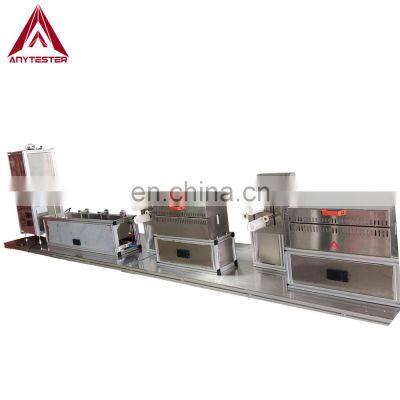

AT235 Bench-top Wet Spinning Machine is used for the production of polymers that need to be dissolved in a solvent to be spun. It is specially designed for researching new material in the field of textile, macromolecule and other material. It consists of pressure vessel, metering pump, gooseneck, spinneret, coagulating bath, conveying rollers, air-heating device, conveying, washing bath, slow drawing rolls and thermal-setting device, fast drawing rolls and winding device.
Specification
Model | AT235 | ||
Spinning solution tank | 1L or customized 316L stainless steel Rapid-mount cover With Nitrogen inlet port and vent port | ||
Sample volume | 200~ 600ml or customized | ||
Dosing pump flow rate | 0.66CC/rev | ||
Dosing pump power | 180W | ||
Dosing pump reducer | 1:59 | ||
Gooseneck material | 316L stainless steel | ||
No. of spinneret | 1 | ||
Spinneret nut | 100 holes, hole dia.: 0.07mm Material: tantalum | ||
Coagulating bath | Inner size | 1000×160×160mm (L×W×H) | |
Material | 316L stainless steel | ||
Drawing roller | Material | Nylon | |
Size | Ø50×80mm | ||
Reducer | 1:5 | ||
Motor power | 120W | ||
Roller speed | 3~40m/min adjustable | ||
Heating bath | Type | non-contact | |
Length | 400mm | ||
Heating power | 250W | ||
Temp. range | Room temperature~150℃ | ||
Sensor | PT100 | ||
Setting bath | Type | non-contact | |
Length | (400×2)mm | ||
Heating power | 250W×2 | ||
Temp. range | Room temperature~150℃ | ||
Sensor | PT100 | ||
Winder | Speed | 3~40m/min | |
Size | Ø95×80mm | ||
Transverse displacement | 60mm | ||
The Whole line length | 4200mm | ||
Power supply | AC220 50Hz, single-phase | ||
Details & Features

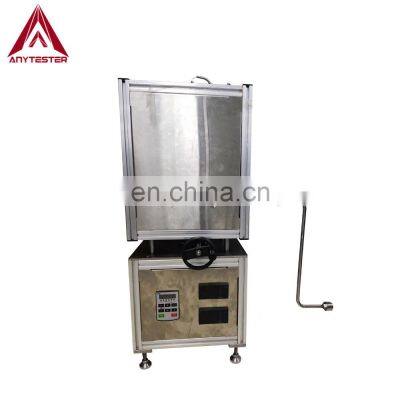

★ Pressure vessel for holding pre-mixed polymere/solvent mixture with manual lifting platform to move it with dosing pump, gooseneck and spinneret up or down together;
★ Cover of pressure vessel with a connection for inert gas feed and a safety pressure valve;
★ A mixture circulation driven stirrer for pressure vessel is optional;
★ 316L stainless steel gooseneck and coagulating bath;
★ Coagulating bath with two filament pressing rollers and optional heating system;
★ Optional heating system for coagulating bath;
★ Heating slot adopts non-touch air heating;
★ One winding position take-up winder;
★ A potentiometer to adjust starting winding speed and tension controller;
★ Adjustable yarn spacing by travers motion speed;
★ Nylon drafting rollers with adjustable rotation speed;
★ The whole line adopt quick joint connecting, it’s easy to assemble;
★ It can simulate the whole process;
★ Mini size, save space;
