Fabrics Automatic Air-jet Sample Loom for Laboratory Use
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12inches Fabrics Automatic Rapier Sample Loom for CustomizedNegotiableMOQ: 1 -
Electronic Digital Crockmeter With 16mm Diameter Test FingerNegotiableMOQ: 1
-
Manual Type Crockmeter for Color FastnessNegotiableMOQ: 1
-
ASTM D4966 Martindale Abrasion and Pilling Tester With 4 Working PositionNegotiableMOQ: 1
-
Fabric Pick Counter for Laboratory UseNegotiableMOQ: 1
Product Description

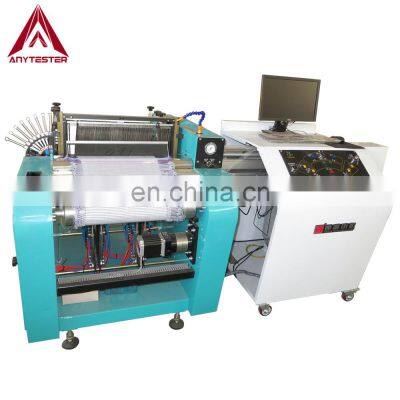

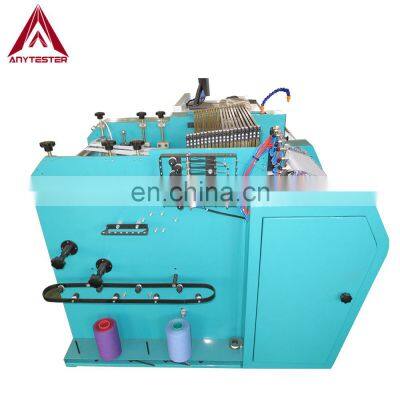

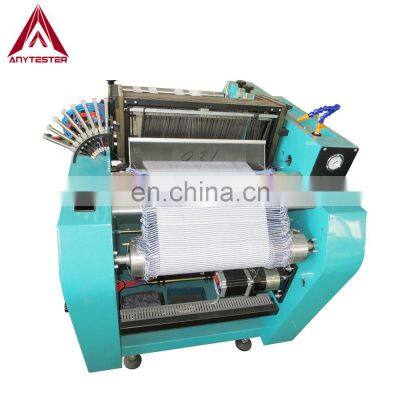

AT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Specification
Model |
AT247 |
Reed width |
12inches (16, 20 and 24 inch, optional) |
Yarn linear density range |
5~500tex |
Weft density |
30~45weft/min, selectable |
No. of heald frame |
4~20 |
Color selection |
1 color |
Let-off |
Active electronic control |
Take-up |
Motor control |
Shedding |
Dobby shedding, pneumatic control |
Beating-up |
Motor control |
Air pressure |
0.45~0.8Mpa |
Air consumption |
Max. 500L/min |
Power |
A220V 50Hz, single-phase
AC380V 50Hz, three-phase
|
Details & Features
★ Consists of control part (computerized control platform) and mechanical part (loom);
★Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;
★Mechanical let-off, beating-up and take-up and pneumatic shedding;
★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★Heald frames up to 20pcs, easy to mount and dismount;
★Professional software for designing or editing patterns;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging |
||
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
Payment Term
|
T/T
|
EXW |
30% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
|||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd
|
||||
West Union |
|||||
Delivery Time |
7~10days after receiving payment for one container |
||||
