Product Description

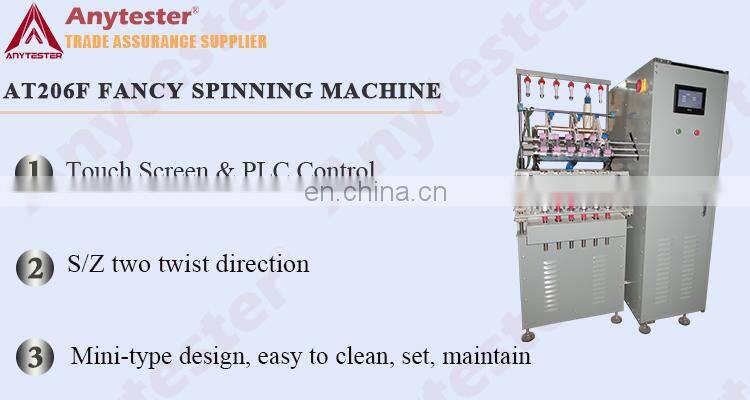

AT206F Fancy Spinning Machine is used to spin fancy yarns of change in color or structure (such as, slub yarn, variable twist yarn or core yarn) by modifying draft ratio or twist.
Specification
Model | AT206F |
Control mode | Touch screen & PLC control |
Suitable fiber type | Cotton or cotton-type fibers |
Fiber length | 21~42mm |
Output capacity | 0.25~0.5kg/h |
Linear density of yarn | 6~99tex |
Spindle gauge | 70mm |
Number of spindles | 6, 8,12 |
Ring diameter | 42mm |
Pressure mode | Pendulum arm for cotton spinning |
Draft system | Three-roll-up & three-roll down |
Draft ratio | 2~50 |
Diameter of drafting rolls | 25mm |
Distance between front &middle rolls | 44~73mm |
Distance between middle & back rolls | 47~48mm |
Spindle length | 205mm |
Twist range | 200~2000T/m, adjustable |
Spindle speed | Maximum 12000rpm |
Power supply | AC220V 50Hz, single-phase |
Details & Features
1. Mini machine, save researching cost and easy to operate and maintain;
2. Touch screen & PLC control;
3. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
4. Independent controlling of core-adding roll and front/middle/back rolls;
5. Mini-type design, easy to clean, set and maintain
6. S/Z two twist direction;
